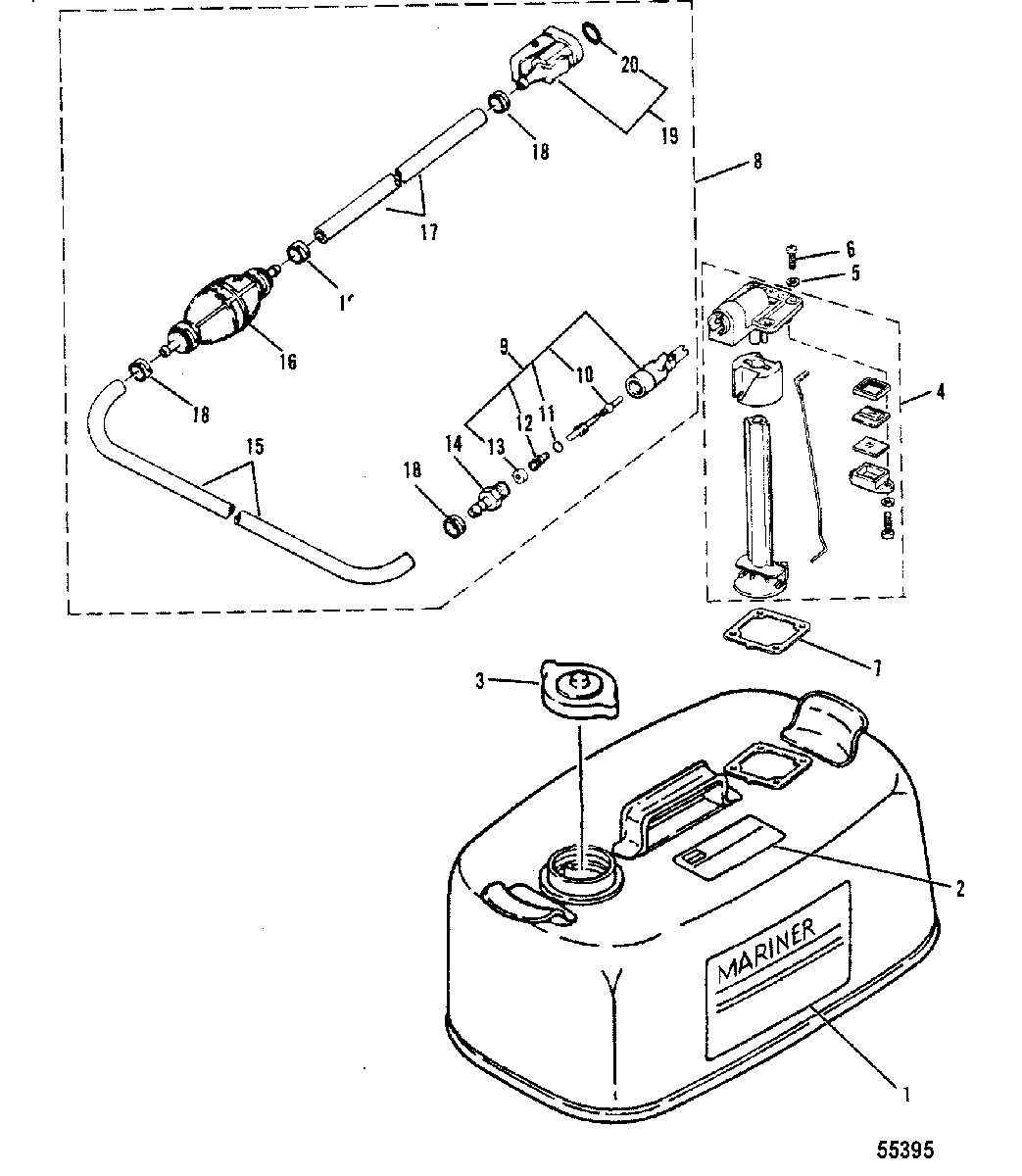

FUEL TANK AND FUEL LINE ASSEMBLY для Mariner - 20C (THRU PROP. EXHAUST) 6A9-010112 & Up
-
№АртикулНазвание
-
137-14617M DECAL, SIDE (ENGLISH)DECAL, SIDE (ENGLISH)
-
137-95504M DECAL, SIDE (FRENCH)DECAL, SIDE (FRENCH)
-
237-95489M DECAL, TOP (ENGLISH)DECAL, TOP (ENGLISH)
-
237-95503M DECAL, TOP (FRENCH)DECAL, TOP (FRENCH)
-
336-18962M CAP, Fuel Tank
SN# 00012380 THRU 09999999CAP, Fuel Tank
SN# 00012380 THRU 09999999 -
336-18962M CAP, Fuel Tank
SN# 00000000 THRU 00012379CAP, Fuel Tank
SN# 00000000 THRU 00012379 -
495499M METER ASSEMBLY, FuelMETER ASSEMBLY, Fuel
-
512-95501M SEALSEAL
-
610-95502M SCREWSCREW
-
727-95500M GASKET, FUEL METER ASS'YGASKET, FUEL METER ASS'Y
-
832-877681Q8 LINE ASSEMBLY, FuelLINE ASSEMBLY, Fuel
-
930185Q3 BAYONET BODY ASSEMBLYBAYONET BODY ASSEMBLY
-
1030185Q3 STEM, BAYONET BODYSTEM, BAYONET BODY
-
1125-16524 O-RING, BAYONET BODY STEMO-RING, BAYONET BODY STEM
-
1224-30189 SPRING, BAYONET BODY ASS'YSPRING, BAYONET BODY ASS'Y
-
1330188 WASHER, CAPWASHER, CAP
-
1422-63187 FITTING, Barb (.250-18), FUEL LINEFITTING, Barb (.250-18), FUEL LINE
-
1532-94727M HOSE, CONNECTOR HOUSING TO BULB
SN# 00012380 THRU 09999999HOSE, CONNECTOR HOUSING TO BULB
SN# 00012380 THRU 09999999 -
1532-94727M HOSE, CONNECTOR HOUSING TO BULB
SN# 00000000 THRU 00012379HOSE, CONNECTOR HOUSING TO BULB
SN# 00000000 THRU 00012379 -
1689396Q01 BULB, Fuel Primer, PRIMER
SN# 00012380 THRU 09999999BULB, Fuel Primer, PRIMER
SN# 00012380 THRU 09999999 -
1689396Q01 PRIMER BULB, PRIMER
SN# 00000000 THRU 00102379PRIMER BULB, PRIMER
SN# 00000000 THRU 00102379 -
1732-94727M HOSE, BULB TO ENGINE CONNECTOR
SN# 00012380 THRU 09999999HOSE, BULB TO ENGINE CONNECTOR
SN# 00012380 THRU 09999999 -
1732-94727M HOSE, BULT TO ENGINE CONNECTOR
SN# 00000000 THRU 00012379HOSE, BULT TO ENGINE CONNECTOR
SN# 00000000 THRU 00012379 -
1854-16725M CLAMP, HOSECLAMP, HOSE
-
1922-14213Q CONNECTOR, Fuel, ENGINE END
SN# 00012380 THRU 09999999CONNECTOR, Fuel, ENGINE END
SN# 00012380 THRU 09999999 -
1922-14213Q HOUSING ASSEMBLY, ENGINE END
SN# 00000000 THRU 00012379HOUSING ASSEMBLY, ENGINE END
SN# 00000000 THRU 00012379 -
2025-82789M O-RINGO-RING
