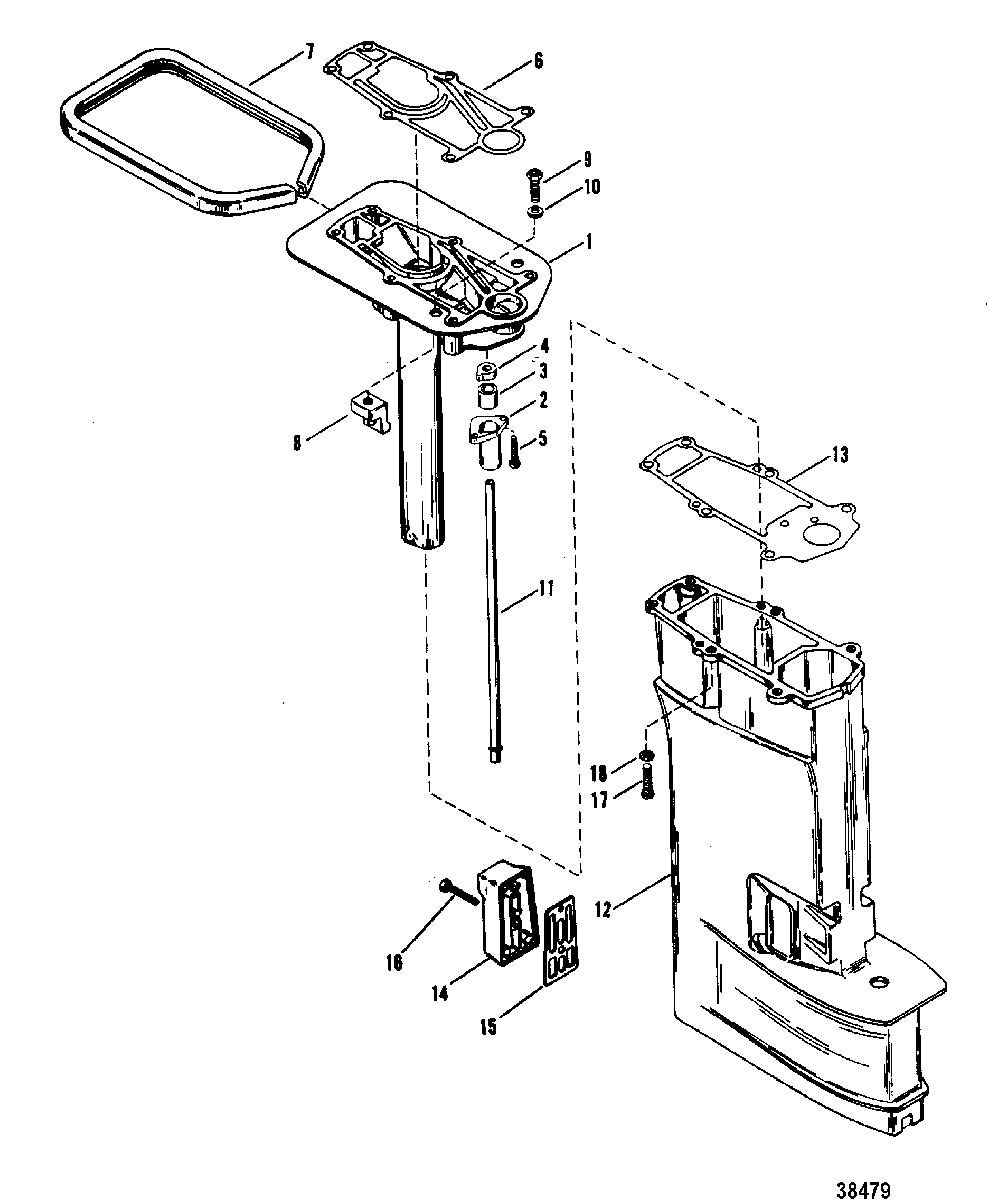

DRIVESHAFT HOUSING ASSEMBLY для Mariner - 20XD (2 CYL.) 6443973 THRU 0B238463
-
№АртикулНазвание
-
199702A3 ADAPTOR PLATE ASSEMBLY
(18)ADAPTOR PLATE ASSEMBLY
(18) -
199702A7 ADAPTOR PLATE ASSEMBLY
(20/25)ADAPTOR PLATE ASSEMBLY
(20/25) -
296248A1 HOUSING ASSEMBLY, WATER TUBEHOUSING ASSEMBLY, WATER TUBE
-
326-25329 SEAL, WATER TUBESEAL, WATER TUBE
-
423-889715 SPACER, WATER TUBESPACER, WATER TUBE
-
510-400035 SCREW, (M5 x 16), HOUSING TO ADAPTOR PLATESCREW, (M5 x 16), HOUSING TO ADAPTOR PLATE
-
627-41670006 GASKET, ADAPTOR PLATEGASKET, ADAPTOR PLATE
-
7158662 SEAL, Adaptor PlateSEAL, Adaptor Plate
-
841211 BRACKET, UPPER MOUNTBRACKET, UPPER MOUNT
-
910-40007128 SCREW, (M6 x 20), UPPER MOUNT BRACKETSCREW, (M6 x 20), UPPER MOUNT BRACKET
-
1012-29245 WASHER, (.281 x .500 x .060) Stainless Steel, UPPER MOUNT BRACKETWASHER, (.281 x .500 x .060) Stainless Steel, UPPER MOUNT BRACKET
-
1132-85116 TUBE, Water
(SHORT SHAFT)TUBE, Water
(SHORT SHAFT) -
1132-86292 TUBE, Water
(LONG SHAFT)TUBE, Water
(LONG SHAFT) -
121588-9097T5 HOUSING ASSEMBLY, Driveshaft
(SHORT SHAFT)(MERCURY)HOUSING ASSEMBLY, Driveshaft
(SHORT SHAFT)(MERCURY) -
121588-9098T5 HOUSING ASSEMBLY, Driveshaft
(LONG SHAFT)(MERCURY)HOUSING ASSEMBLY, Driveshaft
(LONG SHAFT)(MERCURY) -
121588-9097T6 HOUSING ASSEMBLY, Driveshaft
(SHORT SHAFT)(MARINER)HOUSING ASSEMBLY, Driveshaft
(SHORT SHAFT)(MARINER) -
121588-9098T5 HOUSING ASSEMBLY, Driveshaft
(LONG SHAFT)(MARINER)HOUSING ASSEMBLY, Driveshaft
(LONG SHAFT)(MARINER) -
1327-433374 GASKET, DRIVERSHAFT HOUSINGGASKET, DRIVERSHAFT HOUSING
-
1414534 COVER, IDLE RELIEFCOVER, IDLE RELIEF
-
1527-14621 GASKET, COVERGASKET, COVER
-
1610-14742 SCREW, (.250-20 x 1.25), COVERSCREW, (.250-20 x 1.25), COVER
-
1710-1993870 SCREW, DRIVE SHAFT HOUSING TO PLATE (60MM)SCREW, DRIVE SHAFT HOUSING TO PLATE (60MM)
-
1812-4002317 WASHER, DRIVE SHAFT HOUSING SCREWWASHER, DRIVE SHAFT HOUSING SCREW
-
-27-41499A88 GASKET SETGASKET SET
