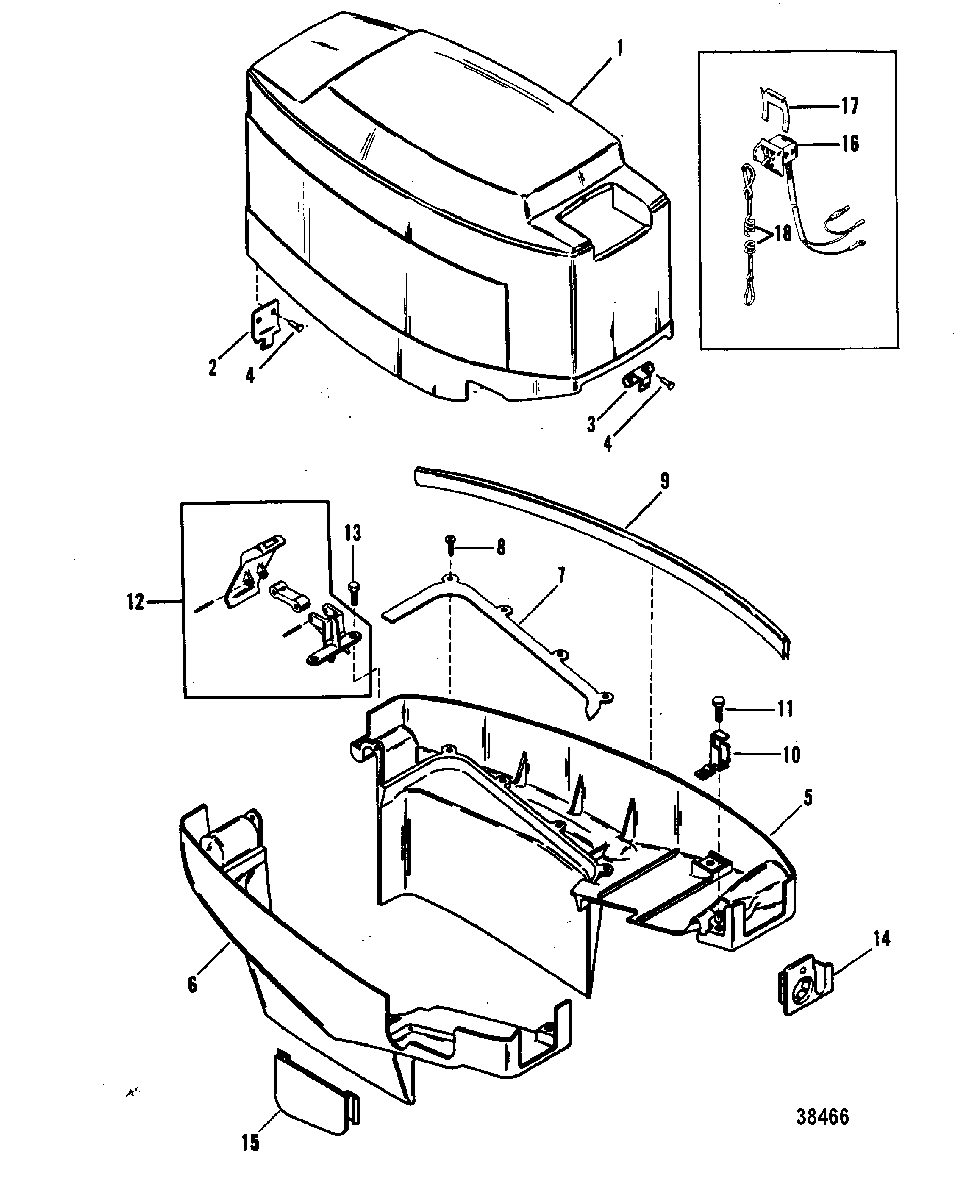

COWLS(MERCURY) для Mariner - 20XD (2 CYL.) 7209533 THRU 0A730006
-
№АртикулНазвание
-
12190-9163A22 TOP COWL ASSEMBLYTOP COWL ASSEMBLY
-
243515 HINGE, COWL LATCHHINGE, COWL LATCH
-
343555 BRACKET, TOP COWLBRACKET, TOP COWL
-
410-400018 SCREW, (M5 x 12), HINGE TO TOP COWLSCREW, (M5 x 12), HINGE TO TOP COWL
-
52176-9107A2 BOTTOM COWL ASSEMBLY, PORTBOTTOM COWL ASSEMBLY, PORT
-
62176-9108A1 BOTTOM COWL ASSEMBLY, STARBOARDBOTTOM COWL ASSEMBLY, STARBOARD
-
715865 PLATE, BOTTOM COWLPLATE, BOTTOM COWL
-
810-95700 SCREW, (#10-16 x .500), PLATE TO BOTTOM COWLSCREW, (#10-16 x .500), PLATE TO BOTTOM COWL
-
915067A1 SEAL, BOTTOM COWLSEAL, BOTTOM COWL
-
1043514 LATCH, BOTTOM COWLLATCH, BOTTOM COWL
-
1110-400018 SCREW, (M5 x 12), LATCH TO BOTTOM COWLSCREW, (M5 x 12), LATCH TO BOTTOM COWL
-
1243554A5 LATCH, COWL-REARLATCH, COWL-REAR
-
1310-400018 SCREW, (M5 x 12), BRACKET TO BOTTOM COWLSCREW, (M5 x 12), BRACKET TO BOTTOM COWL
-
1411281 COVER, FUEL INLETCOVER, FUEL INLET
-
1525-41604 PLATE, BOTTOM COWL
(WITHOUT STOP SWITCH)PLATE, BOTTOM COWL
(WITHOUT STOP SWITCH) -
1525-416041 PLATE, BOTTOM COWL
(WITH STOP SWITCH)PLATE, BOTTOM COWL
(WITH STOP SWITCH) -
1687-11083A6 SWITCH ASSEMBLY, StopSWITCH ASSEMBLY, Stop
-
178M0032846 RETANER, STOP SWITCHRETANER, STOP SWITCH
-
188M0092850 LANYARD ASSEMBLYLANYARD ASSEMBLY
