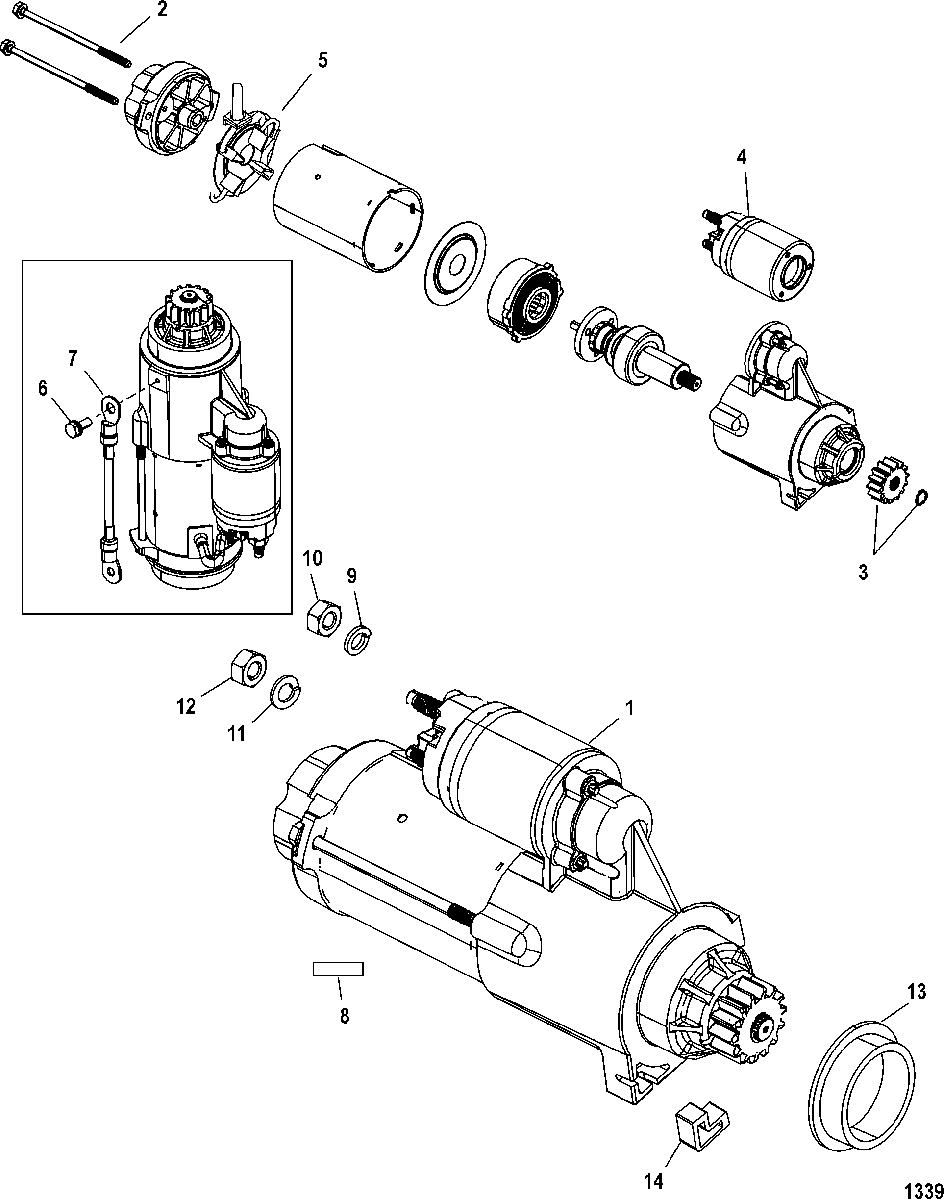

Starter Motor для Mariner - 225 (DFI) 3.0L 0T801000 THRU 1B417701
-
№АртикулНазвание
-
150-892339T01 STARTER MOTOR ASSEMBLY
SN# 0T960098 & BelowSTARTER MOTOR ASSEMBLY
SN# 0T960098 & Below -
150-892339T01 STARTER MOTOR ASSEMBLY
SN# 0T960099 & UpSTARTER MOTOR ASSEMBLY
SN# 0T960099 & Up -
210-803005 THRU BOLTTHRU BOLT
-
343-880805A1 GEAR KITGEAR KIT
-
4809463A1 SOLENOID KITSOLENOID KIT
-
510-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless SteelSCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
-
684-93388A1 CABLE ASSEMBLY, (6.00 Inches) BlackCABLE ASSEMBLY, (6.00 Inches) Black
-
737-8272822 DECAL, Warning, High VoltageDECAL, Warning, High Voltage
-
7NSS NOT SOLD SEPARATE, Decal-Warning-High VoltageNOT SOLD SEPARATE, Decal-Warning-High Voltage
-
813-400255 LOCKWASHER, (M5)LOCKWASHER, (M5)
-
911-400211 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
1013-26993 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
1111-400213 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
1223-8M0034918 COLLARCOLLAR
-
138M0043276 STOPSTOP
