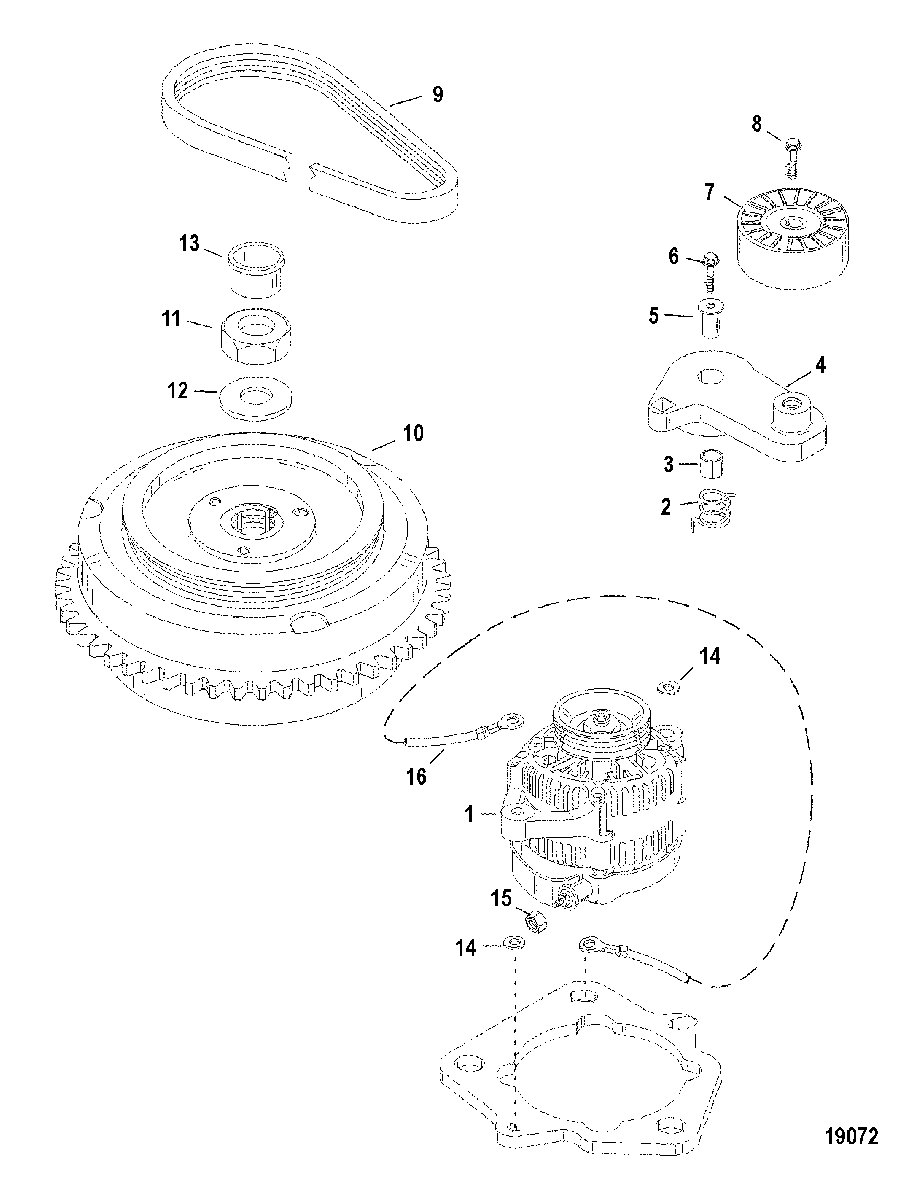

Flywheel/Alternator для Mariner - 225 (DFI) 0G760300 THRU 0G960499
-
№АртикулНазвание
-
18M0064020 ALTERNATORALTERNATOR
-
224-8523742 SPRINGSPRING
-
323-42139 BUSHINGBUSHING
-
4850291T3 BELT TENSIONERBELT TENSIONER
-
523-8525622 BUSHINGBUSHING
-
610-4007180 SCREW, (M10 x 45)SCREW, (M10 x 45)
-
78M6005030 PULLEYPULLEY
-
810-4010835 SCREW, (M10 x 35) Hex Flange - Stainless SteelSCREW, (M10 x 35) Hex Flange - Stainless Steel
-
957-828507Q01 BELTBELT
-
10283-850293T2 FLYWHEELFLYWHEEL
-
1111-42979 NUT, (M16)NUT, (M16)
-
1212-33001 WASHER, (.641 x 1.250 x .190)WASHER, (.641 x 1.250 x .190)
-
1319-45907 PLUG, YellowPLUG, Yellow
-
1412-4002319 WASHERWASHER
-
1511-401386 NUT, (M6)NUT, (M6)
-
1684-88807A45 CABLE ASSEMBLYCABLE ASSEMBLY
