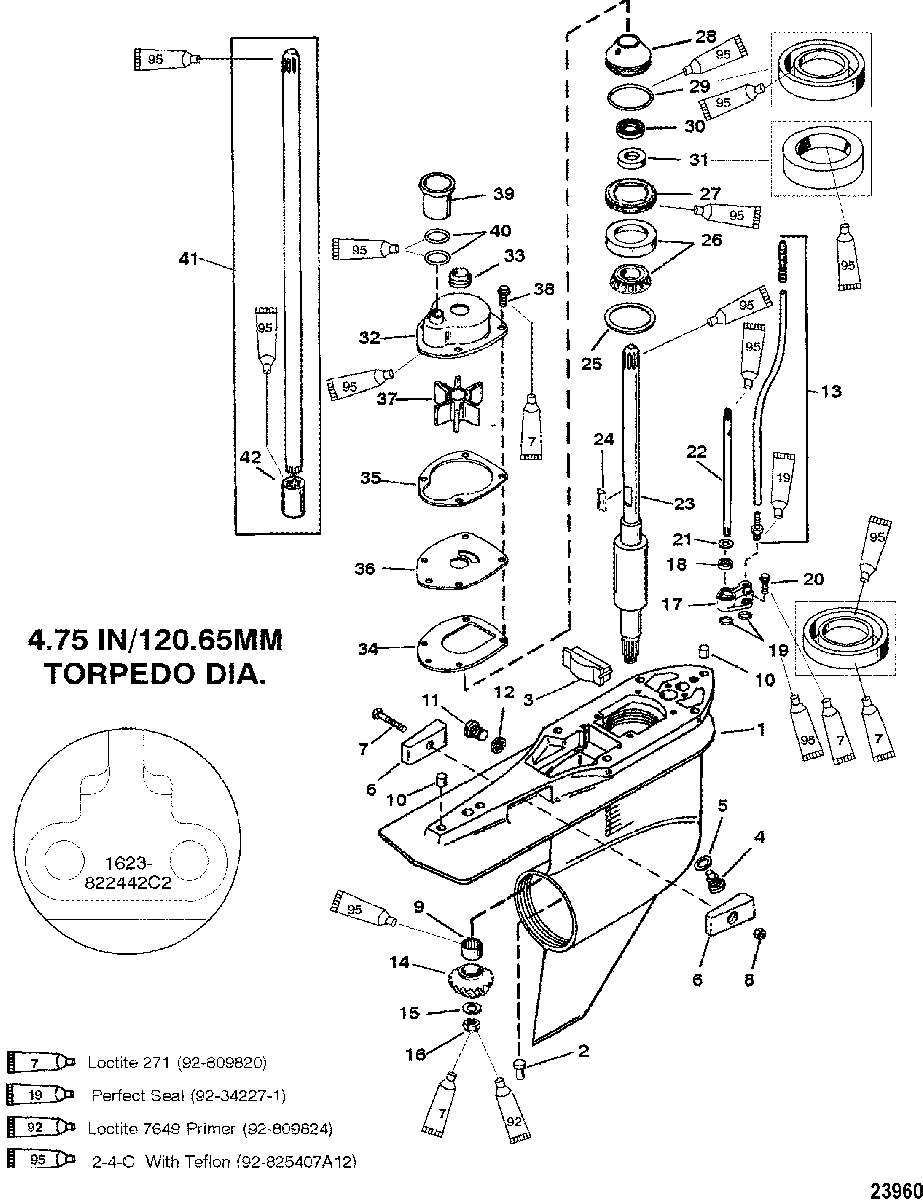

G/HSG, DRIVE-STD/COUNTER-0G437999 AND BELOW-1623-822442C2 для Mariner - 225 MARATHON (3.0L CARB) 0G245605 THRU 0G760299
-
№АртикулНазвание
-
11623-822442A25 GEAR HOUSING ASSEMBLY, Basic - BlackGEAR HOUSING ASSEMBLY, Basic - Black
-
11623-822442A26 GEAR HOUSING ASSEMBLY, Basic - GrayGEAR HOUSING ASSEMBLY, Basic - Gray
-
217-379721 PINPIN
-
3821526001 FILLER BLOCKFILLER BLOCK
-
422-8M0058389 FITTING KIT, Magnetic, Plug Fill/DrainFITTING KIT, Magnetic, Plug Fill/Drain
-
512-191833 WASHER, FiberWASHER, Fiber
-
697-826134Q ANODEANODE
-
710-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
811-401386 NUT, (M6)NUT, (M6)
-
931-42647A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
1017-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
1110-79953Q04 SCREW KIT, (.375-16 x .250)SCREW KIT, (.375-16 x .250)
-
1212-191833 WASHER, FiberWASHER, Fiber
-
1322-85822A10 CONNECTOR ASSEMBLY
(LONG/X-LONG)CONNECTOR ASSEMBLY
(LONG/X-LONG) -
1322-85822A6 CONNECTOR
(XX-LONG)CONNECTOR
(XX-LONG) -
14NSS NOT SOLD SEPARATE, Pinion Gear (PART OF 43-826181A2 or 43-826287A1)
(1.75:1 GEAR RATIO - 12/21NOT SOLD SEPARATE, Pinion Gear (PART OF 43-826181A2 or 43-826287A1)
(1.75:1 GEAR RATIO - 12/21 -
14NSS NOT SOLD SEPARATE, Pinion Gear(PART OF 43-828072A2 or 43-828289A3)
(1.62:1 GEAR RATIO - 13/21NOT SOLD SEPARATE, Pinion Gear(PART OF 43-828072A2 or 43-828289A3)
(1.62:1 GEAR RATIO - 13/21 -
14NSS NOT SOLD SEPARATE, Pinion Gear (Part of 43-812975A5)
(1.64:1 GEAR RATIO - 17/28)(COUNTER ROTATION)NOT SOLD SEPARATE, Pinion Gear (Part of 43-812975A5)
(1.64:1 GEAR RATIO - 17/28)(COUNTER ROTATION) -
1512-92721 WASHERWASHER
-
1611-35921 NUT, (.625-18)NUT, (.625-18)
-
1723-815921A4 BUSHING ASSEMBLYBUSHING ASSEMBLY
-
1826-8164641 SEAL, OilSEAL, Oil
-
1925-36318 O-RING, (.799)O-RING, (.799)
-
2010-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
2112-77674 WASHERWASHER
-
22824145 SHIFT SHAFT (LOWER)SHIFT SHAFT (LOWER)
-
2345-8M0140442 DRIVESHAFT (LOWER)DRIVESHAFT (LOWER)
-
2428-8M0032833 KEYKEY
-
2515-8M0063267 SHIM SETSHIM SET
-
2631-36387A1 BEARING, RollerBEARING, Roller
-
278245191 RETAINERRETAINER
-
28807929A1 CARRIER ASSEMBLYCARRIER ASSEMBLY
-
2925-896523 O-RING, (2.175 x .175)O-RING, (2.175 x .175)
-
3026-16977 SEAL, OilSEAL, Oil
-
3126-89238 SEAL, OilSEAL, Oil
-
32817275A1 PUMP ASSEMBLY, WaterPUMP ASSEMBLY, Water
-
3326-816575A2 SEAL KITSEAL KIT
-
3427-430331 GASKETGASKET
-
3527-8172771 GASKETGASKET
-
368172761 FACEPLATEFACEPLATE
-
3747-43026T2 IMPELLERIMPELLER
-
3810-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
39816597A1 COUPLING ASSEMBLYCOUPLING ASSEMBLY
-
4025-21836 O-RING, (.796 x .139)O-RING, (.796 x .139)
-
4145-827754A1 EXTENSION KIT, Driveshaft
(LONG-20 IN.) 13 SPLINESEXTENSION KIT, Driveshaft
(LONG-20 IN.) 13 SPLINES -
4145-827755A1 EXTENSION KIT, Driveshaft
(X-LONG-25 IN.) 13 SPLINESEXTENSION KIT, Driveshaft
(X-LONG-25 IN.) 13 SPLINES -
4145-826353A1 EXTENSION KIT, Driveshaft
(XX-LONG-30 IN.) 13 SPLINESEXTENSION KIT, Driveshaft
(XX-LONG-30 IN.) 13 SPLINES -
4145-824114A1 EXTENSION KIT, Driveshaft
(LONG-20 IN.) 8 SPLINESEXTENSION KIT, Driveshaft
(LONG-20 IN.) 8 SPLINES -
4145-823901A1 EXTENSION KIT, Driveshaft
(X-LONG-25 IN.) 8 SPLINESEXTENSION KIT, Driveshaft
(X-LONG-25 IN.) 8 SPLINES -
4145-824115A1 EXTENSION KIT, Driveshaft
(XX-LONG-30 IN.) 8 SPLINESEXTENSION KIT, Driveshaft
(XX-LONG-30 IN.) 8 SPLINES -
42823902 COUPLINGCOUPLING
-
-26-816575A5 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
-
-817275A6 REPAIR KIT, Water PumpREPAIR KIT, Water Pump
