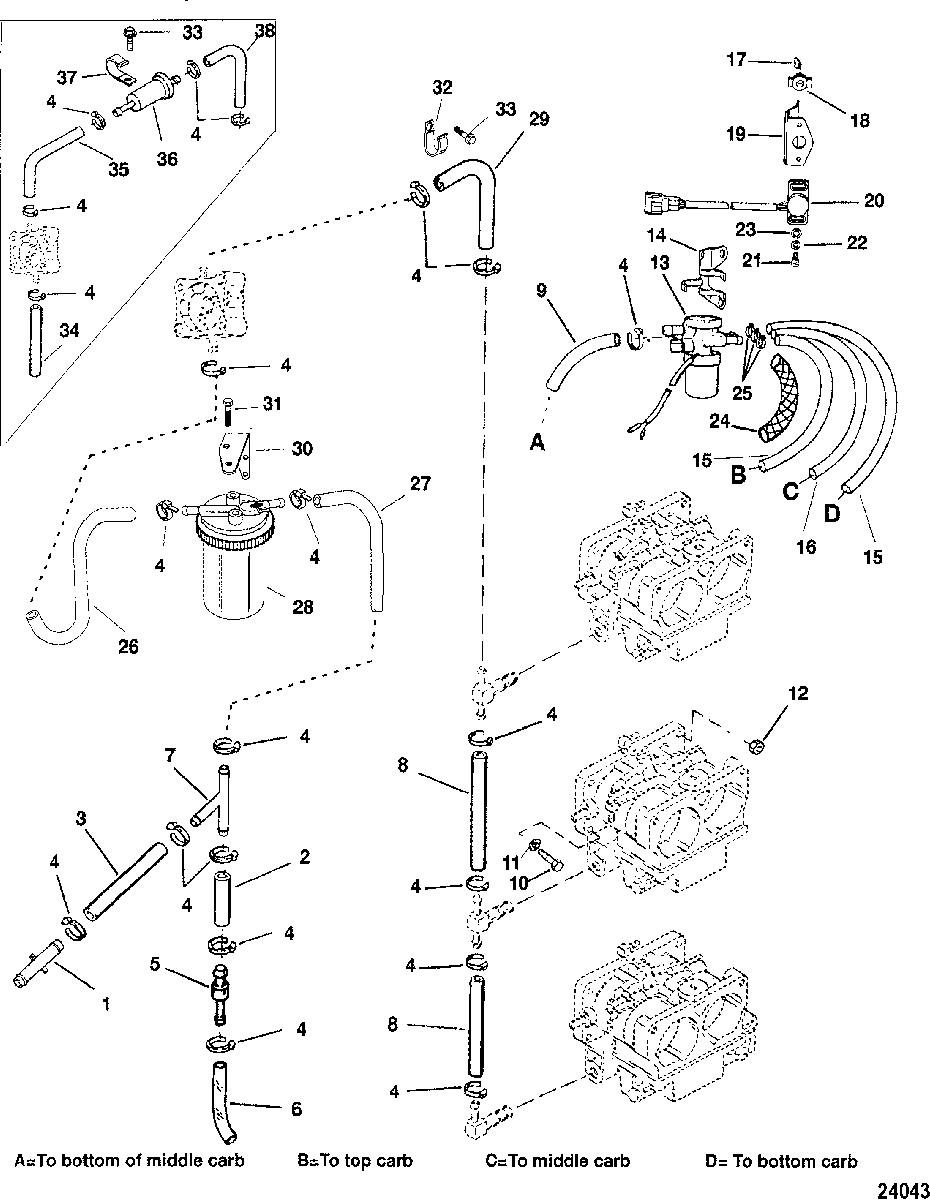

FUEL LINES(OIL INJECTION) для Mariner - 225 MARATHON (3.0L CARB) 0G760300 THRU 0T408999
-
№АртикулНазвание
-
122-822769 CONNECTORCONNECTOR
-
232-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (1-1/2 IN.)TUBING, (.312) (70.00 Inches Bulk) (1-1/2 IN.)
-
332-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (13-1/2 IN.)TUBING, (.312) (70.00 Inches Bulk) (13-1/2 IN.)
-
454-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
522-8189941 CHECK VALVECHECK VALVE
-
632-82381335 TUBING, (15.00 Inches Bulk) (6 IN.)TUBING, (15.00 Inches Bulk) (6 IN.)
-
722-818992 CONNECTORCONNECTOR
-
832-8M0108355 HOSE, (57.00 Inches Bulk) (5 IN.)HOSE, (57.00 Inches Bulk) (5 IN.)
-
932-8M0108355 HOSE, (57.00 Inches Bulk) (4-1/2 IN.)HOSE, (57.00 Inches Bulk) (4-1/2 IN.)
-
1010-4008820 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
1113-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
1211-401386 NUT, (M6)NUT, (M6)
-
13822528T SOLENOID VALVESOLENOID VALVE
-
148224931 BRACKETBRACKET
-
1532-9912878 HOSE, (.187) (26.00 Inches Bulk) (8-3/4 IN.)HOSE, (.187) (26.00 Inches Bulk) (8-3/4 IN.)
-
1632-9912878 HOSE, (.187) (26.00 Inches Bulk) (6 IN.)HOSE, (.187) (26.00 Inches Bulk) (6 IN.)
-
1728-89694 KEYKEY
-
18821153 COUPLINGCOUPLING
-
198212021 BRACKET, SensorBRACKET, Sensor
-
20821664 SENSOR, Throttle Position (TPI)SENSOR, Throttle Position (TPI)
-
2110-4005685 SCREW, (M4 x 10)SCREW, (M4 x 10)
-
2212-30164 WASHER, (.192 x .375 x .0312) Stainless SteelWASHER, (.192 x .375 x .0312) Stainless Steel
-
2313-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
2423-82459612 OVERSLEEVEOVERSLEEVE
-
2556762 TIE STRAP, (4.00 Inches)TIE STRAP, (4.00 Inches)
-
2632-830770 HOSE (OUTLET)
SN# 0G960500 & UpHOSE (OUTLET)
SN# 0G960500 & Up -
2732-830769 HOSE (INLET)(8-1/4IN.)
SN# 0G960500 & UpHOSE (INLET)(8-1/4IN.)
SN# 0G960500 & Up -
2835-826634T01 FILTER, Fuel
SN# 0G960500 & UpFILTER, Fuel
SN# 0G960500 & Up -
2932-8M0108355 HOSE, (57.00 Inches Bulk) (16 IN.)
SN# 0G960500 & UpHOSE, (57.00 Inches Bulk) (16 IN.)
SN# 0G960500 & Up -
30826635 BRACKET
SN# 0G960500 & UpBRACKET
SN# 0G960500 & Up -
3110-82130012 SCREW, (M6 x 12)
SN# 0G960500 & UpSCREW, (M6 x 12)
SN# 0G960500 & Up -
3254-859172 CLAMP
SN# 0G960500 & UpCLAMP
SN# 0G960500 & Up -
3310-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
3432-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (4 IN.)
SN# 0G960499 & BelowTUBING, (.312) (70.00 Inches Bulk) (4 IN.)
SN# 0G960499 & Below -
3532-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (7 IN.)
SN# 0G960499 & BelowTUBING, (.312) (70.00 Inches Bulk) (7 IN.)
SN# 0G960499 & Below -
3635-816296Q2 FILTER, Fuel
SN# 0G960499 & BelowFILTER, Fuel
SN# 0G960499 & Below -
3754-49542 CLAMP
SN# 0G960499 & BelowCLAMP
SN# 0G960499 & Below -
3832-8M0108355 HOSE, (57.00 Inches Bulk) (6-1/2 IN.)
SN# 0G960499 & BelowHOSE, (57.00 Inches Bulk) (6-1/2 IN.)
SN# 0G960499 & Below
