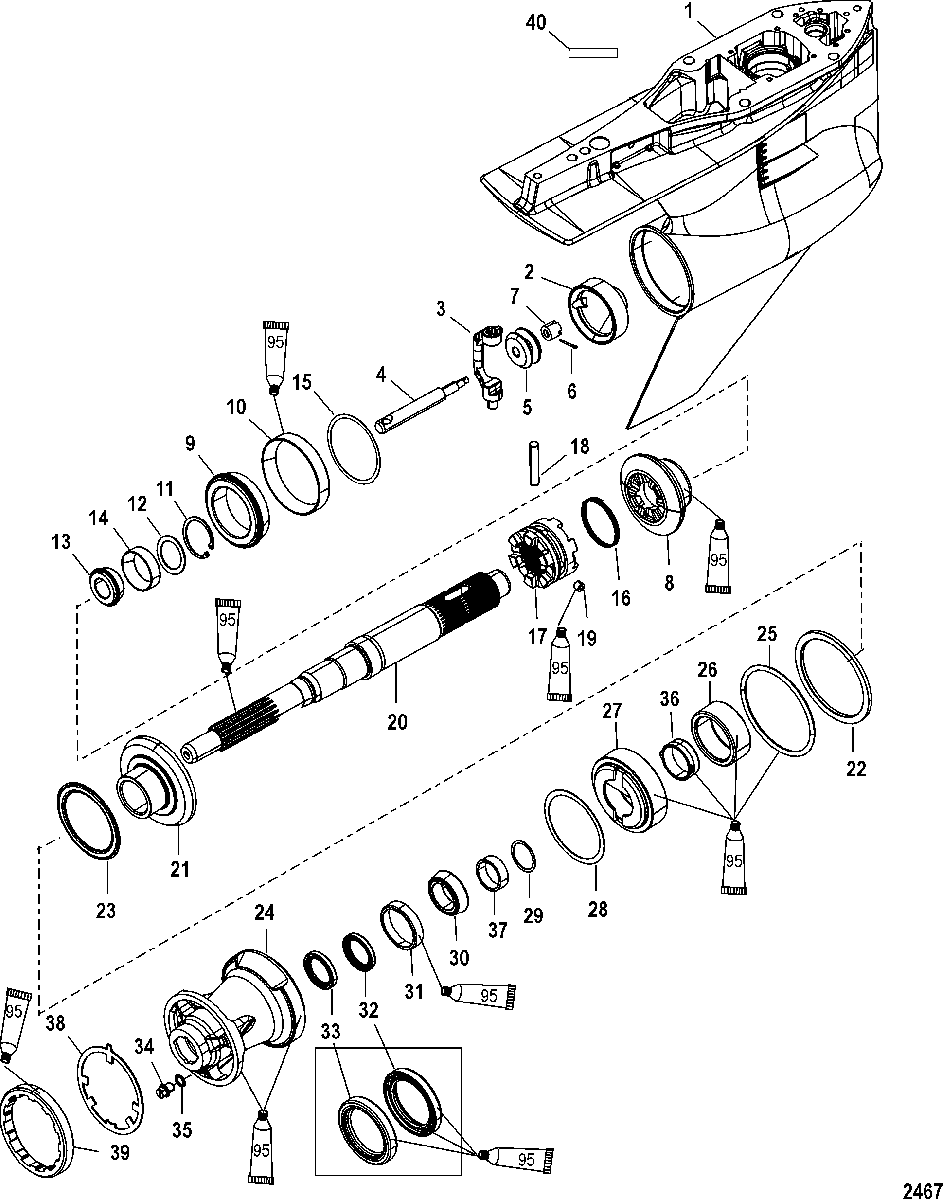

Gear Housing, PropShaft-Count Rot,4.80 Torp 2B026816 & below для Mariner - 225 VERADO (4-STROKE)(6 CYL.) 1B517434 THRU 2B144122
-
№АртикулНазвание
-
-1600-880686T15 GEAR HOUSING ASSEMBLY, Complete
(X-Long)(1.85:1)(200 thru 275)GEAR HOUSING ASSEMBLY, Complete
(X-Long)(1.85:1)(200 thru 275) -
-1600-880686T17 GEAR HOUSING ASSEMBLY, Complete
(XX-Long)(1.85:1)(200 thru 275)GEAR HOUSING ASSEMBLY, Complete
(XX-Long)(1.85:1)(200 thru 275) -
-1600-880686T57 GEAR HOUSING ASSEMBLY, Complete
(Long)(1.75:1)(300)GEAR HOUSING ASSEMBLY, Complete
(Long)(1.75:1)(300) -
-1600-880686T58 GEAR HOUSING ASSEMBLY, Complete
(X-Long)(1.75:1)(300)GEAR HOUSING ASSEMBLY, Complete
(X-Long)(1.75:1)(300) -
-1600-880686T59 GEAR HOUSING ASSEMBLY, Complete
(XX-Long)(1.75:1)GEAR HOUSING ASSEMBLY, Complete
(XX-Long)(1.75:1) -
11600-8M0056631 GEAR HOUSING ASSEMBLY, Basic, Used With 5/16 Inch Shift Crank
SN# 1B853027 & BelowGEAR HOUSING ASSEMBLY, Basic, Used With 5/16 Inch Shift Crank
SN# 1B853027 & Below -
11600-8M0056631 GEAR HOUSING ASSEMBLY, Basic, Used With 1/4 Inch Shift Crank
SN# 1B853028 & UpGEAR HOUSING ASSEMBLY, Basic, Used With 1/4 Inch Shift Crank
SN# 1B853028 & Up -
2NSS NOT SOLD SEPARATE, PlugNOT SOLD SEPARATE, Plug
-
3896847A01 CRANK, Shifter, 5/16 Pivot Pin
SN# 1B853027 & BelowCRANK, Shifter, 5/16 Pivot Pin
SN# 1B853027 & Below -
38M0046215 CRANK, Shifter, 1/4 Pivot Pin
SN# 1B853028 & UpCRANK, Shifter, 1/4 Pivot Pin
SN# 1B853028 & Up -
419755T7 SPOOL ASSEMBLYSPOOL ASSEMBLY
-
5NSS NOT SOLD SEPARATE, SpoolNOT SOLD SEPARATE, Spool
-
618-469501 COTTER PINCOTTER PIN
-
7NSS NOT SOLD SEPARATE, Sleeve AdjustingNOT SOLD SEPARATE, Sleeve Adjusting
-
843-892809A02 GEAR ASSEMBLY, Reverse
(1.85:1)(200 thru 275)GEAR ASSEMBLY, Reverse
(1.85:1)(200 thru 275) -
843-880723A02 GEAR, Reverse
(1.75:1)(300)GEAR, Reverse
(1.75:1)(300) -
931-884323T01 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
10NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
1153-8M0051043 RING, RetainingRING, Retaining
-
1212-8M0053823 THRUST WASHERTHRUST WASHER
-
1331-884325T01 BEARING ASSEMBLY, Roller-TapperedBEARING ASSEMBLY, Roller-Tappered
-
14NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
1515-8M0063270 SHIM SETSHIM SET
-
1624-30893 SPRINGSPRING
-
1752-880714T CLUTCHCLUTCH
-
1817-8M0100263 PIN, CrossPIN, Cross
-
1917-828356 PIN, DetentPIN, Detent
-
2044-888530 PROPELLER SHAFTPROPELLER SHAFT
-
2143-8M0142882 GEAR SET, Forward/Pinion
(1.85:1)(200 thru 275)GEAR SET, Forward/Pinion
(1.85:1)(200 thru 275) -
2143-8M0119539 GEAR KIT, Forward/Pinion
(1.75:1)(300)GEAR KIT, Forward/Pinion
(1.75:1)(300) -
22880699 THRUST RINGTHRUST RING
-
2331-815480 BEARING, ThrustBEARING, Thrust
-
24880696A10 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
2525-896524 O-RING, (3.850 x .210)O-RING, (3.850 x .210)
-
2631-814653T BEARING ASSEMBLY, Needle RollersBEARING ASSEMBLY, Needle Rollers
-
27880728 ADAPTOR, BearingADAPTOR, Bearing
-
2815-47397A1 SHIM SETSHIM SET
-
2915-891936A01 SHIM SETSHIM SET
-
3031-884330T01 BEARING ASSEMBLY, TaperedBEARING ASSEMBLY, Tapered
-
31NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
3226-888483 SEAL, OilSEAL, Oil
-
3326-888483 SEAL, OilSEAL, Oil
-
3410-880717A01 SCREW/SEAL KITSCREW/SEAL KIT
-
3526-830749 SEALSEAL
-
368M0053183 ADAPTORADAPTOR
-
3723-891919001 SPACER, ThrustSPACER, Thrust
-
3814-880697 KEYED WASHERKEYED WASHER
-
398M2000347 RETAINERRETAINER
-
40NSS NOT SOLD SEPARATE, Decal-Counter RotationNOT SOLD SEPARATE, Decal-Counter Rotation
-
-26-830749A01 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
