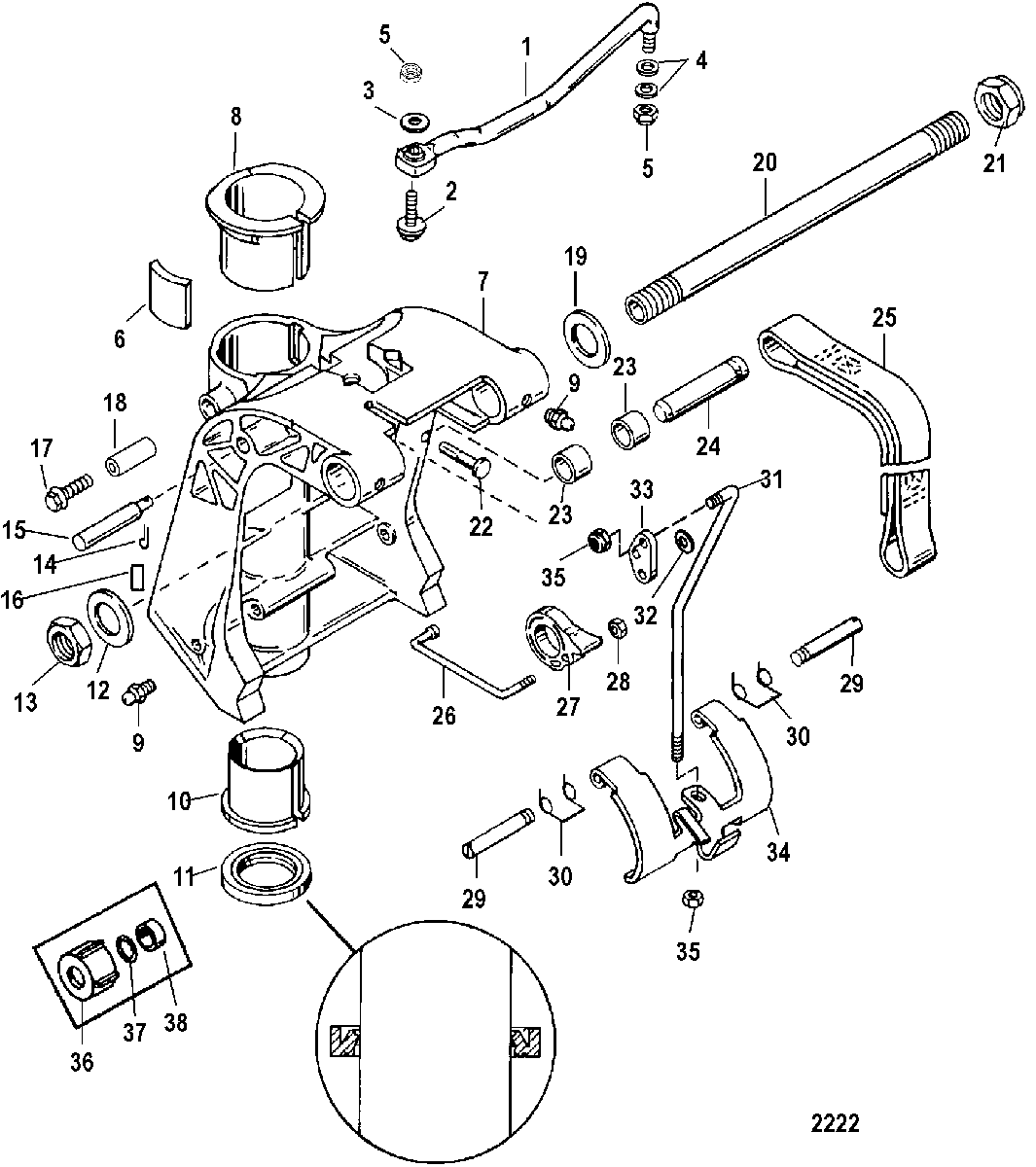

Swivel Bracket, Remote Control для Mariner - 25 (4-STROKE) 0P017000 THRU 0P153499
-
№АртикулНазвание
-
119608A14 ATTACHING KIT, Engine SteeringATTACHING KIT, Engine Steering
-
210-823919 SCREW, (.375-24 x 1.500)SCREW, (.375-24 x 1.500)
-
312-8M0109680 WASHER, (.390 x .546 x .12)WASHER, (.390 x .546 x .12)
-
412-37828 WASHER, (.390 x .625 x .062) Stainless SteelWASHER, (.390 x .625 x .062) Stainless Steel
-
511-8M0042636 NUT, (.375-24) Stainless SteelNUT, (.375-24) Stainless Steel
-
6822397 PUCKPUCK
-
73410-827402T5 SWIVEL BRACKET
BlackSWIVEL BRACKET
Black -
73410-827402T5 SWIVEL BRACKET
GraySWIVEL BRACKET
Gray -
823-8217711 BUSHING, UpperBUSHING, Upper
-
922-74036 FITTING, GreaseFITTING, Grease
-
1023-821777 BUSHING, LowerBUSHING, Lower
-
1126-822404 SEALSEAL
-
1212-19619 WASHERWASHER
-
1311-858869 NUT, (7/8-14) (.875-14)NUT, (7/8-14) (.875-14)
-
1418-26811 COTTER PINCOTTER PIN
-
15821799002 PIN, PivotPIN, Pivot
-
16NSS NOT SOLD SEPARATE, Decal-Serial OverlaminateNOT SOLD SEPARATE, Decal-Serial Overlaminate
-
1710-40011149 SCREW, (M8 x 25) Stainless SteelSCREW, (M8 x 25) Stainless Steel
-
188282451 SEALSEAL
-
1912-19619 WASHERWASHER
-
208M0041938 TILT TUBETILT TUBE
-
2111-858869 NUT, (7/8-14) (.875-14)NUT, (7/8-14) (.875-14)
-
2217-821539 PIN, TrilobePIN, Trilobe
-
2323-823507 BUSHINGBUSHING
-
2417-822480 PIN, Pivot, UpperPIN, Pivot, Upper
-
258217751 STRAPSTRAP
-
26821800 LINK, UpperLINK, Upper
-
278217981 LEVERLEVER
-
2811-F1669 NUT, (#6-32)NUT, (#6-32)
-
29826578 PINPIN
-
3024-F366300 SPRINGSPRING
-
318M0026107 LINKLINK
-
3212-71055 WASHERWASHER
-
33825181003 ARMARM
-
348289861 LOCK, ReverseLOCK, Reverse
-
3511-826709106 NUT, (#10-32)NUT, (#10-32)
-
3619624A1 SEAL KITSEAL KIT
-
3725-29619 O-RING, (.583 x .103)O-RING, (.583 x .103)
-
3823-78861 SPACERSPACER
