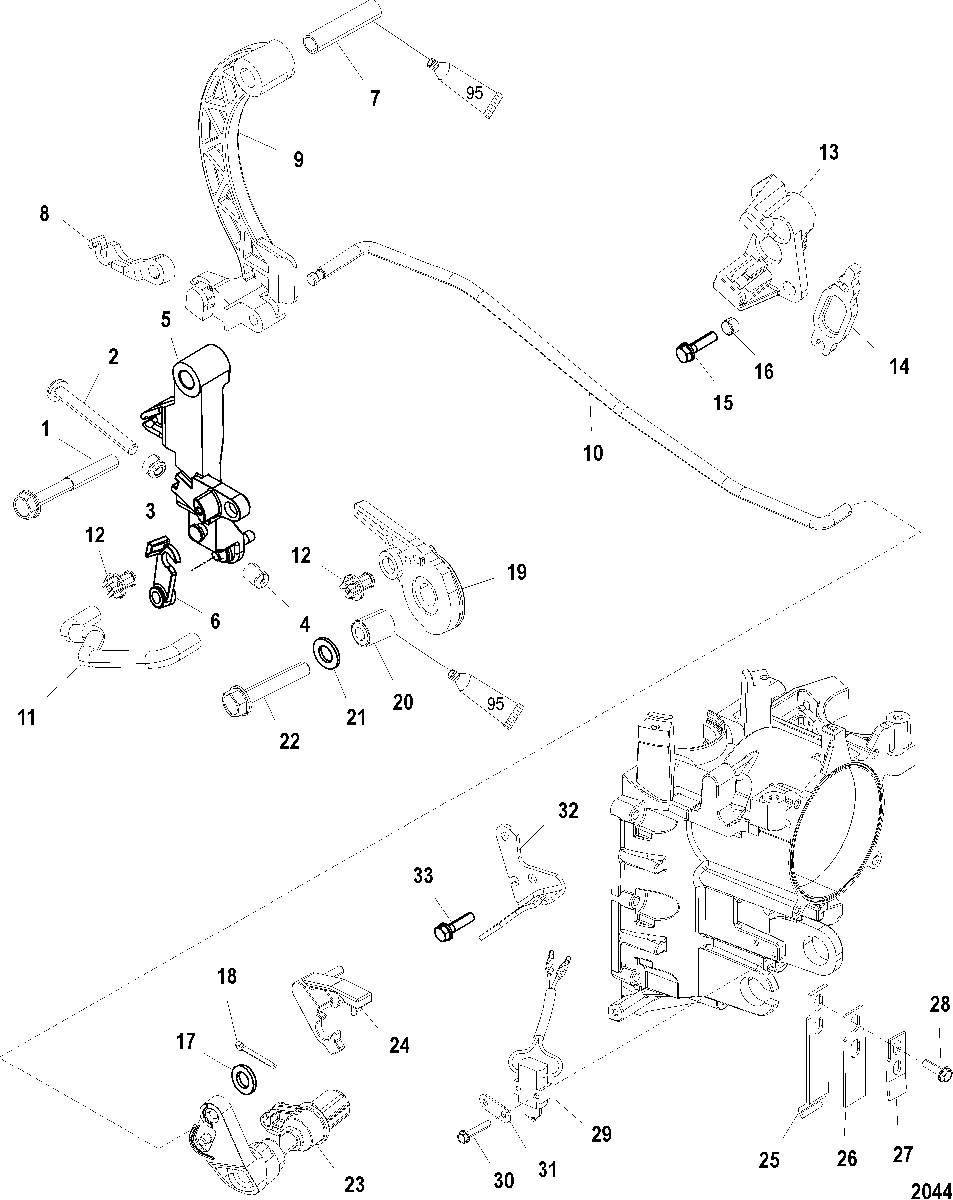

Linkage для Mariner - 25 (4-STROKE) 9973100 THRU 0P016999
-
№АртикулНазвание
-
110-40011158 SCREW, (M8 x 70) Stainless Steel
ELECTRIC NON HANDLESCREW, (M8 x 70) Stainless Steel
ELECTRIC NON HANDLE -
210-814776 SCREW, Adjusting (M6 x 55)
ELECTRIC NON HANDLESCREW, Adjusting (M6 x 55)
ELECTRIC NON HANDLE -
311-401196 NUT, (M6)
ELECTRIC NON HANDLENUT, (M6)
ELECTRIC NON HANDLE -
442942 CAP
ELECTRIC NON HANDLECAP
ELECTRIC NON HANDLE -
5822682A4 LEVER, Throttle
ELECTRIC NON HANDLELEVER, Throttle
ELECTRIC NON HANDLE -
6826587 RETAINER
ELECTRIC NON HANDLERETAINER
ELECTRIC NON HANDLE -
723-825078 BUSHING
ELECTRIC NON HANDLEBUSHING
ELECTRIC NON HANDLE -
8822459 RETAINER
ELECTRIC NON HANDLERETAINER
ELECTRIC NON HANDLE -
98259571 LEVER, Shift
ELECTRIC NON HANDLELEVER, Shift
ELECTRIC NON HANDLE -
10882820 SHIFT ROD
ELECTRIC NON HANDLESHIFT ROD
ELECTRIC NON HANDLE -
11830307 ROD, Throttle
ELECTRIC NON HANDLEROD, Throttle
ELECTRIC NON HANDLE -
1223-932481 BUSHING
ELECTRIC NON HANDLEBUSHING
ELECTRIC NON HANDLE -
13827706A4 BRACKET
ELECTRIC NON HANDLEBRACKET
ELECTRIC NON HANDLE -
1498889 LATCH
ELECTRIC NON HANDLELATCH
ELECTRIC NON HANDLE -
1510-8248324 SCREW, (M6 x 16)
ELECTRIC NON HANDLESCREW, (M6 x 16)
ELECTRIC NON HANDLE -
1623-15885 SLEEVE
ELECTRIC NON HANDLESLEEVE
ELECTRIC NON HANDLE -
1712-4002316 WASHER
ELECTRIC NON HANDLEWASHER
ELECTRIC NON HANDLE -
1818-210711 COTTER PIN
ELECTRIC NON HANDLECOTTER PIN
ELECTRIC NON HANDLE -
19830305 CAM, ThrottleCAM, Throttle
-
2023-822389 BUSHINGBUSHING
-
2112-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
2210-40011131 SCREW, (M6 x 35) Stainless SteelSCREW, (M6 x 35) Stainless Steel
-
23826588A4 SHIFT SHAFT ASSEMBLY, HorizontalSHIFT SHAFT ASSEMBLY, Horizontal
-
248277071 RETAINERRETAINER
-
2524-826077 SPRING, DetentSPRING, Detent
-
2624-824993 SPRING, BackingSPRING, Backing
-
27824994 SPRING, PlateSPRING, Plate
-
2810-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
2987-8M0052927 SWITCH
ELECTRIC HANDLE MODELSSWITCH
ELECTRIC HANDLE MODELS -
3010-88075020 SCREW, (M3.5 x 20) Stainless Steel
ELECTRIC HANDLE MODELSSCREW, (M3.5 x 20) Stainless Steel
ELECTRIC HANDLE MODELS -
31824923 PLATE
ELECTRIC HANDLE MODELSPLATE
ELECTRIC HANDLE MODELS -
328214943 BRACKET
HANDLE MODELSBRACKET
HANDLE MODELS -
3310-8248324 SCREW, (M6 x 16)
HANDLE MODELSSCREW, (M6 x 16)
HANDLE MODELS
