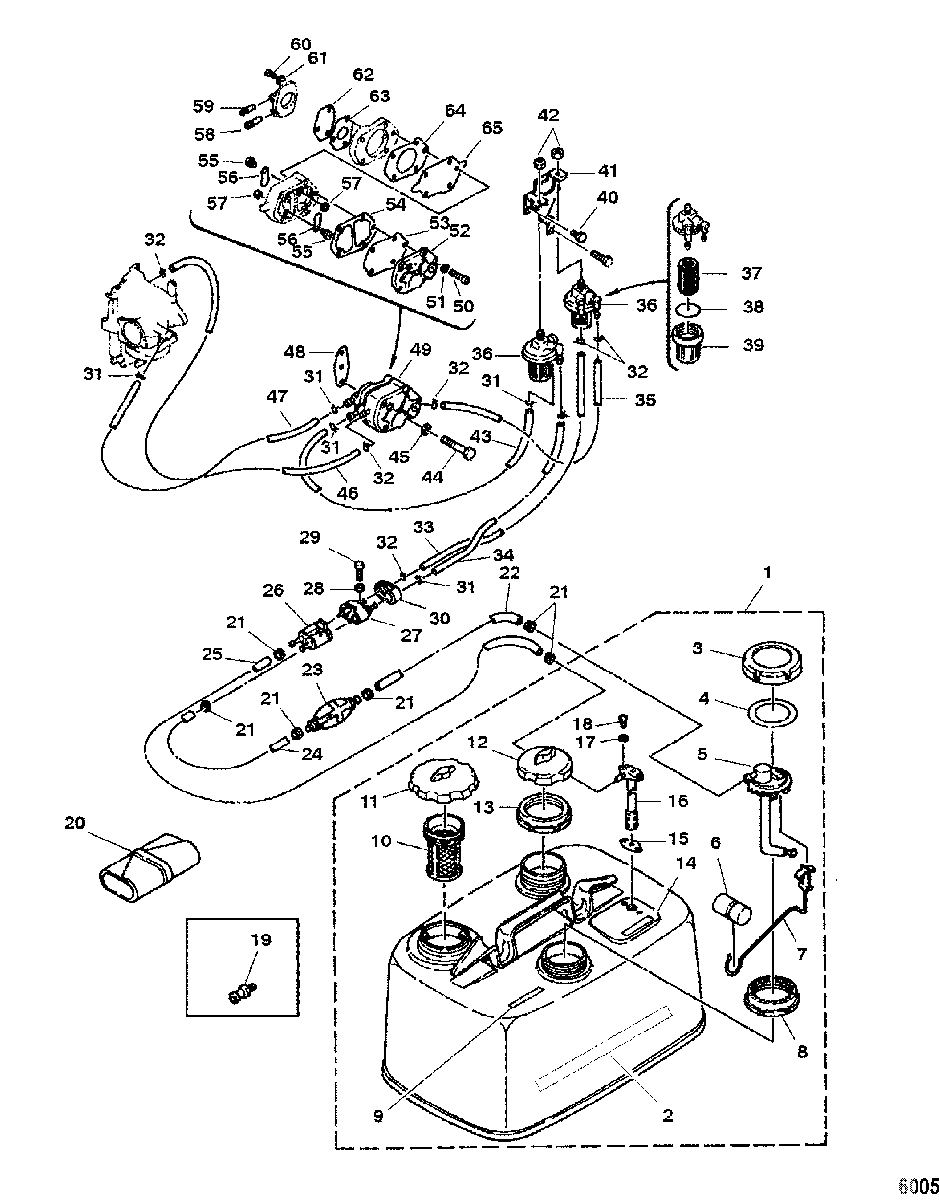

FUEL SYSTEM для Mariner - 25 K (LONG) 62CK-200454 & Up
-
№АртикулНазвание
-
11252-826961M FUEL TANK ASSEMBLYFUEL TANK ASSEMBLY
-
237-14617M DECALDECAL
-
397624M SUPPORTSUPPORT
-
427-97623M GASKETGASKET
-
595616M FUEL METERFUEL METER
-
681319M FLOATFLOAT
-
714274M INDICTORINDICTOR
-
897622M NUTNUT
-
937-826963M DECALDECAL
-
1035-95568M STRAINERSTRAINER
-
1136-814497M CAPCAP
-
1236-814498M CAPCAP
-
1397620M NUTNUT
-
1437-94704M DECALDECAL
-
1527-16720M GASKETGASKET
-
1699954M HOUSING CONNECTORHOUSING CONNECTOR
-
1712-95501M SEALSEAL
-
1810-95502M SCREWSCREW
-
1922-8M0121335 PLUGPLUG
-
2091-803581 TOOL KITTOOL KIT
-
2154-16725M CLAMPCLAMP
-
2232-94727M HOSEHOSE
-
2389396Q01 PRIMER BULBPRIMER BULB
-
2432-94727M HOSEHOSE
-
2532-16571M HOSEHOSE
-
2695569M FUEL CONNECTORFUEL CONNECTOR
-
2795604M CONNECTORCONNECTOR
-
2812-82214M WASHERWASHER
-
2910-84058M BOLT, (M6 x 20)BOLT, (M6 x 20)
-
3025-97607M GROMMETGROMMET
-
3154-82047M CLAMPCLAMP
-
3254-98974M CLIPCLIP
-
3332-82012M HOSEHOSE
-
3432-82012M HOSEHOSE
-
3532-95564M HOSEHOSE
-
3635-8M0121336 FUEL FILTERFUEL FILTER
-
3735-826965T FILTERFILTER
-
3825-826966T O-RINGO-RING
-
39826967M CUPCUP
-
4010-91772M BOLTBOLT
-
41826968M BRACKETBRACKET
-
4211-82382M NUTNUT
-
4332-81112M HOSEHOSE
-
4410-84931M BOLTBOLT
-
4512-82214M WASHERWASHER
-
4632-826969M HOSEHOSE
-
4732-82012M HOSEHOSE
-
4827-80757 GASKETGASKET
-
49826970M FUEL PUMP ASSEMBLYFUEL PUMP ASSEMBLY
-
5010-82522M SCREWSCREW
-
5113-82186M WASHERWASHER
-
5280607M HOUSINGHOUSING
-
5384141M DIAPHRAGMDIAPHRAGM
-
5427-80614 GASKETGASKET
-
5510-41889M SCREW, (M3 x 5)SCREW, (M3 x 5)
-
5621-41888M CHECK VALVECHECK VALVE
-
5711-82537M NUTNUT
-
5822-94716M CONNECTORCONNECTOR
-
5922-826971M CONNECTORCONNECTOR
-
6010-94724M SCREWSCREW
-
6113-94725M LOCKWASHERLOCKWASHER
-
6294717M DIAPHRAGMDIAPHRAGM
-
6327-94718M GASKETGASKET
-
6427-80613 GASKETGASKET
-
65835014M DIAPHRAGMDIAPHRAGM
-
-27-827107A02 POWERHEAD GASKET SETPOWERHEAD GASKET SET
