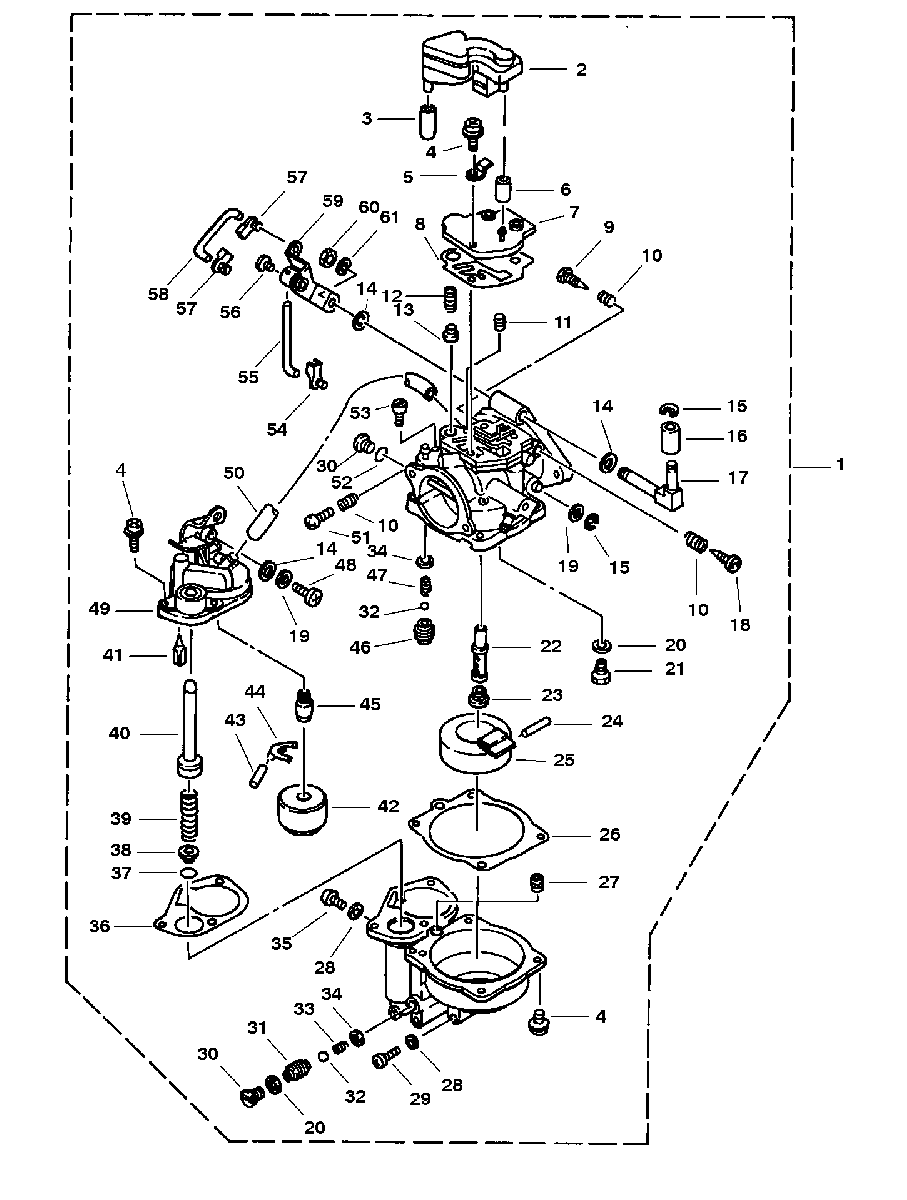

CARBURETOR для Mariner - 25 K 62C-000101 AND UP
-
№АртикулНазвание
-
11383-826923M CARBURETOR
(M-000185/ML-301556 AND BELOW)CARBURETOR
(M-000185/ML-301556 AND BELOW) -
11383-8269232 CARBURETOR
(M-000186-000251/ML-301557-303098)CARBURETOR
(M-000186-000251/ML-301557-303098) -
11383-8269232 CARBURETOR
(M-000252/ML-303099 & UP)CARBURETOR
(M-000252/ML-303099 & UP) -
295586M DAMPERDAMPER
-
332-82012M HOSEHOSE
-
410-81758M SCREWSCREW
-
595585M PLATEPLATE
-
632-82012M HOSEHOSE
-
795575M PLATEPLATE
-
827-95576M GASKETGASKET
-
910-80573M SCREWSCREW
-
1024-814460M SPRINGSPRING
-
11826944M JET-pilotJET-pilot
-
1224-81100M SPRINGSPRING
-
13826932M PLUNGERPLUNGER
-
1423-826927M SLEEVESLEEVE
-
1553-94722M RING
(M-000252/ML-303099 & UP)RING
(M-000252/ML-303099 & UP) -
1553-826928M RING
(M-000251/ML-303098 & BELOW)RING
(M-000251/ML-303098 & BELOW) -
1623-826926M SLEEVESLEEVE
-
17826929M SHAFTSHAFT
-
1810-826946M SCREWSCREW
-
1912-826943M WASHERWASHER
-
2012-80261M WASHERWASHER
-
2180593M INLET VALVE & SEATINLET VALVE & SEAT
-
22826925M MAIN NOZZLEMAIN NOZZLE
-
238269241 MAIN JET
(M-000252/ML-303099 & UP)MAIN JET
(M-000252/ML-303099 & UP) -
23826924M MAIN JET
(M-000251/ML-303098 & BELOW)MAIN JET
(M-000251/ML-303098 & BELOW) -
2417-11794M PINPIN
-
2580591M FLOATFLOAT
-
2627-97573M GASKETGASKET
-
27826933M JET-StarterJET-Starter
-
2827-13999M GASKETGASKET
-
2910-91738M SCREWSCREW
-
3097602M VALVEVALVE
-
-827108M CARB REPAIR KITCARB REPAIR KIT
-
-27-827106M POWERHEAD GASKET SETPOWERHEAD GASKET SET
-
-27-827106M POWERHEAD GASKET SETPOWERHEAD GASKET SET
