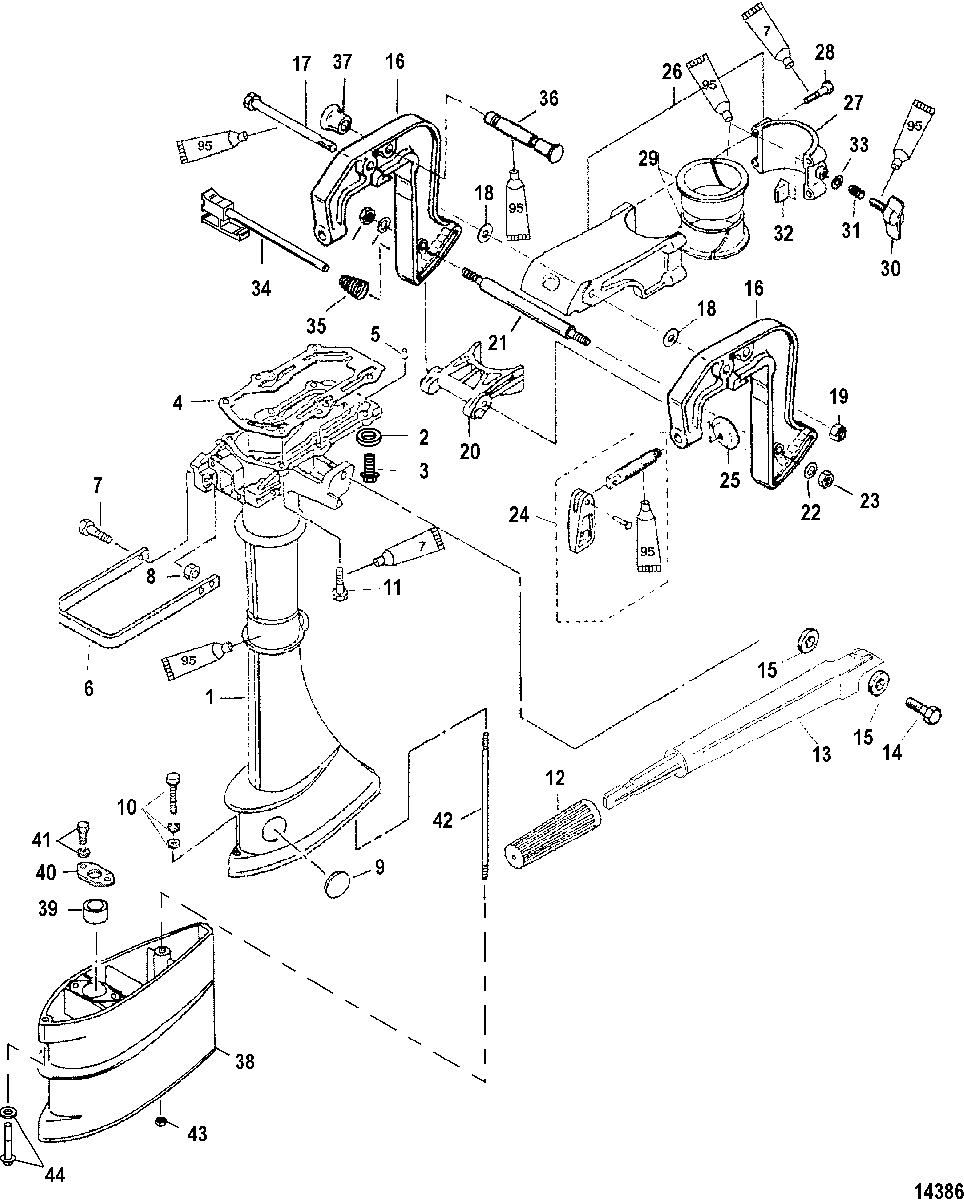

Driveshaft Housing and Clamp Brackets для Mariner - 2.5 0P401000 & Up
-
№АртикулНазвание
-
11599-825130T HOUSING, Driveshaft
2 HorsepowerHOUSING, Driveshaft
2 Horsepower -
11599-825130T HOUSING, Driveshaft
Short- 2.5 HorsepowerHOUSING, Driveshaft
Short- 2.5 Horsepower -
11599-8251301 HOUSING, Driveshaft
Long- 2.5 HorsepowerHOUSING, Driveshaft
Long- 2.5 Horsepower -
11599-825128A1 HOUSING ASSEMBLY, Driveshaft
3.3 HorsepowerHOUSING ASSEMBLY, Driveshaft
3.3 Horsepower -
28M0082880 GASKETGASKET
-
319-879194296 FLUSH PLUGFLUSH PLUG
-
427-815076002 GASKETGASKET
-
517-16119 PIN, DowelPIN, Dowel
-
695276 CARRYING HANDLE
2 HorsepowerCARRYING HANDLE
2 Horsepower -
695276 CARRYING HANDLE
2.5 HorsepowerCARRYING HANDLE
2.5 Horsepower -
6823164 CARRYING HANDLE
3.3 HorsepowerCARRYING HANDLE
3.3 Horsepower -
710-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
811-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
925-16117 GROMMET
3.3 HorsepowerGROMMET
3.3 Horsepower -
1010-82304227 BOLT
2 HorsepowerBOLT
2 Horsepower -
1010-82304227 BOLT
2.5 HorsepowerBOLT
2.5 Horsepower -
1110-823042 BOLTBOLT
-
1295274 GRIPGRIP
-
13823162A3 HANDLE ASSEMBLY, SteeringHANDLE ASSEMBLY, Steering
-
1410-40011151 SCREW, (M8 x 35) Stainless SteelSCREW, (M8 x 35) Stainless Steel
-
1522-95364 DAMPERDAMPER
-
163406-8150852 CLAMP BRACKETCLAMP BRACKET
-
1710-898101337 BOLTBOLT
-
1812-95375 WASHERWASHER
-
1911-95374 NUT, NylonNUT, Nylon
-
2095278 BRACKETBRACKET
-
218M0055576 DISTANCE RODDISTANCE ROD
-
2213-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
2311-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2410-8M0075060 CLAMP SCREW ASSEMBLYCLAMP SCREW ASSEMBLY
-
2512-95379 PADPAD
-
263407-9160T1 SWIVEL BRACKETSWIVEL BRACKET
-
273407-8112041 SWIVEL BRACKETSWIVEL BRACKET
-
2810-8M0124428 BOLTBOLT
-
2923-95381 BUSHINGBUSHING
-
3010-162061 SCREW, AdjustingSCREW, Adjusting
-
3124-953838 SPRINGSPRING
-
32952791 FRICTION PADFRICTION PAD
-
3312-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
348150921 THRUST RODTHRUST ROD
-
3524-815093003 SPRINGSPRING
-
368M0058619 STOPPER, TiltSTOPPER, Tilt
-
37815096 KNOBKNOB
-
38823826T03 HOUSING KIT, Extension
3.3 HorsepowerHOUSING KIT, Extension
3.3 Horsepower -
3923-811214 BUSHING
3.3 HorsepowerBUSHING
3.3 Horsepower -
4016121001 STOPPER
3.3 HorsepowerSTOPPER
3.3 Horsepower -
4110-8230427 BOLT
3.3 HorsepowerBOLT
3.3 Horsepower -
4216-8230441 STUD
3.3 HorsepowerSTUD
3.3 Horsepower -
4311-400212 NUT, (M6) Stainless Steel
3.3 HorsepowerNUT, (M6) Stainless Steel
3.3 Horsepower -
4410-82304232 BOLT
3.3 HorsepowerBOLT
3.3 Horsepower -
-27-898101928 GASKET SET, Powerhead
2 HorsepowerGASKET SET, Powerhead
2 Horsepower -
-27-898101928 GASKET SET, Powerhead
2.5 HorsepowerGASKET SET, Powerhead
2.5 Horsepower -
-27-815076A04 GASKET SET, Powerhead
3.3 HorsepowerGASKET SET, Powerhead
3.3 Horsepower
