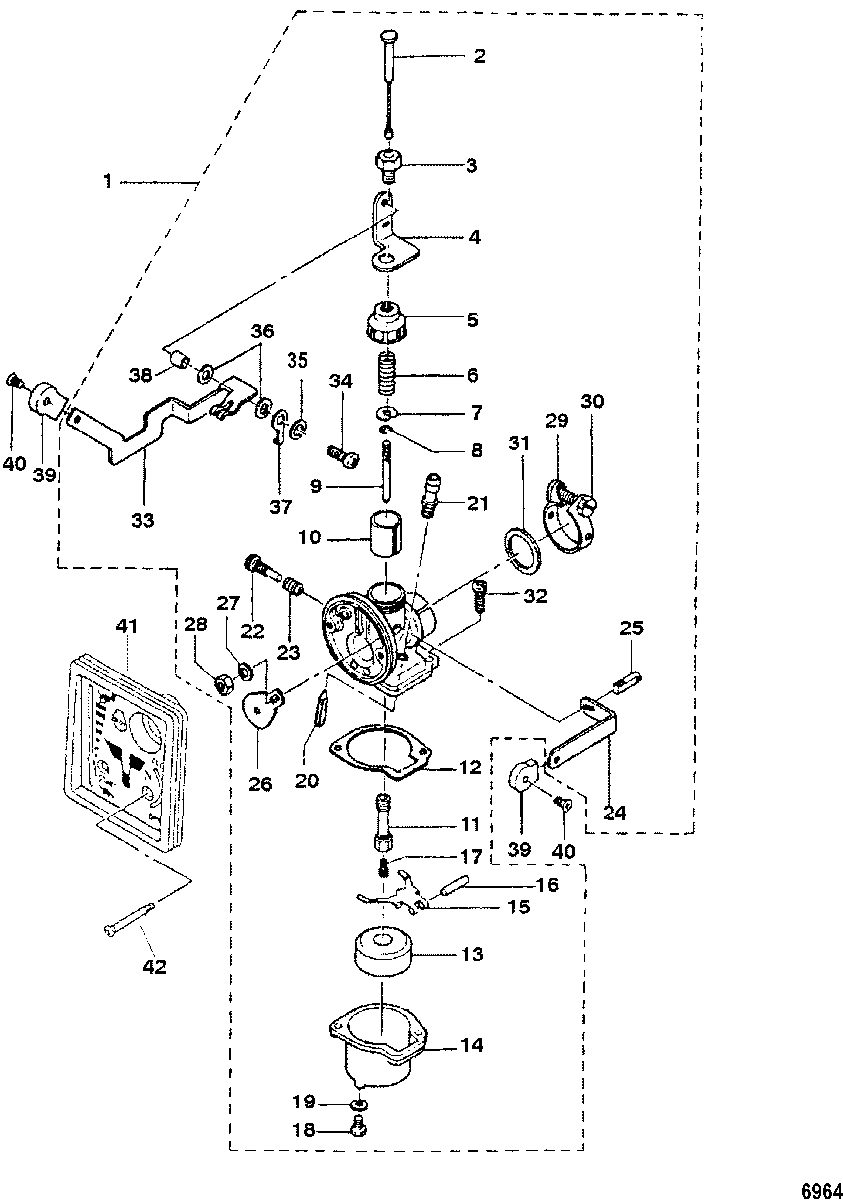

Carburetor для Mariner - 2.5 0T894577 & Up
-
№АртикулНазвание
-
13303-823040T06 CARBURETOR ASSEMBLY
2 HorsepowerCARBURETOR ASSEMBLY
2 Horsepower -
13303-823040A5 CARBURETOR ASSEMBLY
2.5 HorsepowerCARBURETOR ASSEMBLY
2.5 Horsepower -
13303-823040A4 CARBURETOR ASSEMBLY
3.3 HorsepowerCARBURETOR ASSEMBLY
3.3 Horsepower -
295252 WIRE, ThrottleWIRE, Throttle
-
310-95321 BOLTBOLT
-
495253 BRACKETBRACKET
-
595254 CAPCAP
-
624-95322 SPRINGSPRING
-
795255 PLATEPLATE
-
853-95323 E RINGE RING
-
98151263 JET NEEDLEJET NEEDLE
-
1095257004 VALVE, Throttle
2 HorsepowerVALVE, Throttle
2 Horsepower -
10952573 VALVE, Throttle
2.5 HorsepowerVALVE, Throttle
2.5 Horsepower -
10952572 VALVE, Throttle
3.3 HorsepowerVALVE, Throttle
3.3 Horsepower -
118151081 NEEDLE JETNEEDLE JET
-
1227-95324 GASKETGASKET
-
1395259 FLOATFLOAT
-
1495260 FLOAT BOWLFLOAT BOWL
-
15952621 HINGEHINGE
-
1617-95327 PIN, HingePIN, Hinge
-
178150293 MAIN JET (#86)MAIN JET (#86)
-
1810-953251 SCREW, DrainSCREW, Drain
-
1927-95326 GASKETGASKET
-
20952631 NEEDLE VALVENEEDLE VALVE
-
21952641 SEAT, Needle ValveSEAT, Needle Valve
-
2210-95328 SCREWSCREW
-
2324-95329 SPRINGSPRING
-
2495266 LEVER, ShutterLEVER, Shutter
-
2510-95331 SCREWSCREW
-
2695265 PLATE, ChokePLATE, Choke
-
2713-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
2811-95330 NUTNUT
-
2954-95332 CLAMPCLAMP
-
3010-95333 SCREWSCREW
-
3125-811601 O-RINGO-RING
-
3210-815071 SCREWSCREW
-
3395268 LEVER, ThrottleLEVER, Throttle
-
3410-815072 SCREWSCREW
-
3513-95238 LOCKWASHERLOCKWASHER
-
3627-95336 GASKETGASKET
-
37952672 BRACKETBRACKET
-
3823-952867 COLLARCOLLAR
-
3995269 KNOBKNOB
-
4010-95338 SCREWSCREW
-
418150731 COVER
2/2.5 Horsepower SN# 1B575522 & BelowCOVER
2/2.5 Horsepower SN# 1B575522 & Below -
418M0058606 COVER
2/2.5 Horsepower SN# 1B575523 & UpCOVER
2/2.5 Horsepower SN# 1B575523 & Up -
41815073 COVER
3.3 Horsepower SN# 1B575752 & BelowCOVER
3.3 Horsepower SN# 1B575752 & Below -
418M0058621 COVER
3.3 Horsepower SN# 1B575753 & UpCOVER
3.3 Horsepower SN# 1B575753 & Up -
4210-95339 SCREWSCREW
-
-855546A4 REPAIR KIT, CarburetorREPAIR KIT, Carburetor
-
-8M0080062 MAIN JET, (#80)
3.3, High altitudeMAIN JET, (#80)
3.3, High altitude -
-8M0080063 MAIN JET, (#78)
3.3, High altitudeMAIN JET, (#78)
3.3, High altitude -
-8M0080064 MAIN JET, (#76)
3.3, High altitudeMAIN JET, (#76)
3.3, High altitude
