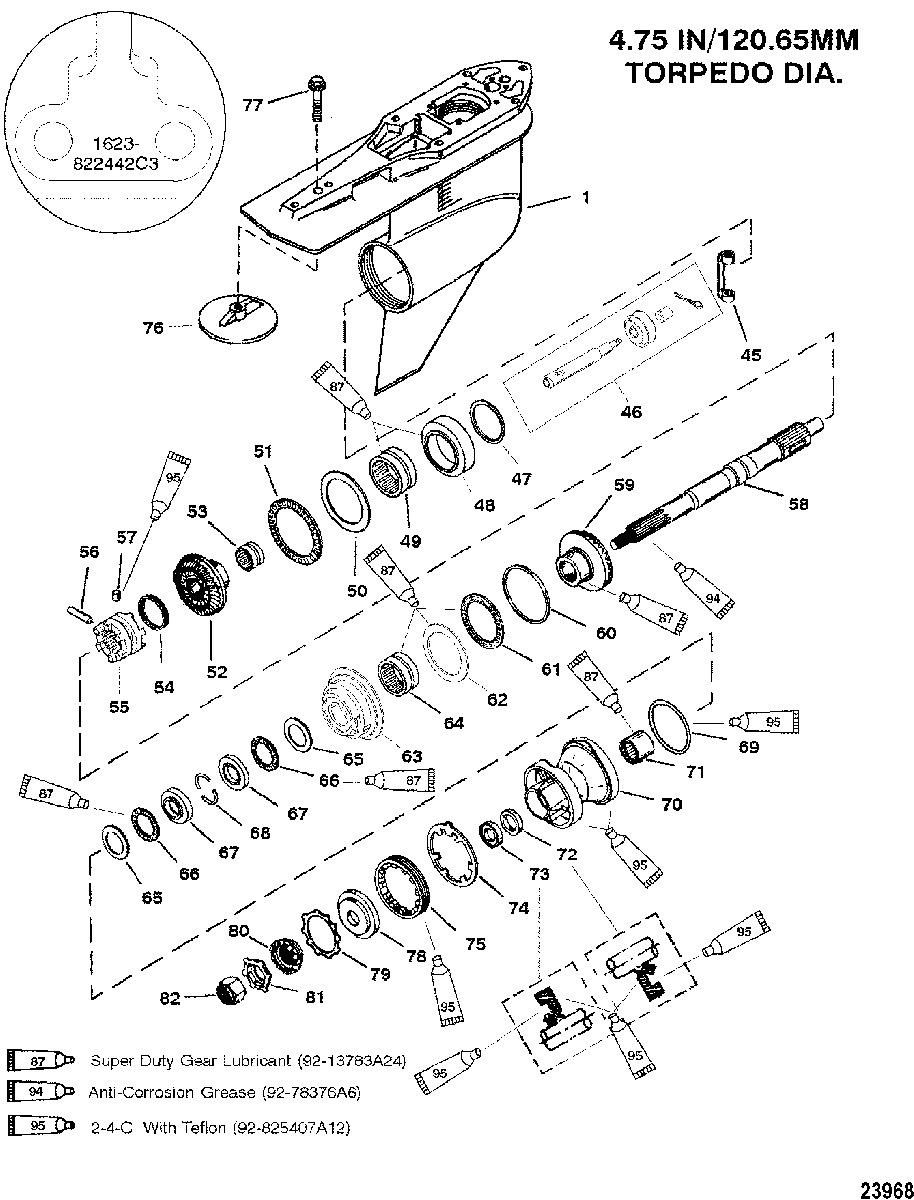

G/HSG, PROP-COUNTER-G438000 AND UP-1623-822442C3 для Mariner - 250 (3.0L EFI) 0G129222 THRU 0G760299
-
№АртикулНазвание
-
11623-822442T77 GEAR HOUSING ASSEMBLY
(BASIC-BLACK)GEAR HOUSING ASSEMBLY
(BASIC-BLACK) -
11623-822442T84 GEAR HOUSING ASSEMBLY
(BASIC-GRAY)GEAR HOUSING ASSEMBLY
(BASIC-GRAY) -
11623-822442T79 GEAR HOUSING ASSEMBLY
(BASIC-WHITE)GEAR HOUSING ASSEMBLY
(BASIC-WHITE) -
45823903 SHIFT CRANKSHIFT CRANK
-
4619755T7 SPOOL ASSEMBLYSPOOL ASSEMBLY
-
4715-8M0063266 SHIM SETSHIM SET
-
48828830A2 ADAPTOR ASSEMBLY, BearingADAPTOR ASSEMBLY, Bearing
-
4931-814653T BEARING ASSEMBLY, Needle RollersBEARING ASSEMBLY, Needle Rollers
-
5012-815481 THRUST WASHERTHRUST WASHER
-
5131-815480 BEARING, ThrustBEARING, Thrust
-
5243-828696T2 GEAR ASSEMBLY, ReverseGEAR ASSEMBLY, Reverse
-
5331-15844 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
5424-30893 SPRINGSPRING
-
5552-859340T SLIDING CLUTCHSLIDING CLUTCH
-
5617-8M0100263 PIN, CrossPIN, Cross
-
5717-828356 PIN, DetentPIN, Detent
-
5844-8M0140448 PROPELLER SHAFTPROPELLER SHAFT
-
5943-828695A1 GEAR SET, Forward/Pinion (12/21) (INCLUDES PINION)GEAR SET, Forward/Pinion (12/21) (INCLUDES PINION)
-
6023-1761514 SPACER SHIM , (.206)SPACER SHIM , (.206)
-
6023-1761515 SPACER SHIM , (.208)SPACER SHIM , (.208)
-
6023-1761516 SPACER SHIM, (.210)SPACER SHIM, (.210)
-
6023-1761517 SPACER SHIM, (.212)SPACER SHIM, (.212)
-
6023-1761518 SPACER SHIM, (.214)SPACER SHIM, (.214)
-
6023-1761519 SPACER SHIM, (.216)SPACER SHIM, (.216)
-
6023-1761520 SPACER SHIM, (.218)SPACER SHIM, (.218)
-
6023-1761521 SPACER SHIM, (.220)SPACER SHIM, (.220)
-
6023-1761522 SPACER SHIM, (.222)SPACER SHIM, (.222)
-
6023-1761523 SPACER SHIM, (.224)SPACER SHIM, (.224)
-
6023-1761524 SPACER SHIM, (.226)SPACER SHIM, (.226)
-
6023-1761525 SPACER SHIM, (.228)SPACER SHIM, (.228)
-
6023-1761526 SPACER SHIM, (.230)SPACER SHIM, (.230)
-
6131-815480 BEARING, ThrustBEARING, Thrust
-
6212-815481 THRUST WASHERTHRUST WASHER
-
63828831A3 ADAPTOR ASSEMBLY, BearingADAPTOR ASSEMBLY, Bearing
-
6431-814653T BEARING ASSEMBLY, Needle RollersBEARING ASSEMBLY, Needle Rollers
-
6512-18448 THRUST WASHERTHRUST WASHER
-
6631-15842 BEARING, ThrustBEARING, Thrust
-
678182911 RACE, ThrustRACE, Thrust
-
68814605 KEEPERKEEPER
-
6925-31534 O-RINGO-RING
-
70818290T8 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
7131-30956T BEARING, NeedleBEARING, Needle
-
7226-14077 SEAL, Oil (INSIDE)SEAL, Oil (INSIDE)
-
7326-76868 SEAL (OUTSIDE)SEAL (OUTSIDE)
-
7414-18323 TAB WASHERTAB WASHER
-
758M2000347 RETAINERRETAINER
-
7697-76214Q5 ANODE KIT
(These replacement parts are not included with complete gear housing replacement)ANODE KIT
(These replacement parts are not included with complete gear housing replacement) -
7710-806327 SCREW, (.437-14 x 1.750)
(These replacement parts are not included with complete gear housing replacement)SCREW, (.437-14 x 1.750)
(These replacement parts are not included with complete gear housing replacement) -
7812-835467Q01 THRUST HUB
(These replacement parts are not included with complete gear housing replacement)THRUST HUB
(These replacement parts are not included with complete gear housing replacement) -
7913-423511 LOCKWASHER, Toothed
(These replacement parts are not included with complete gear housing replacement)LOCKWASHER, Toothed
(These replacement parts are not included with complete gear housing replacement) -
8012-31211Q03 WASHER, Splined
(These replacement parts are not included with complete gear housing replacement)WASHER, Splined
(These replacement parts are not included with complete gear housing replacement) -
8114-816629Q TAB WASHER
(These replacement parts are not included with complete gear housing replacement)TAB WASHER
(These replacement parts are not included with complete gear housing replacement) -
8211-52707Q1 PROP NUT KIT, (.750-16)
(These replacement parts are not included with complete gear housing replacement)PROP NUT KIT, (.750-16)
(These replacement parts are not included with complete gear housing replacement) -
-26-816575A4 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
