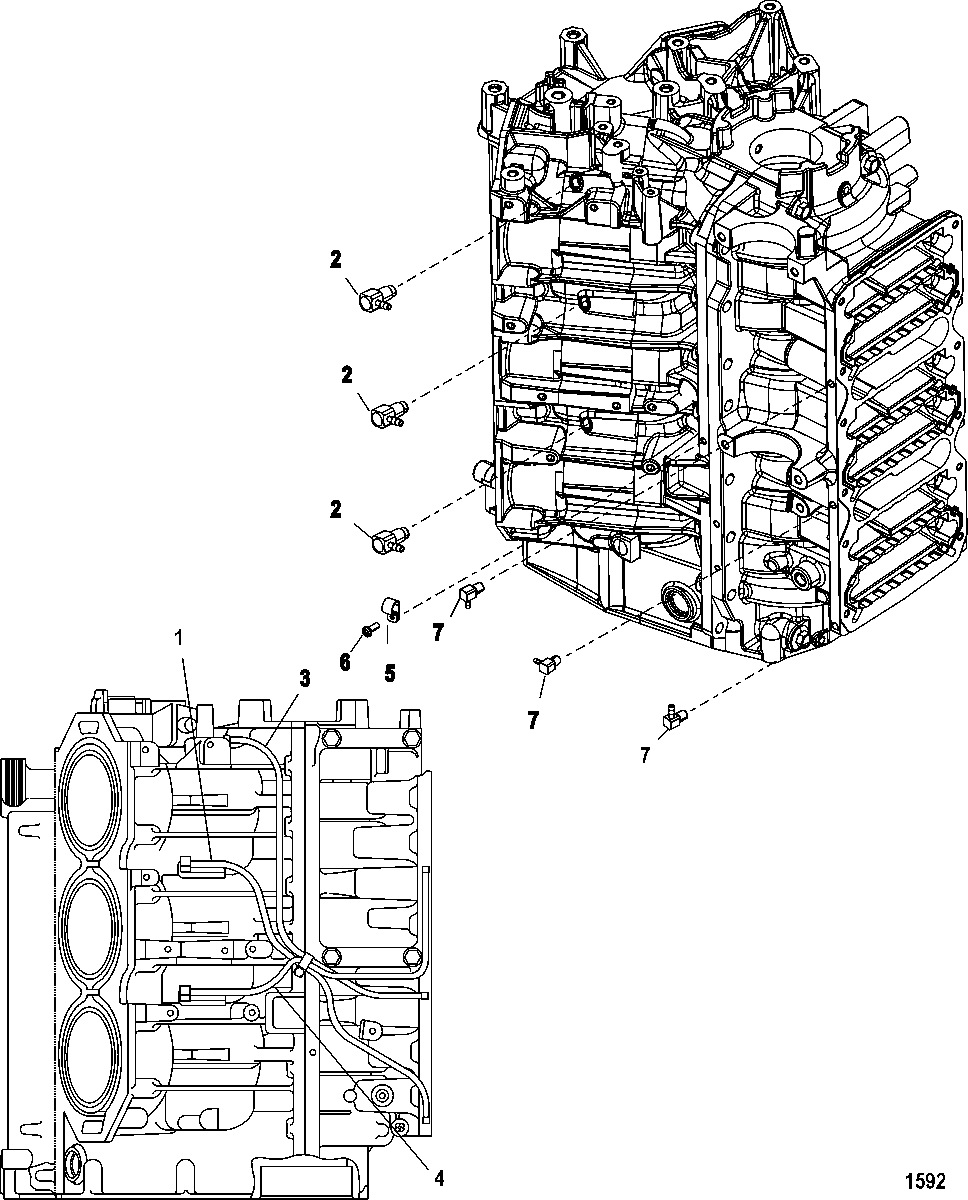

STARBOARD BLEED SYSTEM для Mariner - 250 (3.0L EFI) 0T409000 THRU 0T800999
-
№АртикулНазвание
-
132-8M0054152 TUBING, (36.00 Inches Bulk) (Cut to 15.t Inches)TUBING, (36.00 Inches Bulk) (Cut to 15.t Inches)
-
221-8592352 CHECK VALVE, 90 Degree (.0625-27)CHECK VALVE, 90 Degree (.0625-27)
-
332-8M0054152 TUBING, (36.00 Inches Bulk) (Cut to 16.5 Inches)TUBING, (36.00 Inches Bulk) (Cut to 16.5 Inches)
-
432-8M0054152 TUBING, (36.00 Inches Bulk) (Cut to 15 Inches)TUBING, (36.00 Inches Bulk) (Cut to 15 Inches)
-
554-23567 CLIPCLIP
-
610-48408 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
721-8282182 CHECK VALVECHECK VALVE
-
-883892A07 POWERHEAD ASSEMBLY
(225) SN# 0T598999 & BelowPOWERHEAD ASSEMBLY
(225) SN# 0T598999 & Below -
-883892A07 POWERHEAD ASSEMBLY
(225) SN# 0T599000 & UpPOWERHEAD ASSEMBLY
(225) SN# 0T599000 & Up -
-883893A07 POWERHEAD ASSEMBLY
(3L Work) SN# 0T598999 & BelowPOWERHEAD ASSEMBLY
(3L Work) SN# 0T598999 & Below -
-883893A07 POWERHEAD ASSEMBLY
(3L Work) SN# 0T599000 & UpPOWERHEAD ASSEMBLY
(3L Work) SN# 0T599000 & Up -
-883894A07 POWERHEAD ASSEMBLY
(250) SN# 0T598999 & BelowPOWERHEAD ASSEMBLY
(250) SN# 0T598999 & Below -
-883894A07 POWERHEAD ASSEMBLY
(250) SN# 0T599000 & UpPOWERHEAD ASSEMBLY
(250) SN# 0T599000 & Up -
-891823A07 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200)
Все узлы модели:
- ACCESSORIES
- ATTENUATOR/FLYWHEEL COVER
- BOTTOM COWL
- COIL PLATE
- CRANKSHAFT, PISTONS AND CONNECTING RODS
- CYLINDER BLOCK AND END CAP
- DRIVESHAFT HOUSING & EXHAUST TUBE
- Dual Engine Tie Bar Kit
- EXHAUST PLATE
- FLYWHEEL/ALTERNATOR
- FUEL MANAGEMENT
- FUEL PUMP
- GEAR HOUSING(DRIVESHAFT)(STANDARD/COUNTER ROTATION)
- GEAR HOUSING(PROP SHAFT)(COUNTER ROTATION)
- GEAR HOUSING(PROP SHAFT)(STANDARD ROTATION)
- OIL INJECTION COMPONENTS
- PORT BLEED SYSTEM
- POWER TRIM COMPONENTS
- SERVICE/SUPPORT MATERIAL
- SOLENOID PLATE
- SPEEDOMETER/BLOCK PRESSURE SYSTEM
- • STARBOARD BLEED SYSTEM
- STARTER MOTOR(225-S/N-0T467441/250-S/N-0T467334 &BELOW)
- STARTER MOTOR(225-S/N-0T467442/250-S/N-0T467335 & UP)
- SWIVEL BRACKET AND STEERING ARM
- THROTTLE LINKAGE
- TOOLS
- TOP COWL
- Transom Brackets
- VAPOR SEPARATOR COMPONENTS
