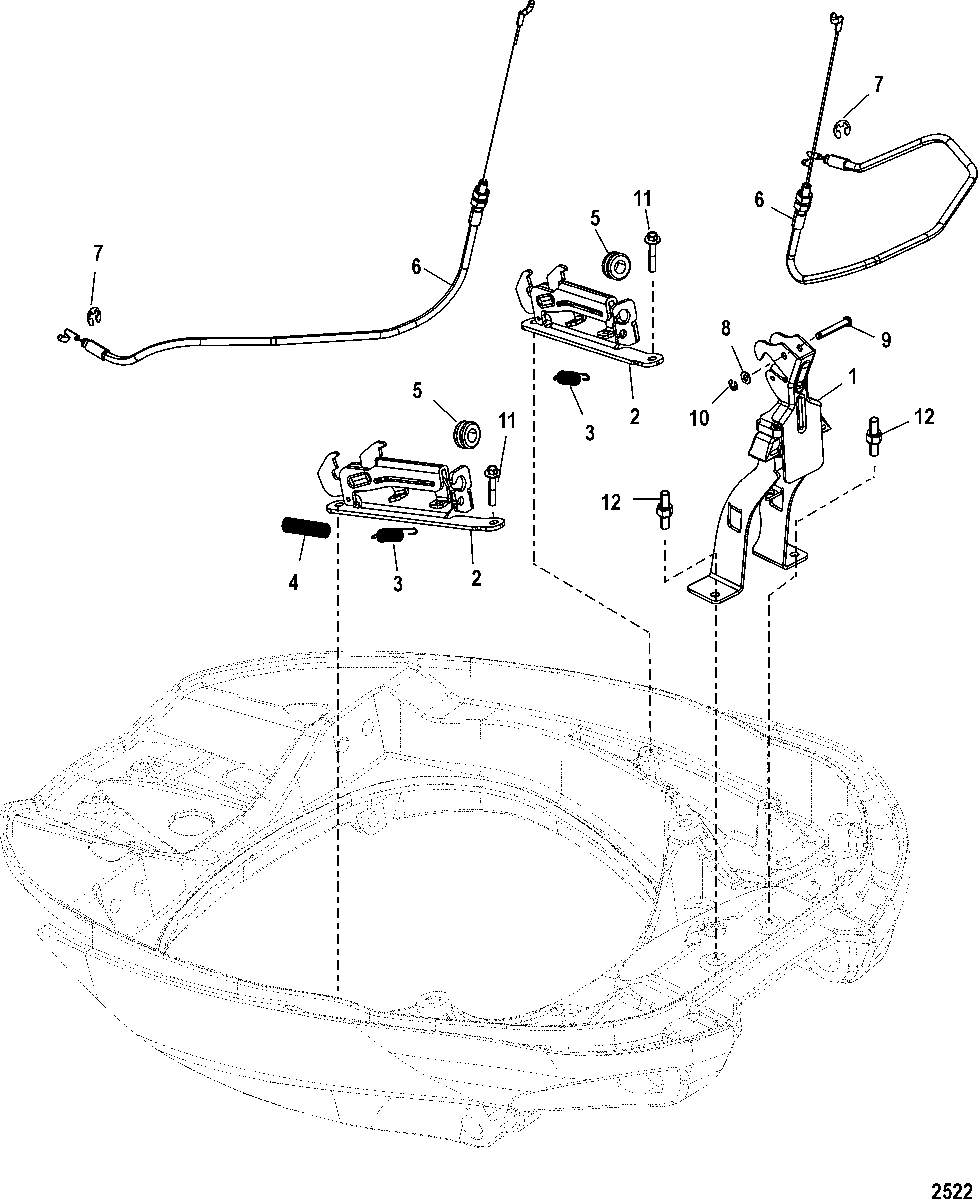

Cowl Latching для Mariner - 250 VERADO (4-STROKE)(6 CYL.) 0P464488 THRU 0P520552
-
№АртикулНазвание
-
-8M0142168 LATCH ASSEMBLY, Front and SideLATCH ASSEMBLY, Front and Side
-
1888976T01 BRACKETBRACKET
-
2888974A02 SIDE LATCH ASSEMBLYSIDE LATCH ASSEMBLY
-
324-888996 SPRINGSPRING
-
423-896124 SLEEVESLEEVE
-
525-828249 GROMMETGROMMET
-
68M0127192 CABLECABLE
-
753-27290 RING, RetainingRING, Retaining
-
812-30164 WASHER, (.192 x .375 x .0312) Stainless SteelWASHER, (.192 x .375 x .0312) Stainless Steel
-
917-893380 PIN, ClevisPIN, Clevis
-
1053-61319 E RINGE RING
-
1110-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1216-8M0099404 STUDSTUD
