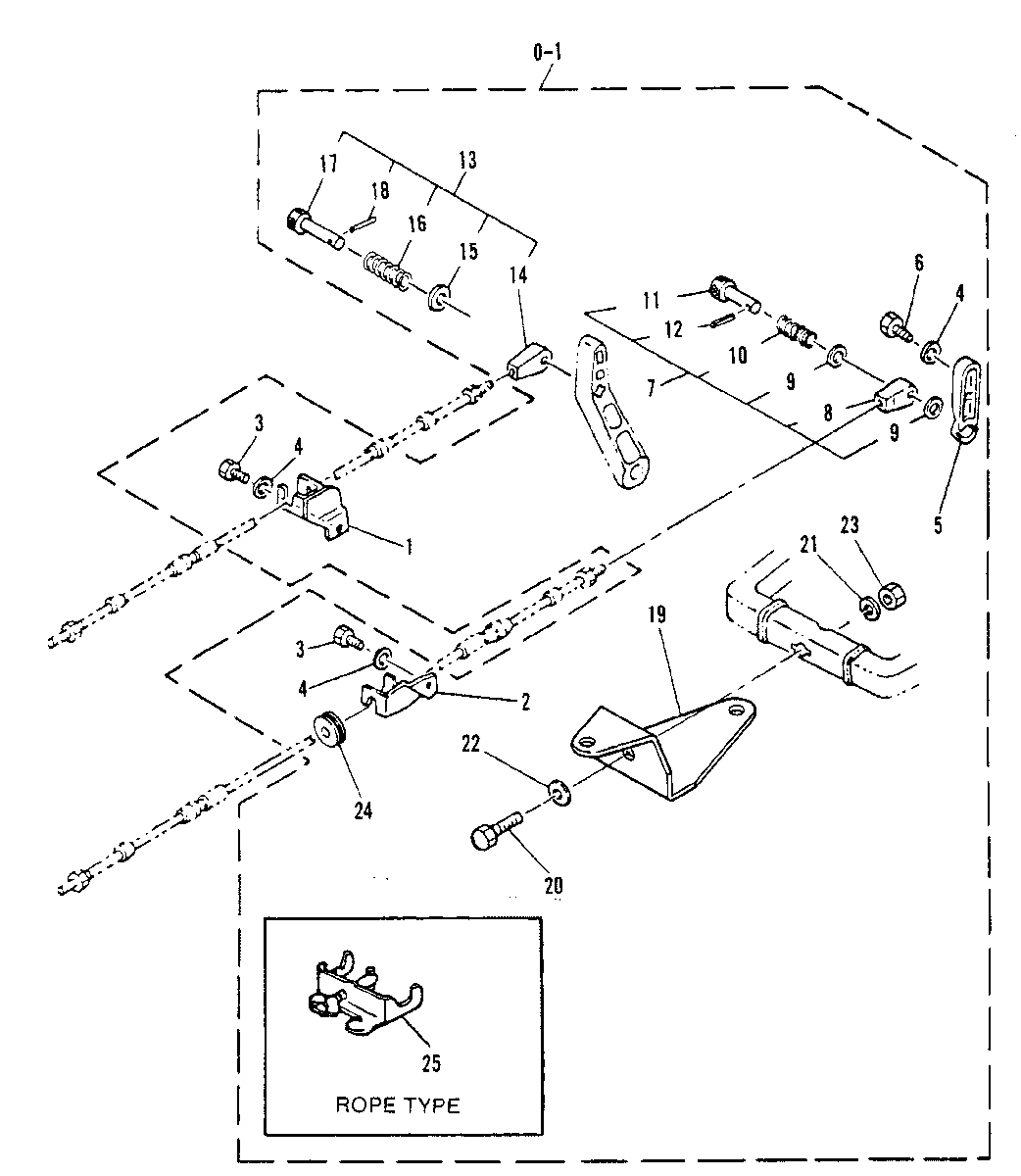

REMOTE CONTROL ATTACHING KIT для Mariner - 25C (THRU PROP. EXHAUST) 695-000101 THRU 023895
-
№АртикулНазвание
-
0-143991A1 ATTACHING KIT (BALL POST TYPE)
(SERIAL 00006086-09999999)ATTACHING KIT (BALL POST TYPE)
(SERIAL 00006086-09999999) -
0-18M0116998 ATTACHING KIT
(SERIAL 00000000-00006085)ATTACHING KIT
(SERIAL 00000000-00006085) -
184221M BRACKET, GEAR SHIFTBRACKET, GEAR SHIFT
-
283717M BRACKET, THROTTLEBRACKET, THROTTLE
-
310-826957M BOLT
(SERIAL 00019911-09999999)BOLT
(SERIAL 00019911-09999999) -
310-826957M BOLT
(SERIAL 00000000-00019910)BOLT
(SERIAL 00000000-00019910) -
412-82214M WASHERWASHER
-
584222M THROTTLE LEVERTHROTTLE LEVER
-
610-91772M BOLTBOLT
-
783933M CABLE END ASS'Y, THROTTLE
(SERIAL 00006086-09999999)CABLE END ASS'Y, THROTTLE
(SERIAL 00006086-09999999) -
783723M CABLE END ASS'Y, THROTTLE
(SERIAL 00000000-00006085)CABLE END ASS'Y, THROTTLE
(SERIAL 00000000-00006085) -
883934M CABLE END
(SERIAL 00006086-09999999)CABLE END
(SERIAL 00006086-09999999) -
883724M CABLE END
(SERIAL 00000000-00006085)CABLE END
(SERIAL 00000000-00006085) -
912-82216M WASHERWASHER
-
1024-83725M SPRINGSPRING
-
1117-814499M HOOKHOOK
-
1217-82146M PIN, ROLLPIN, ROLL
-
1383719M CABLE END ASS'Y, SHIFTCABLE END ASS'Y, SHIFT
-
1483720M CABLE ENDCABLE END
-
1512-82216M WASHERWASHER
-
1624-83721M SPRINGSPRING
-
1717-814500M HOOKHOOK
-
1817-82146M PIN, ROLLPIN, ROLL
-
1991635M BRACKET, STEERING
(SERIAL 00006086-09999999)BRACKET, STEERING
(SERIAL 00006086-09999999) -
1911670T BRACKET, STEERING
(SERIAL 00000000-00006085)BRACKET, STEERING
(SERIAL 00000000-00006085) -
2010-91636M BOLT
(SERIAL 00019911-09999999)BOLT
(SERIAL 00019911-09999999) -
2010-91636M BOLT
(SERIAL 00000000-00019910)BOLT
(SERIAL 00000000-00019910) -
2126-82248M WASHERWASHER
-
2212-82220M WASHER, LOCKWASHER, LOCK
-
2311-81785M LOCKNUT
(SERIAL 00009376-09999999)LOCKNUT
(SERIAL 00009376-09999999) -
2311-82395M NUT
(SERIAL 00000000-00009375)NUT
(SERIAL 00000000-00009375) -
2425-97031M GROMMETGROMMET
-
2583727M BRACKET, STEERING (ROPE TYPE)
(SERIAL 00019911-09999999)BRACKET, STEERING (ROPE TYPE)
(SERIAL 00019911-09999999)
