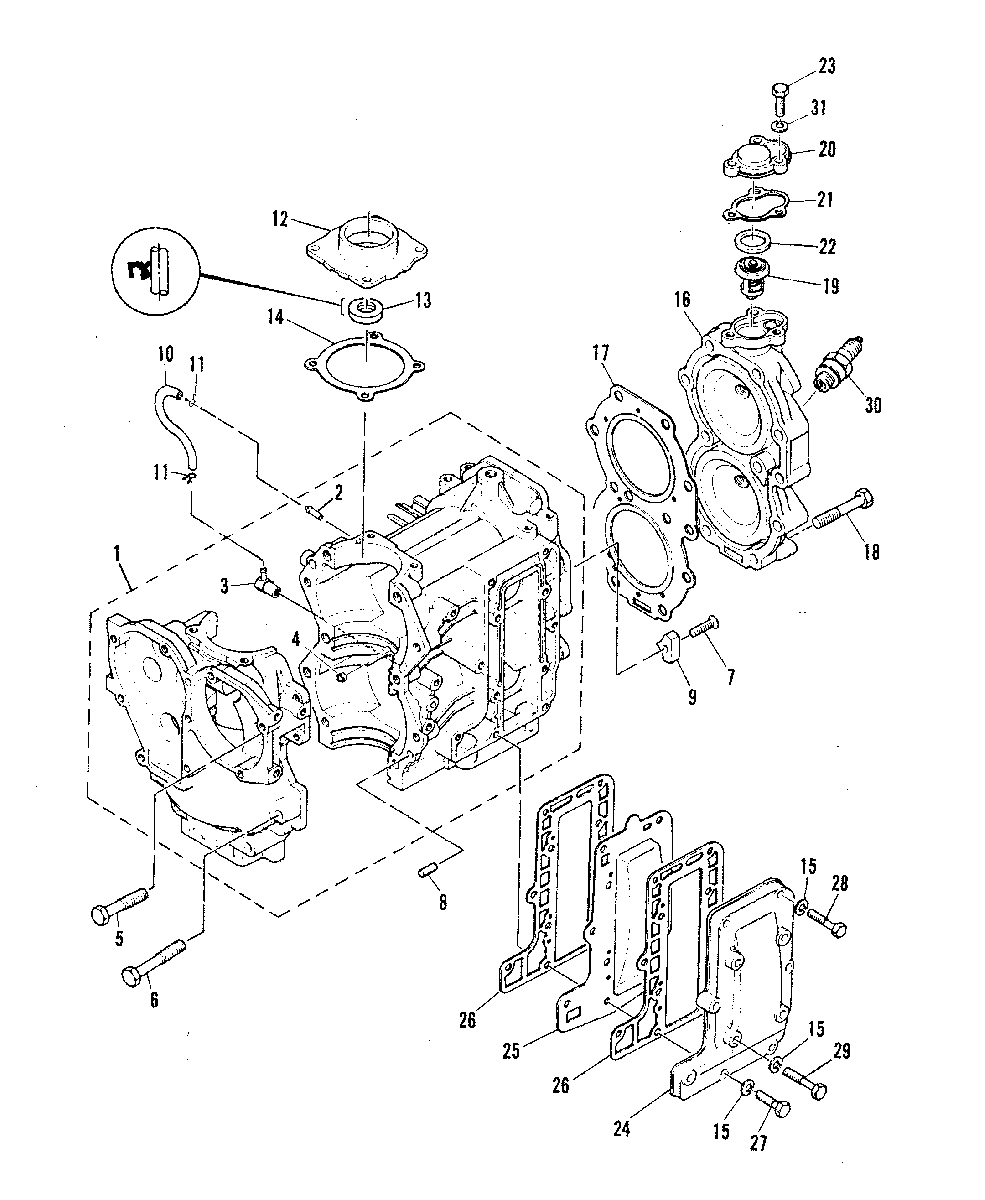

CRANKCASE AND CYLINDER HEAD для Mariner - 25C (THRU PROP. EXHAUST) 695-253862 AND UP
-
№АртикулНазвание
-
1870-9369M CRANKCASE ASS'YCRANKCASE ASS'Y
-
222-80122M FITTING, CRANKCASE DRAINFITTING, CRANKCASE DRAIN
-
321-80727M CHECK VALVE ASS'YCHECK VALVE ASS'Y
-
421-80107M VALVE, CHECKVALVE, CHECK
-
510-41885M BOLT, W/WASHERBOLT, W/WASHER
-
610-8M0101617 BOLT, W/WASHERBOLT, W/WASHER
-
710-95209M SCREWSCREW
-
817-82364M PIN, DOWELPIN, DOWEL
-
997-84732M ANODEANODE
-
1032-811045M HOSEHOSE
-
1154-82046M CLAMP, HOSECLAMP, HOSE
-
1281564M HOUSING, OIL SEAL (UPPER)HOUSING, OIL SEAL (UPPER)
-
1326-82245M OIL SEAL, CRANKSHAFT (UPPER)OIL SEAL, CRANKSHAFT (UPPER)
-
1427-81565M GASKET, OIL SEAL HOUSINGGASKET, OIL SEAL HOUSING
-
1512-82214M WASHERWASHER
-
16968-8400M HEAD, CYLINDERHEAD, CYLINDER
-
1727-81555 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
1810-41885M BOLT, W/WASHERBOLT, W/WASHER
-
19814554T01 THERMOSTATTHERMOSTAT
-
2081030M COVER, THERMOSTATCOVER, THERMOSTAT
-
2127-81031 GASKET, THERMOSTAT COVERGASKET, THERMOSTAT COVER
-
2212-81835M WASHERWASHER
-
2310-84058M BOLTBOLT
-
2481569M COVER, EXHAUST-OUTERCOVER, EXHAUST-OUTER
-
2581568M COVER, EXHAUST-INNERCOVER, EXHAUST-INNER
-
2627-81570 GASKET, EXHAUST COVERGASKET, EXHAUST COVER
-
2710-82405M BOLTBOLT
-
2810-83285M BOLTBOLT
-
2910-83285M BOLTBOLT
-
3033-8M0114739 SPARK PLUGSPARK PLUG
-
3113-82212M LOCKWASHERLOCKWASHER
-
3118969M POWERHEAD ASS'Y, COMPLETE
SERIAL 00031675-09999999POWERHEAD ASS'Y, COMPLETE
SERIAL 00031675-09999999 -
3118969M POWERHEAD ASS'Y, COMPLETE
SERIAL 00000000-00031674POWERHEAD ASS'Y, COMPLETE
SERIAL 00000000-00031674 -
3127-92575M GASKET SET, POWERHEADGASKET SET, POWERHEAD
