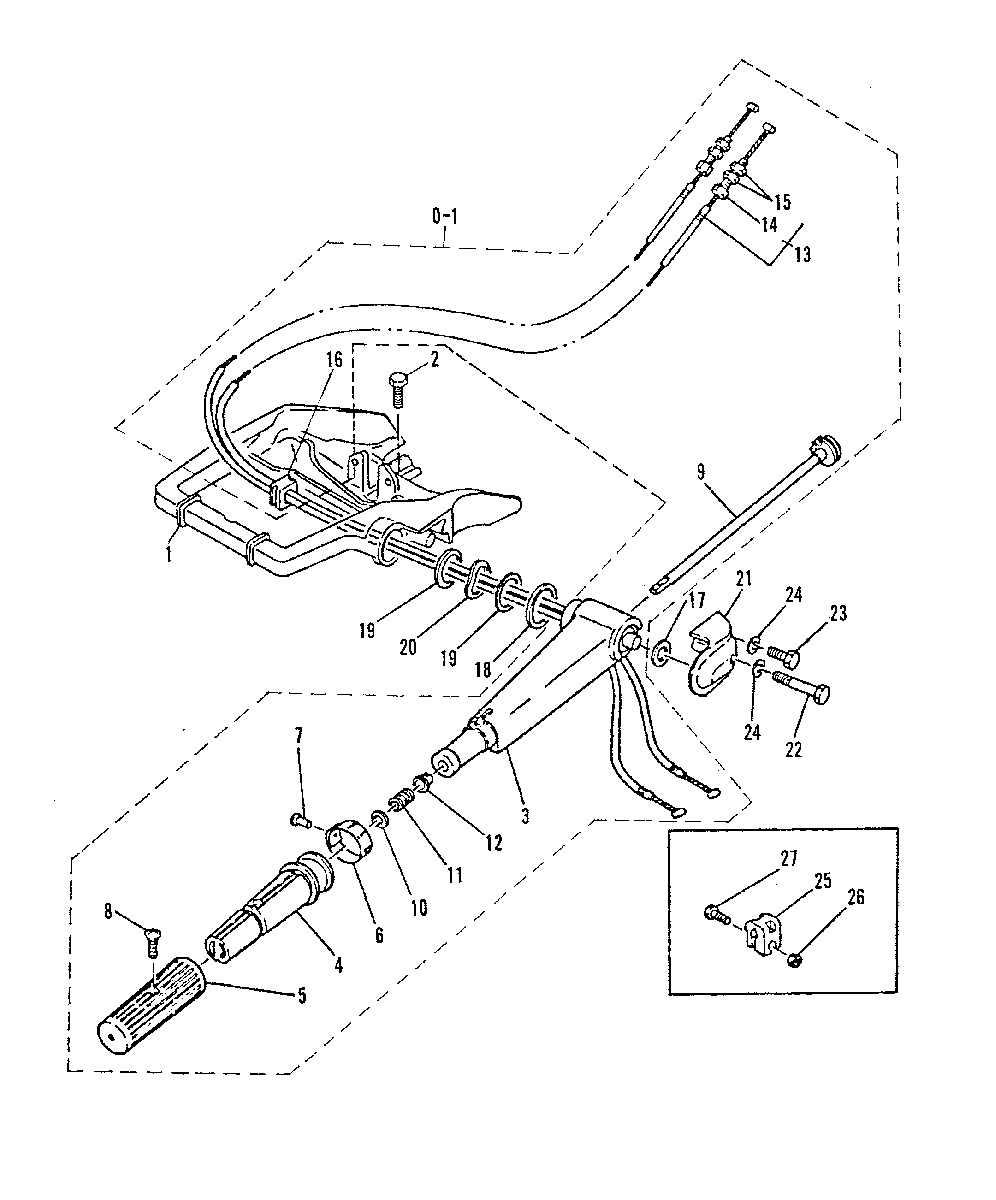

STEERING HANDLE для Mariner - 25C (THRU PROP. EXHAUST) 695-318174 AND UP
-
№АртикулНазвание
-
119113M BRACKET, STEERING
SERIAL 00031675-09999999BRACKET, STEERING
SERIAL 00031675-09999999 -
119113M BRACKET, STEERING
SERIAL 00000000-00031674BRACKET, STEERING
SERIAL 00000000-00031674 -
210-84830M BOLTBOLT
-
0-195673M STEERING HANDLE ASS'Y
ORDERING STEERING HANDLE ASSEMBLY AS A NEW ACCESSORY (NEW ADD ON ASSEMBLY), PARTS WITH REFERENCE NUMBERS 17 THRU 24 (INCLUSIVE) ARE ALSO REQUIRED.STEERING HANDLE ASS'Y
ORDERING STEERING HANDLE ASSEMBLY AS A NEW ACCESSORY (NEW ADD ON ASSEMBLY), PARTS WITH REFERENCE NUMBERS 17 THRU 24 (INCLUSIVE) ARE ALSO REQUIRED. -
396664M HANDLE, STEERINGHANDLE, STEERING
-
481585M HANDLE, THROTTLEHANDLE, THROTTLE
-
58M0080456 GRIP, THROTTLE HANDLEGRIP, THROTTLE HANDLE
-
642432M INDICATOR, THROTTLEINDICATOR, THROTTLE
-
717-81907M RIVETRIVET
-
810-811916M SCREW
SERIAL 00031675-09999999SCREW
SERIAL 00031675-09999999 -
810-811916M SCREW
SERIAL 00000000-00031674SCREW
SERIAL 00000000-00031674 -
984856M LEVER, THROTTLELEVER, THROTTLE
-
1012-82220M WASHER, THROTTLE SHAFTWASHER, THROTTLE SHAFT
-
1124-82095M SPRINGSPRING
-
1223-81945M BUSHING, STEERING ARMBUSHING, STEERING ARM
-
1341892M CABLE ASS'Y THROTTLECABLE ASS'Y THROTTLE
-
1410-815139M ADJUSTER, CABLEADJUSTER, CABLE
-
1511-81765M NUTNUT
-
1625-82064M GROMMETGROMMET
-
1723-82119M SPACERSPACER
-
1823-81861M SPACERSPACER
-
1912-84850M WASHERWASHER
-
2013-84851M WASHER, WAVEWASHER, WAVE
-
2184852M RETAINERRETAINER
-
2210-84931M BOLTBOLT
-
2310-84058M BOLTBOLT
-
2412-82214M WASHERWASHER
-
2582895M PIECE, FRICTIONPIECE, FRICTION
-
2611-83056M NUTNUT
-
2710-84058M BOLTBOLT
