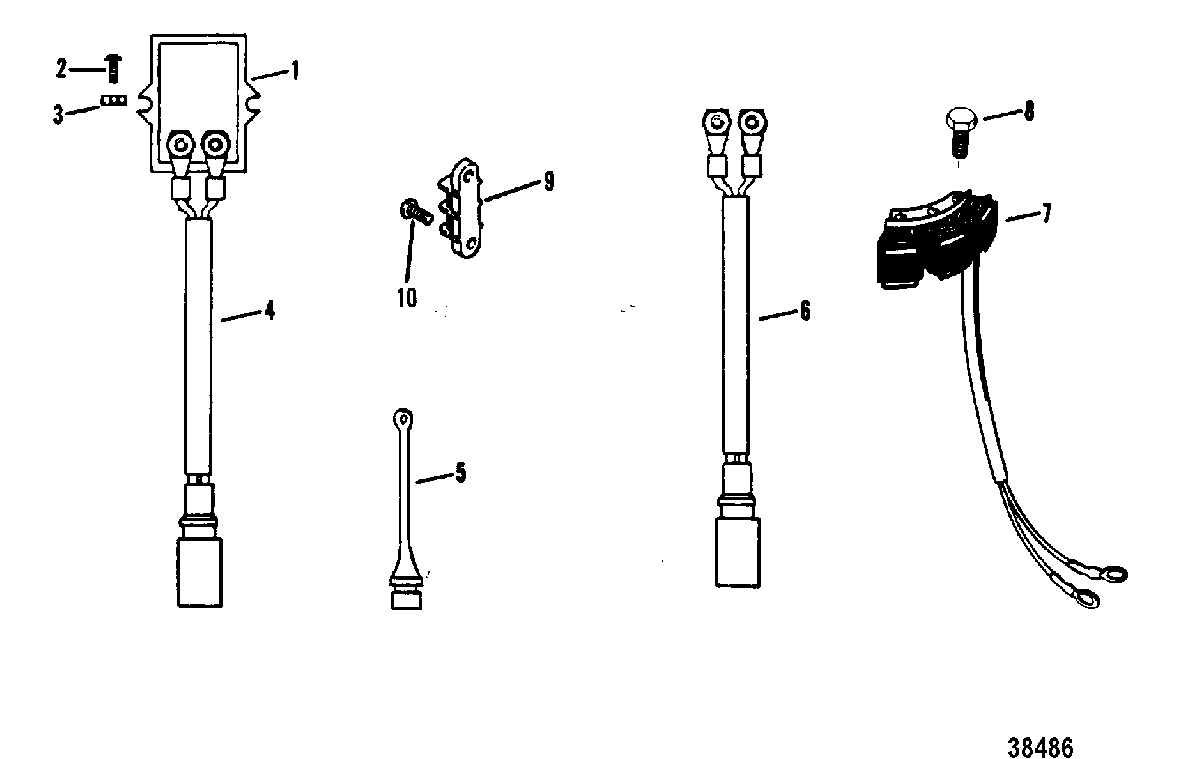

ELECTRICAL - BELGIUM ENGINES для Mariner - 25XD 9415101 THRU 9507380
-
№АртикулНазвание
-
195845T REGULATOR, VoltageREGULATOR, Voltage
-
210-92799 SCREW, (#10-16 x 1.12)SCREW, (#10-16 x 1.12)
-
311-45076 NUT, (#10-32) Brass, VOLTAGE REGULATOR TERMINALNUT, (#10-32) Brass, VOLTAGE REGULATOR TERMINAL
-
484-74725A2 HARNESS ASSEMBLY
VOLTAGE REGULATOR (BLACK/RED)HARNESS ASSEMBLY
VOLTAGE REGULATOR (BLACK/RED) -
571663 PLUG, HARNESSPLUG, HARNESS
-
684-65017A2 HARNESS ASSEMBLY, LIGHTING (EXTERNAL)HARNESS ASSEMBLY, LIGHTING (EXTERNAL)
-
786704A10 STATOR ASSEMBLYSTATOR ASSEMBLY
-
810-4000123 SCREW, (M5 x 30), STATOR ATTACHINGSCREW, (M5 x 30), STATOR ATTACHING
-
986-638131 TERMINAL BLOCKTERMINAL BLOCK
-
1010-48409 SCREW, (#10-16 x .625) Stainless Steel, TERMINAL BLOCKSCREW, (#10-16 x .625) Stainless Steel, TERMINAL BLOCK
