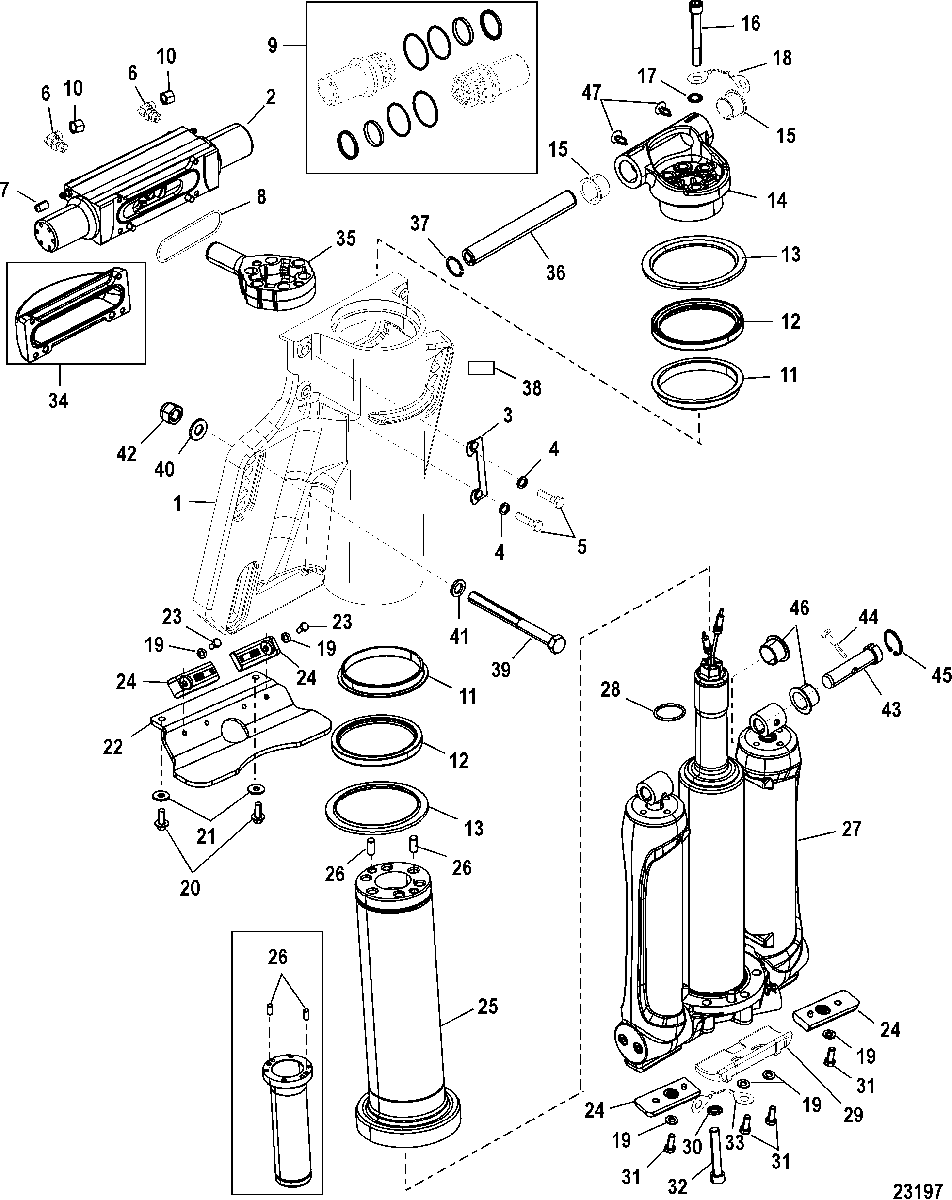

Power Trim/Steering Cylinder для Mariner - 275 VERADO (4-STROKE)(6 CYL.) 0P464488 THRU 0P520552
-
№АртикулНазвание
-
-NSS NOT SOLD SEPARATE, Transom AssemblyNOT SOLD SEPARATE, Transom Assembly
-
1880652T02 PEDESTALPEDESTAL
-
28M0118141 STEERING CYLINDER KIT
(Standard)STEERING CYLINDER KIT
(Standard) -
3893409 RETAINERRETAINER
-
412-895853 WASHERWASHER
-
510-88509530 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
622-889552 ELBOW
(Standard)ELBOW
(Standard) -
7889550 CAP, Bleeder - Vinyl
(Standard)CAP, Bleeder - Vinyl
(Standard) -
826-880667 SEALSEAL
-
98M0045604 SEAL KIT, Steering CylinderSEAL KIT, Steering Cylinder
-
1022-892524 CAP, Fitting
(Standard)CAP, Fitting
(Standard) -
1131-8806621 BEARINGBEARING
-
1226-880661 SEALSEAL
-
1331-8806561 BEARINGBEARING
-
14880654T03 HEAD, SteeringHEAD, Steering
-
1531-8806551 BEARING, (1.25 Inch)BEARING, (1.25 Inch)
-
1610-885094105 SCREW, (M14 x 105)SCREW, (M14 x 105)
-
1712-885112 WASHERWASHER
-
1888238T23 CABLE ASSEMBLYCABLE ASSEMBLY
-
1912-889545 WASHERWASHER
-
2010-4010720 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
2112-72397 WASHERWASHER
-
228M0045157 PLATE, Deflector (Silver)PLATE, Deflector (Silver)
-
2310-4000327 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
2497-893404 ANODEANODE
-
25880660T02 TUBE, SteeringTUBE, Steering
-
2617-885111 PIN, Dowel (.375 x .875)PIN, Dowel (.375 x .875)
-
278M0118296 POWER TRIM ASSEMBLY
SN# 1B245342 & BelowPOWER TRIM ASSEMBLY
SN# 1B245342 & Below -
278M0118296 POWER TRIM ASSEMBLY
SN# 1B245343 & UpPOWER TRIM ASSEMBLY
SN# 1B245343 & Up -
2825-895854 O-RINGO-RING
-
2997-880653 ANODEANODE
-
3012-889549 WASHERWASHER
-
3110-889543016 BOLTBOLT
-
3210-88510450 SCREWSCREW
-
3388238T24 CABLE ASSEMBLYCABLE ASSEMBLY
-
34893405T COVER
(Counter Rotation)COVER
(Counter Rotation) -
35880665T01 ARM, SteeringARM, Steering
-
3617-895390 TILT PINTILT PIN
-
3753-8M0038931 RING, RetainingRING, Retaining
-
38NSS NOT SOLD SEPARATE, Decal-Serial OverlaminateNOT SOLD SEPARATE, Decal-Serial Overlaminate
-
3910-8M0038370 SCREW, (.500-20 x 5.500)SCREW, (.500-20 x 5.500)
-
4012-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
4112-895062 WASHERWASHER
-
4211-82671117 NUT, (.500-20)NUT, (.500-20)
-
4317-8M0146467 PINPIN
-
4417-821539 PIN, TrilobePIN, Trilobe
-
4553-895304 RING, RetainingRING, Retaining
-
4631-8806641 BEARING, (.625 Inch)BEARING, (.625 Inch)
-
4719-95925 PLUGPLUG
