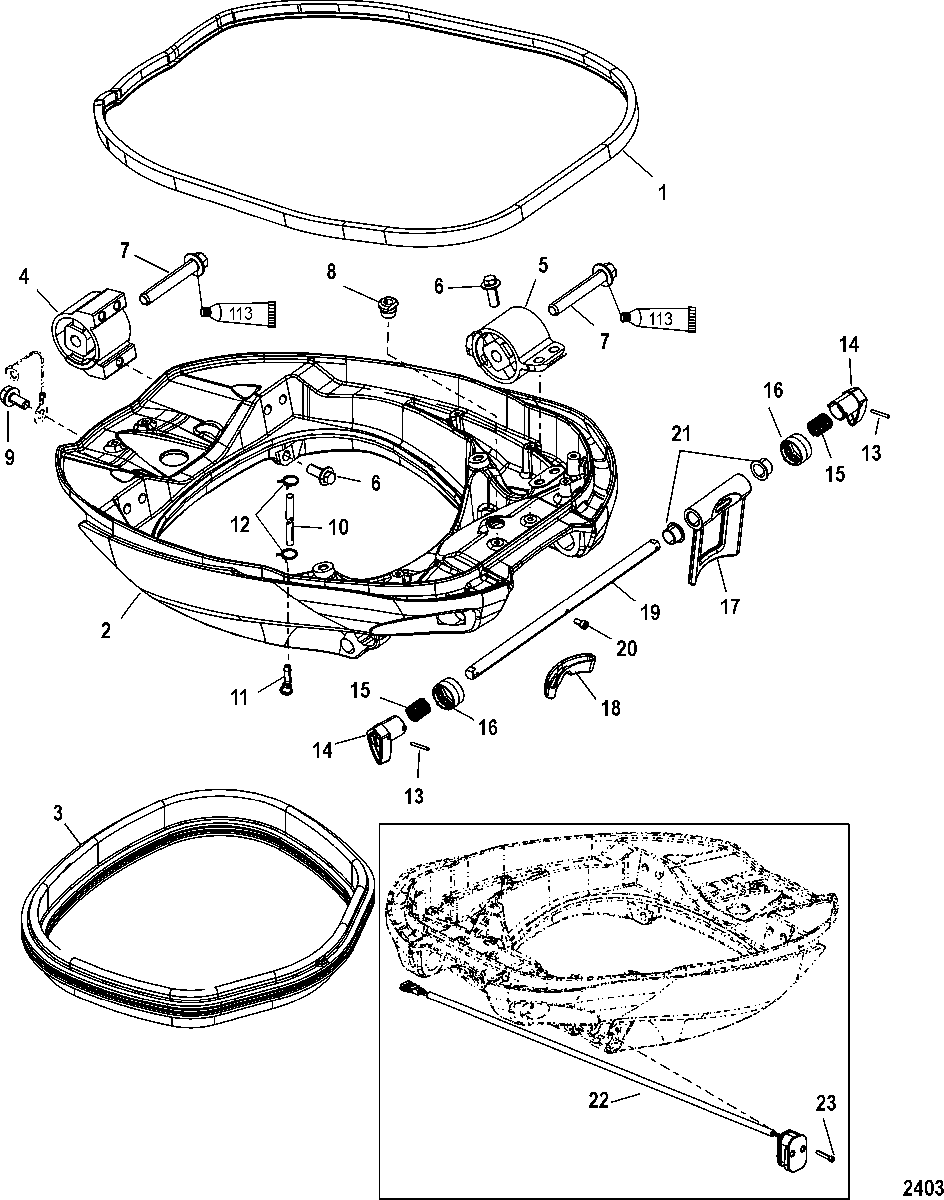

Mount Cradle для Mariner - 275 VERADO (4-STROKE)(6 CYL.) 1B381712 THRU 1B517433
-
№АртикулНазвание
-
18M0109275 SEALSEAL
-
2884887T07 MOUNT CRADLEMOUNT CRADLE
-
38M0060014 SEALSEAL
-
48M0103708 MOUNT, RearMOUNT, Rear
-
58M0103365 MOUNT, FrontMOUNT, Front
-
610-889745030 SCREW, (M12 x 30)SCREW, (M12 x 30)
-
710-8M0103832 SCREW, (M16 x 90)SCREW, (M16 x 90)
-
825-12602002 GROMMETGROMMET
-
910-40011126 SCREW, (M6 x 13) Stainless SteelSCREW, (M6 x 13) Stainless Steel
-
1032-8M0108355 HOSE, (57.00 Inches Bulk), Cut to 35 InchesHOSE, (57.00 Inches Bulk), Cut to 35 Inches
-
1122-895797001 FITTING, TelltaleFITTING, Telltale
-
1254-895851 CLAMP, (8.00 Inches)CLAMP, (8.00 Inches)
-
1317-73194 PIN, Roll (.125 x 1.12)PIN, Roll (.125 x 1.12)
-
14880649002 LEVER, Tilt LockLEVER, Tilt Lock
-
1524-47968 SPRINGSPRING
-
16889540A03 CLUTCH KITCLUTCH KIT
-
178M0109693 BRACKET, Tilt LockBRACKET, Tilt Lock
-
188M0076907 PAD, Tilt LockPAD, Tilt Lock
-
19880650003 SHAFT, Tilt LockSHAFT, Tilt Lock
-
2010-889546 SCREW, (M5 x 10)SCREW, (M5 x 10)
-
2131-8806641 BEARING, (.625 Inch)BEARING, (.625 Inch)
-
22888590002 SENSORSENSOR
-
2310-889547 SCREW, (M5 x 30)SCREW, (M5 x 30)
