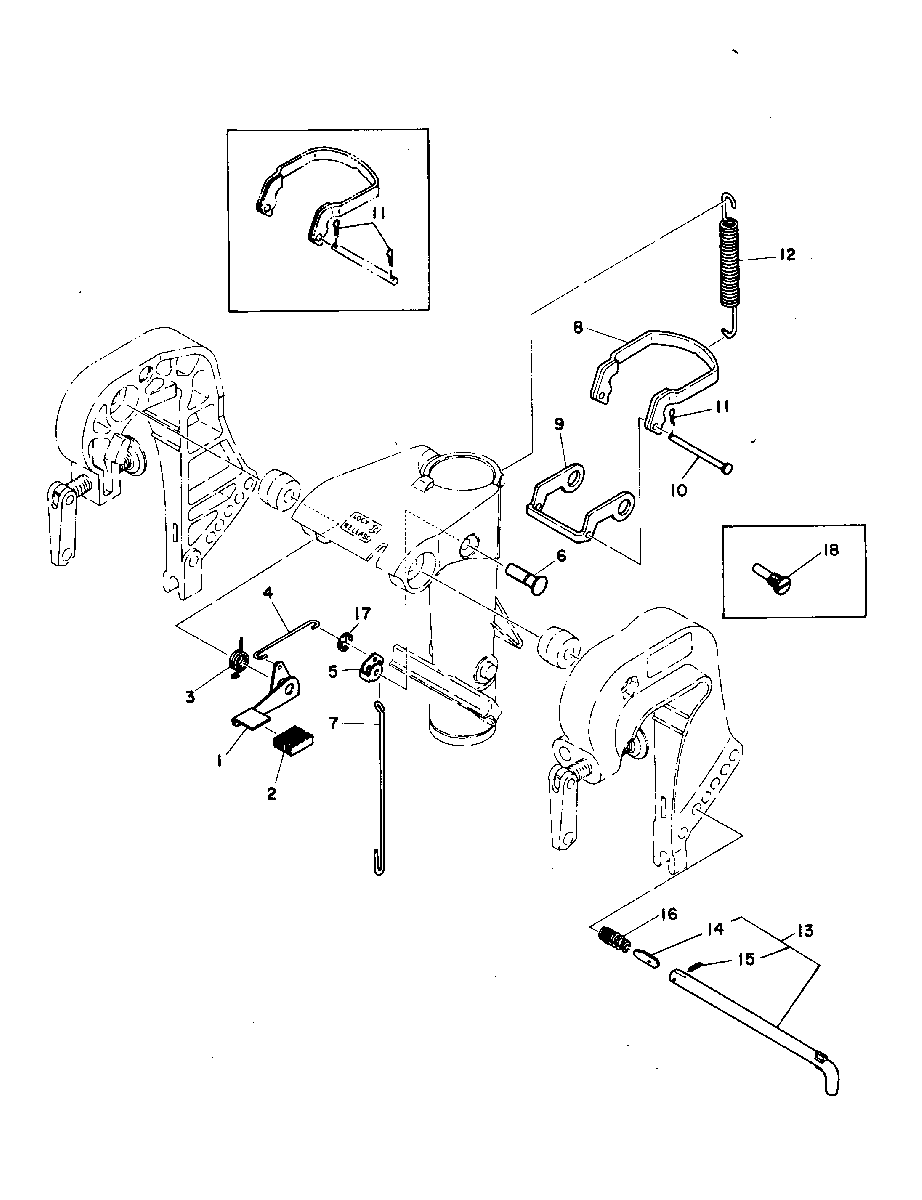

REVERSE LOCK для Mariner - 28 664-04605 AND BELOW
-
№АртикулНазвание
-
180646M LEVER, LOCK/RELEASELEVER, LOCK/RELEASE
-
280647M COVER, LEVERCOVER, LEVER
-
324-82109M SPRING, TENSIONSPRING, TENSION
-
480644M LINK, REVERSE LOCK LEVERLINK, REVERSE LOCK LEVER
-
580648M CAM, TILTCAM, TILT
-
617-81895M PIN
SERIAL 00000000-00001726PIN
SERIAL 00000000-00001726 -
780645M ROD, REVERSE LOCK LEVERROD, REVERSE LOCK LEVER
-
884837M HOOK, REVERSE LOCK-REARHOOK, REVERSE LOCK-REAR
-
980643M HOOK, REVERSE LOCK-FRONTHOOK, REVERSE LOCK-FRONT
-
1017-81882M PIN, WITH HOLEPIN, WITH HOLE
-
1118-82125M PIN, REVERSE LOCK SHAFT
SERIAL 00000000-00001725PIN, REVERSE LOCK SHAFT
SERIAL 00000000-00001725 -
1118-82125M PIN, REVERSE LOCK SHAFT
SERIAL 00001726-09999999PIN, REVERSE LOCK SHAFT
SERIAL 00001726-09999999 -
1224-19110M SPRING, REVERSE LOCKSPRING, REVERSE LOCK
-
1317-94569M TILT LOCK PIN ASS'Y
SERIAL 00000000-00003675TILT LOCK PIN ASS'Y
SERIAL 00000000-00003675 -
1317-94569M TILT LOCK PIN ASS'Y
SERIAL 00003676-09999999TILT LOCK PIN ASS'Y
SERIAL 00003676-09999999 -
1481149M STOPPER, PLATE
SERIAL 00000000-00025695STOPPER, PLATE
SERIAL 00000000-00025695 -
1482857M STOPPER, PLATE
SERIAL 00003676-09999999STOPPER, PLATE
SERIAL 00003676-09999999 -
1517-82144M PINPIN
-
1624-82100M SPRING, TILT LOCK PINSPRING, TILT LOCK PIN
-
1753-82330M CIRCLIP
SERIAL 00001726-09999999CIRCLIP
SERIAL 00001726-09999999 -
1810-82697M SCREW, CAM PIVOT
SERIAL 00000000-00001725SCREW, CAM PIVOT
SERIAL 00000000-00001725
