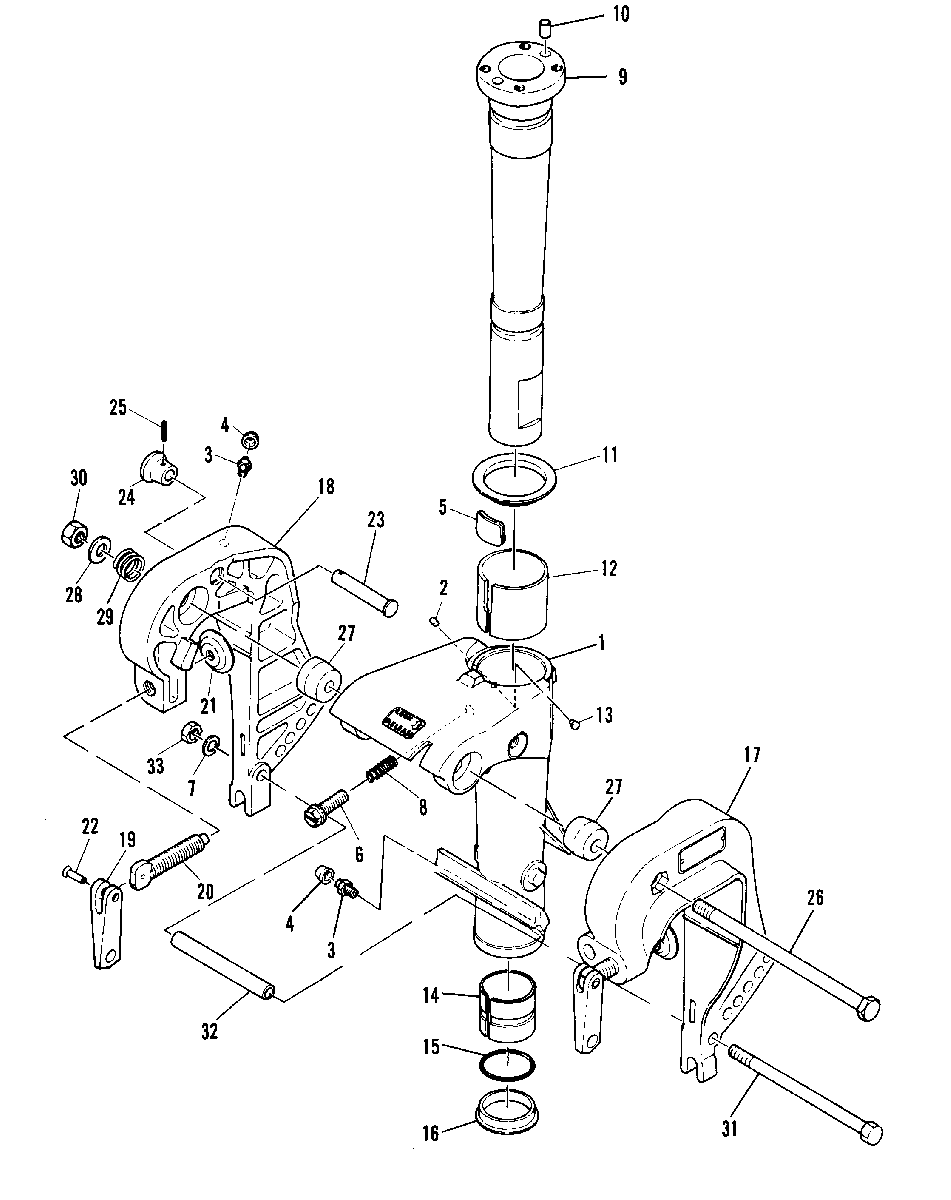

CLAMP AND SWIVEL BRACKET для Mariner - 28 664-04606 AND UP
-
№АртикулНазвание
-
11485-6796M SWIVEL BRACKETSWIVEL BRACKET
-
222-81917M PLUGPLUG
-
322-82369M FITTING, PIVOT SHAFT BUSHING, GREASEFITTING, PIVOT SHAFT BUSHING, GREASE
-
481439M CAP, GRTEASE FITTINGCAP, GRTEASE FITTING
-
580633M P:LATE, FRICTIONP:LATE, FRICTION
-
610-81754M SCREWSCREW
-
713-82215M WASHER, LOCKWASHER, LOCK
-
824-82088M SPRING, FRICTION PLATE SCREWSPRING, FRICTION PLATE SCREW
-
984833M SHAFT, STEERING PIVOTSHAFT, STEERING PIVOT
-
1017-82368M PINK DOWELPINK DOWEL
-
1112-81873M COLLAR, THRUST & PIVOT SHAFTCOLLAR, THRUST & PIVOT SHAFT
-
1223-81964M BUSHING, PIVOT SHAFT-UPPERBUSHING, PIVOT SHAFT-UPPER
-
1317-81887M PINPIN
-
1423-81959M BUSHING, PIVOT SHAFT-LOWERBUSHING, PIVOT SHAFT-LOWER
-
1525-82274M O-RING, PIVOT SHAFT BUSHINGO-RING, PIVOT SHAFT BUSHING
-
1623-81961M COLLAR, THRUST-PIVOT SHAFTCOLLAR, THRUST-PIVOT SHAFT
-
171484-6794M CLAMP BRACKET, PORTCLAMP BRACKET, PORT
-
181484-6795M CLAMP BRACKET, STARBOARDCLAMP BRACKET, STARBOARD
-
19809959M HANDLE, TRANSOM CLAMP SCREWHANDLE, TRANSOM CLAMP SCREW
-
2010-81756M SCREW, TRANSOM CLAMPSCREW, TRANSOM CLAMP
-
2112-80638M PAD, TRANSOM CLAMP SCREWPAD, TRANSOM CLAMP SCREW
-
2217-81888M PIN, ROLLPIN, ROLL
-
2317-81150M SHAFT, TILT STOPSHAFT, TILT STOP
-
2495426M KNOB, TILT STOP SHAFTKNOB, TILT STOP SHAFT
-
2517-82148M PINPIN
-
2610-81146M BOLTBOLT
-
2780639M MOUNT, RUBBER CLAMP BRACKETMOUNT, RUBBER CLAMP BRACKET
-
2812-81806M WASHERWASHER
-
2924-82101M SPRINGSPRING
-
3011-82395M NUTNUT
-
3110-82924M BOLT, CLAMP BRACKETBOLT, CLAMP BRACKET
-
3223-19108M SPACEER, CLAMP BRACKET STUDSPACEER, CLAMP BRACKET STUD
-
3311-82382M NUTNUT
