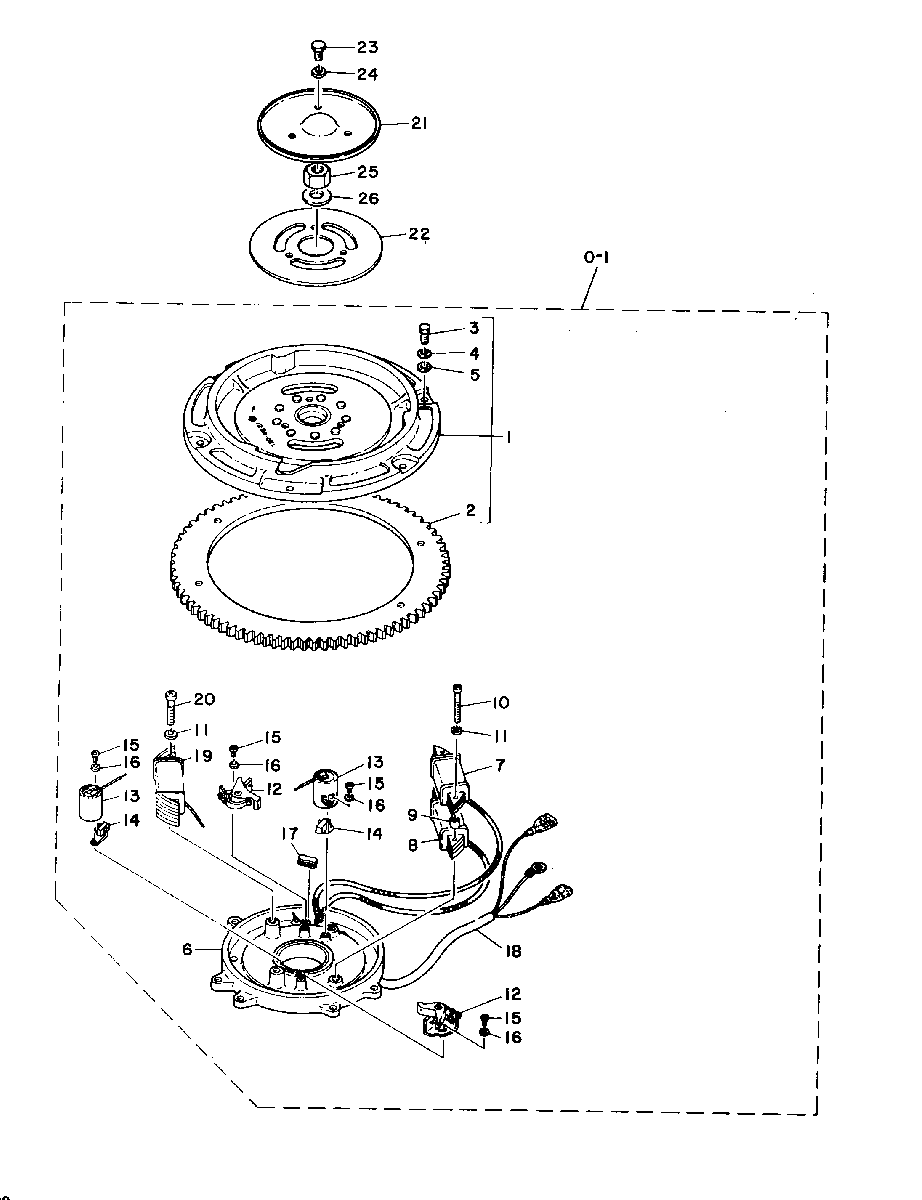

FLYWHEEL MAGNETO для Mariner - 28 664-25800 AND BELOW
-
№АртикулНазвание
-
0-1253-6799M FLYWHEEL MAGNETO ASS'Y (STD-MAN)FLYWHEEL MAGNETO ASS'Y (STD-MAN)
-
0-180683M FLYWHEEL MAGNETO ASS'Y (STD-ELEC)FLYWHEEL MAGNETO ASS'Y (STD-ELEC)
-
180687M FLYWHEEL ASS'YFLYWHEEL ASS'Y
-
243-80711M RING GEARRING GEAR
-
310-82404M BOLTBOLT
-
413-82212M WASHERWASHER
-
512-82213M WASHERWASHER
-
680684M BASE, MAGNETOBASE, MAGNETO
-
780551M PRIMARY IGNITION COIL, #1 CYLPRIMARY IGNITION COIL, #1 CYL
-
880552M PRIMARY IGNITION COIL, #2 CYLPRIMARY IGNITION COIL, #2 CYL
-
923-80555M SPACER, COILSPACER, COIL
-
1010-80556M SCREW, COIL ATTACHINGSCREW, COIL ATTACHING
-
1113-82186M LOCK WASHER, COIL SCREWLOCK WASHER, COIL SCREW
-
1280930M BREAKER ASS'YBREAKER ASS'Y
-
1380558M CONDENSERCONDENSER
-
1480025M LUBRICATORLUBRICATOR
-
1510-82500M SCREWSCREW
-
1613-82206M LOCK WASHERLOCK WASHER
-
1725-83316M GROMMET, MAGNETO BASEGROMMET, MAGNETO BASE
-
1884-92594M LEAD WIRELEAD WIRE
-
1980553M LIGHTING COILLIGHTING COIL
-
2010-82522M SCREWSCREW
-
2010-82522M SCREWSCREW
-
2180688M COVER, FLYWHEELCOVER, FLYWHEEL
-
2227-80690M GASKET, FLYWHEEL COVERGASKET, FLYWHEEL COVER
-
2310-91772M BOLT, COVER ATTACHINGBOLT, COVER ATTACHING
-
2412-82213M WASHER, COVER BOLTWASHER, COVER BOLT
-
2511-81770M NUT, FLYWHEEL ATTACHINGNUT, FLYWHEEL ATTACHING
-
2612-81814M WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
