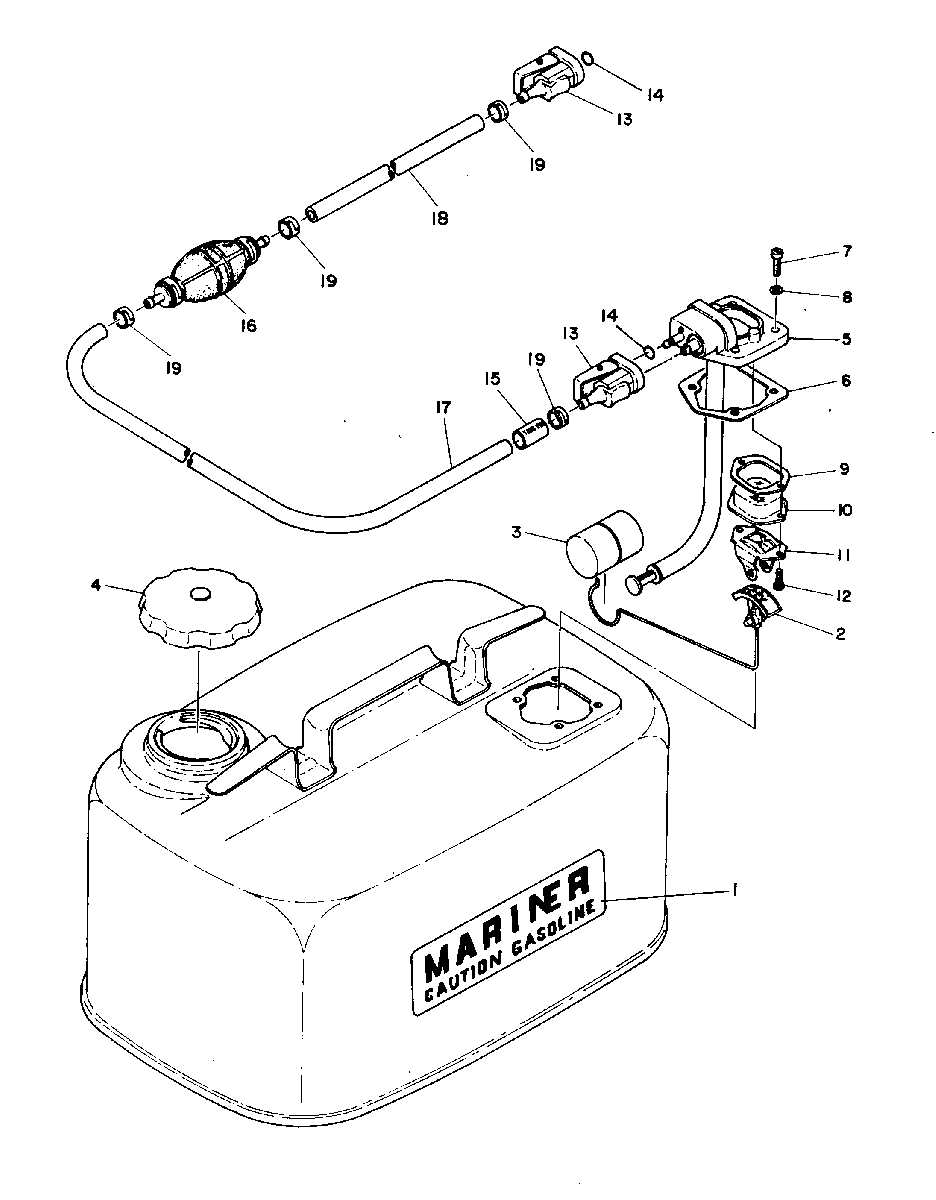

FUEL TANK (INTERNATIONAL) для Mariner - 28 664-38145 AND BELOW
-
№АртикулНазвание
-
0-11252-6836M FUEL TANK ASS'YFUEL TANK ASS'Y
-
137-82984M GRAPHIC, SIDEGRAPHIC, SIDE
-
281318M INDICATORINDICATOR
-
381319M FLOAT, INDICATORFLOAT, INDICATOR
-
481694M FUEL TANK CAP ASS'YFUEL TANK CAP ASS'Y
-
581321M HOUSING, FUEL CONNECTORHOUSING, FUEL CONNECTOR
-
627-81320M GASKET, HOUSING TO TANKGASKET, HOUSING TO TANK
-
710-83356M SCREW, HOUSING ATTACHINGSCREW, HOUSING ATTACHING
-
812-95501M WASHER, HOUSING SCREWWASHER, HOUSING SCREW
-
927-17540M GASKET, HOUSING TO LENS INDICATORGASKET, HOUSING TO LENS INDICATOR
-
1080269M LENS, INDICATORLENS, INDICATOR
-
1180268M SUPPORT, INDICATORSUPPORT, INDICATOR
-
1210-83523M SCREW, SUPPORT ATTACHINGSCREW, SUPPORT ATTACHING
-
0-232-877681Q8 FUEL HOSE ASS'YFUEL HOSE ASS'Y
-
1322-14213Q CONNECTOR HOUSINGCONNECTOR HOUSING
-
1425-82789M O-RINGO-RING
-
1523-81327M SLEEVE, HOSESLEEVE, HOSE
-
1689396Q01 BULB, PRIMERBULB, PRIMER
-
1732-94727M HOSE (CONNECTOR HOUSING TO BULB)HOSE (CONNECTOR HOUSING TO BULB)
-
1832-94727M HOSE, BULB TO CONNECTORHOSE, BULB TO CONNECTOR
-
1954-16725M CLAMP, HOSECLAMP, HOSE
