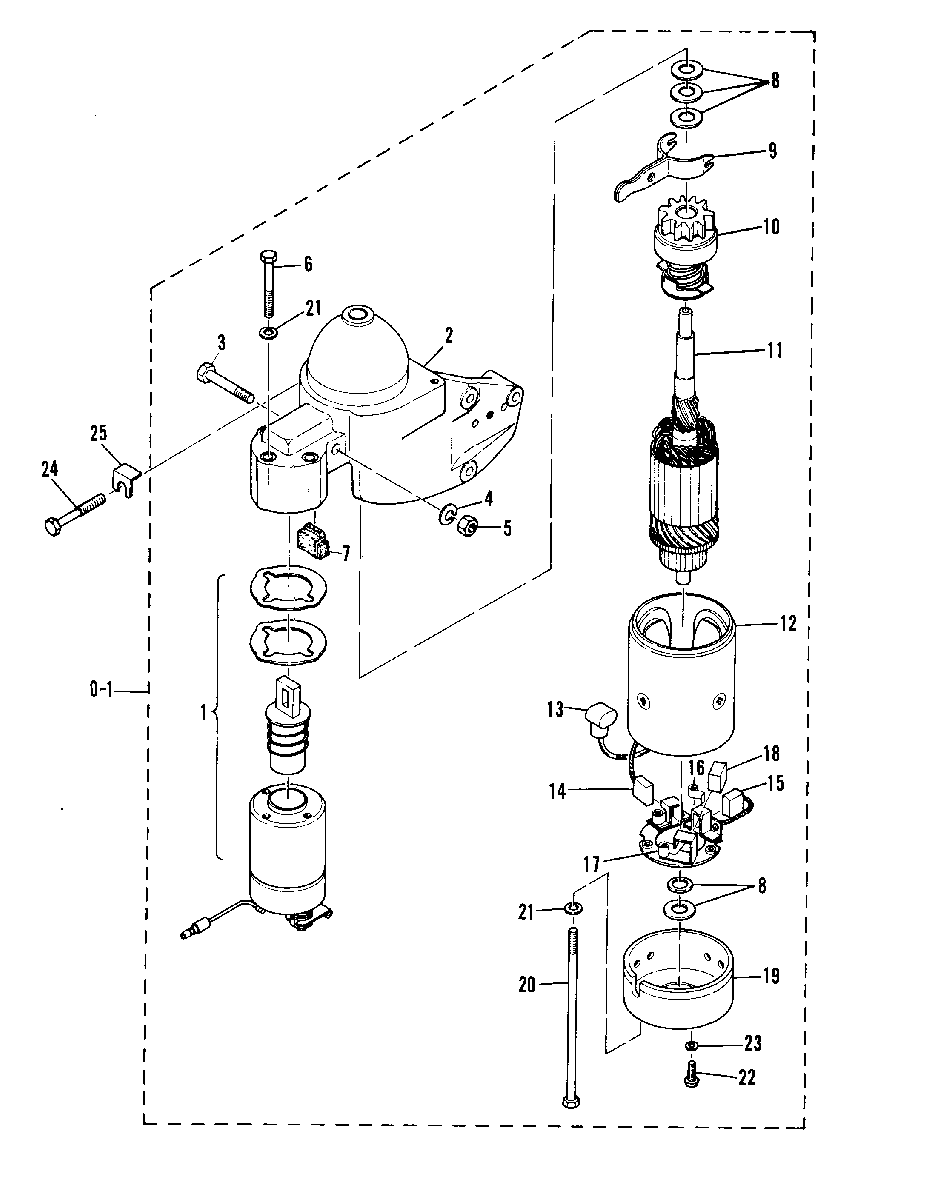

ELECTRIC STARTER MOTOR для Mariner - 28 664-56821 AND UP
-
№АртикулНазвание
-
0-150-80691M STARTER MOTOR ASS'YSTARTER MOTOR ASS'Y
-
180709M SOLENOID ASS'Y, STARTER MOTORSOLENOID ASS'Y, STARTER MOTOR
-
280703M COVER, DRIVE ENDCOVER, DRIVE END
-
310-80701M BOLTBOLT
-
413-82212M WASHER, LOCKWASHER, LOCK
-
511-82389M NUTNUT
-
610-80706M BOLTBOLT
-
725-80702M DAMPENER, SOLENOIDDAMPENER, SOLENOID
-
812-80692M WASHER KITWASHER KIT
-
980705M LEVER, SOLENOIDLEVER, SOLENOID
-
1043-80704M PINION, STARTERPINION, STARTER
-
1180707M ARMATURE ASS'YARMATURE ASS'Y
-
1280693M FRAME AND FIELD ASS'YFRAME AND FIELD ASS'Y
-
1380710M CAP, FIELD LEADCAP, FIELD LEAD
-
1480694M BRUSH, FIELD LEADBRUSH, FIELD LEAD
-
1580695M BRUSH, BRUSH PLATE LEADBRUSH, BRUSH PLATE LEAD
-
1624-80696M SPRING, BRUSHSPRING, BRUSH
-
1724-80697M SPRING, BRUSH PLATESPRING, BRUSH PLATE
-
1812-80700M :IECE, FRICTION:IECE, FRICTION
-
1980698M COVER, COMMUTATOR LEADCOVER, COMMUTATOR LEAD
-
2010-80699M THRU-BOLTTHRU-BOLT
-
2113-82186M WASHER, LOCKWASHER, LOCK
-
2210-82515M SCREWSCREW
-
2313-82206M WASHER, LOCKWASHER, LOCK
-
2410-827043M BOLTBOLT
-
2515-80712M SHIMSHIM
