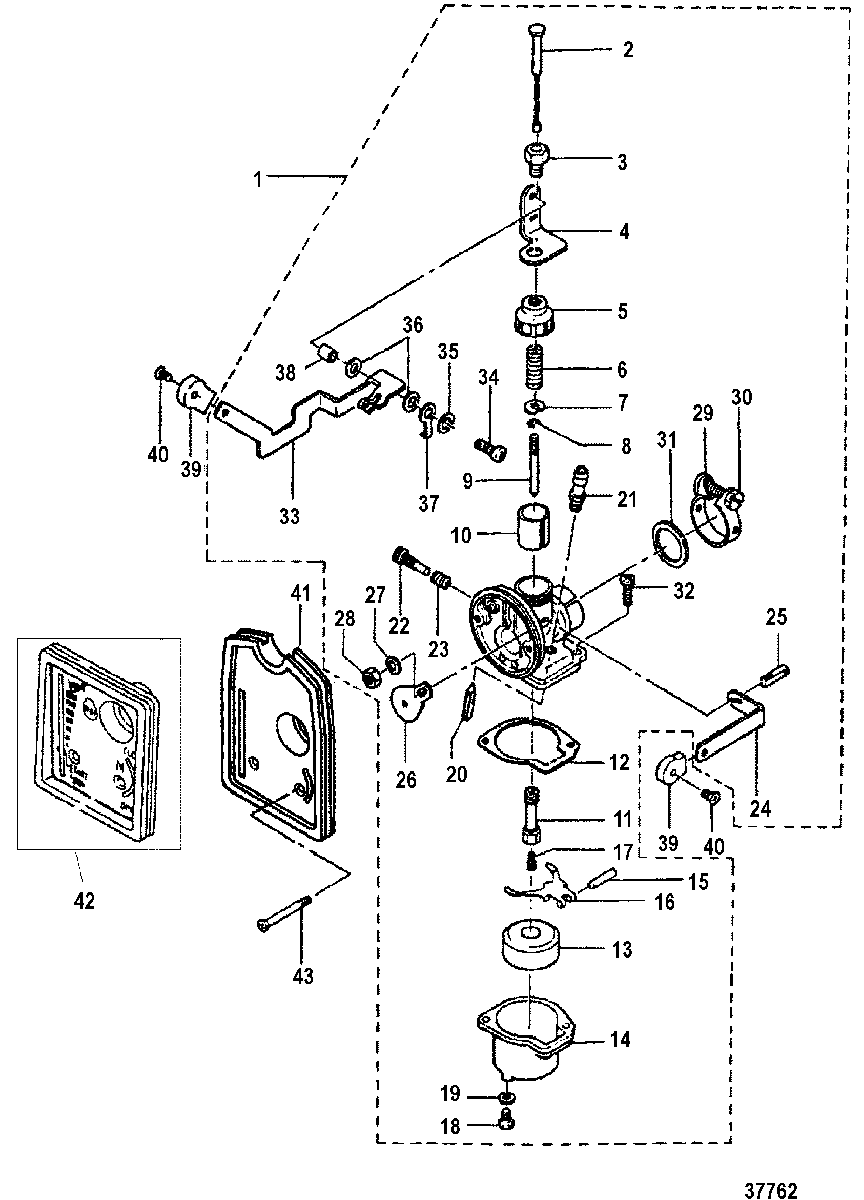

CARBURETOR для Mariner - 3 0A855097 THRU 0G710612

№

Артикул

Название
1

3303-8231752 CARBURETOR ASSEMBLY
(3)

CARBURETOR ASSEMBLY
(3)

7 070 ₽
1

3303-8230402 CARBURETOR ASSEMBLY
(2.5) SN# USA-0G574241/BEL-9973099 & Below

CARBURETOR ASSEMBLY
(2.5) SN# USA-0G574241/BEL-9973099 & Below

5 720 ₽
1

3303-823040A4 CARBURETOR
(2.5) SN# USA-0G574242/BEL-9973100 & Up

CARBURETOR
(2.5) SN# USA-0G574242/BEL-9973100 & Up

14 950 ₽
2

95252 WIRE, Throttle

WIRE, Throttle

1 150 ₽
3

10-95321 BOLT

BOLT

750 ₽
4

95253 BRACKET

BRACKET

0 ₽
5

95254 CAP

CAP

0 ₽
6

24-95322 SPRING

SPRING

0 ₽
7

95255 PLATE

PLATE

0 ₽
8

53-95323 E RING

E RING

270 ₽
9

815126A1 JET NEEDLE
(SEE NOTE 1)

JET NEEDLE
(SEE NOTE 1)

0 ₽
9

823041 JET NEEDLE
(2.5) (SEE NOTE 2)

JET NEEDLE
(2.5) (SEE NOTE 2)

0 ₽
9

8151263 JET NEEDLE
(2.5) SN# USA-0G574242/BEL-9973100 & Up

JET NEEDLE
(2.5) SN# USA-0G574242/BEL-9973100 & Up

530 ₽
9

8151261 JET NEEDLE
(3)

JET NEEDLE
(3)

0 ₽
10

95257 VALVE, Throttle
SN# USA-0G574241/BEL-9973099 & Below

VALVE, Throttle
SN# USA-0G574241/BEL-9973099 & Below

0 ₽
10

952573 VALVE, Throttle
SN# USA-0G574242/BEL-9973100 & Up

VALVE, Throttle
SN# USA-0G574242/BEL-9973100 & Up

2 190 ₽
11

815126A1 JET NEEDLE

JET NEEDLE

0 ₽
12

27-95324 GASKET

GASKET

440 ₽
13

95259 FLOAT

FLOAT

800 ₽
14

95260 FLOAT BOWL

FLOAT BOWL

1 940 ₽
15

17-95327 PIN, Hinge

PIN, Hinge

100 ₽
16

95263A1 HINGE

HINGE

4 170 ₽
16

952621 HINGE

HINGE

550 ₽
17

815029 MAIN JET (#92)
SN# USA-0G574241/BEL-9973099 & Below

MAIN JET (#92)
SN# USA-0G574241/BEL-9973099 & Below

0 ₽
17

8150291 MAIN JET (#80)
SN# USA-0G574242/BEL-9973100 & Up

MAIN JET (#80)
SN# USA-0G574242/BEL-9973100 & Up

0 ₽
18

10-953251 SCREW

SCREW

280 ₽
19

27-95326 GASKET

GASKET

130 ₽
19

27-95326 GASKET

GASKET

130 ₽
20

95263A1 VALVE, Needle

VALVE, Needle

4 170 ₽
20

95263A1 HINGE

HINGE

4 170 ₽
21

95263A1 SEAT

SEAT

4 170 ₽
21

952641 SEAT, Needle Valve

SEAT, Needle Valve

980 ₽
22

10-95328 SCREW

SCREW

340 ₽
23

24-95329 SPRING

SPRING

0 ₽
24

95266 LEVER, Shutter

LEVER, Shutter

0 ₽
25

10-95331 SCREW

SCREW

0 ₽
26

95265 PLATE, Choke

PLATE, Choke

0 ₽
27

13-400256 LOCKWASHER, (M6)

LOCKWASHER, (M6)

270 ₽
28

11-95330 NUT

NUT

0 ₽
29

54-95332 CLAMP

CLAMP

360 ₽
30

10-95333 SCREW

SCREW

520 ₽
31

25-811601 O-RING

O-RING

590 ₽
32

10-815071 SCREW

SCREW

180 ₽
33

95268 LEVER, Throttle

LEVER, Throttle

2 040 ₽
34

10-815072 SCREW

SCREW

170 ₽
35

13-95238 LOCKWASHER

LOCKWASHER

0 ₽
36

27-95336 GASKET

GASKET

150 ₽
37

23-952867 BRACKET
(SEE NOTE 1)

BRACKET
(SEE NOTE 1)

300 ₽
37

952672 BRACKET

BRACKET

350 ₽
38

952672 COLLAR
SN# USA-0G574241/BEL-9973099 & Below

COLLAR
SN# USA-0G574241/BEL-9973099 & Below

350 ₽
38

23-952867 COLLAR
SN# USA-0G574242/BEL-9973100 & Up

COLLAR
SN# USA-0G574242/BEL-9973100 & Up

300 ₽
39

95269 KNOB

KNOB

180 ₽
40

10-95338 SCREW

SCREW

120 ₽
41

815073 COVER
(BLACK)

COVER
(BLACK)

760 ₽
41

815132 COVER
(MARINER GRAY) SN# USA-0G574241/BEL-9973099 & Below

COVER
(MARINER GRAY) SN# USA-0G574241/BEL-9973099 & Below

0 ₽
41

815073 COVER
(FORCE GRAY)

COVER
(FORCE GRAY)

760 ₽
42

8150731 COVER
(BLACK) SN# USA-0G574242/BEL-9973100 & Up

COVER
(BLACK) SN# USA-0G574242/BEL-9973100 & Up

710 ₽
42

8150732 COVER
(MARINER GRAY) SN# USA-0G574242/BEL-9973100 & Up

COVER
(MARINER GRAY) SN# USA-0G574242/BEL-9973100 & Up

0 ₽
43

10-95339 SCREW

SCREW

140 ₽
-

855546A4 REPAIR KIT, Carburetor
(2.5)

REPAIR KIT, Carburetor
(2.5)

5 290 ₽
-

27-898101928 GASKET SET, Powerhead

GASKET SET, Powerhead

3 730 ₽
