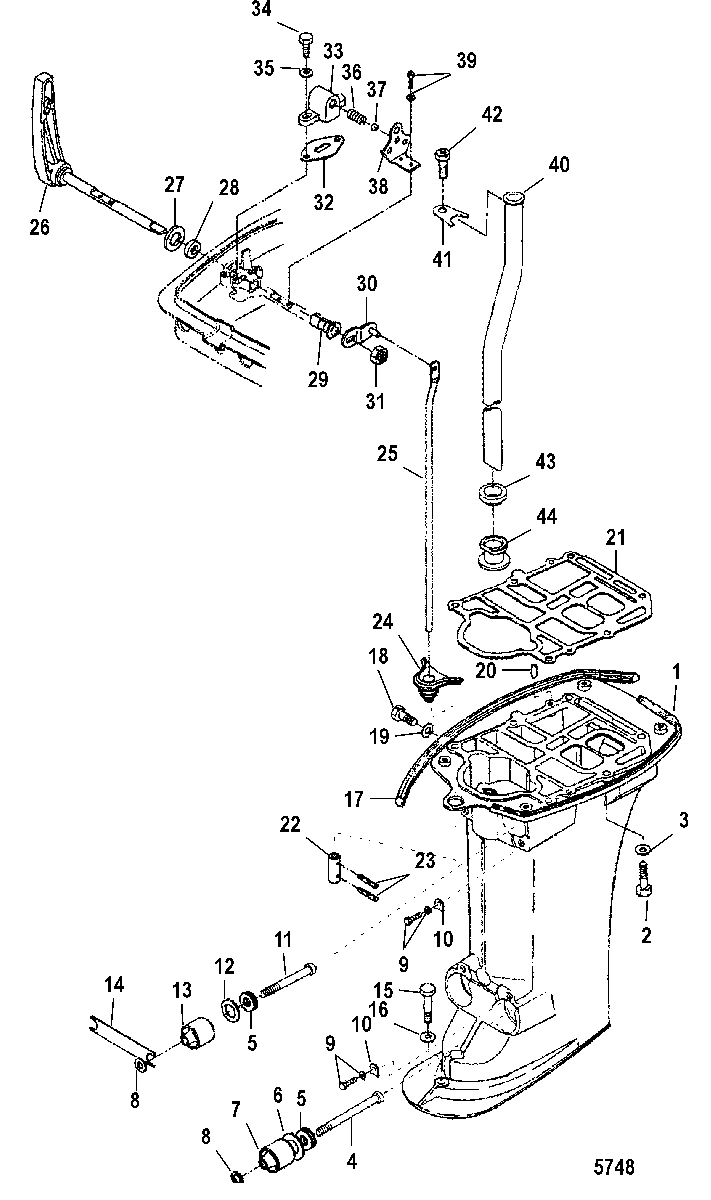

Drive Shaft Housing для Mariner - 30 (2 CYL.) (International) 0N001875 THRU 0N055504
-
№АртикулНазвание
-
11500-8M0065998 HOUSING, Driveshaft
(Short-Black)HOUSING, Driveshaft
(Short-Black) -
11500-8M0065999 HOUSING, Driveshaft
(Long-Black)HOUSING, Driveshaft
(Long-Black) -
210-8230423 BOLTBOLT
-
312-8M0135942 WASHERWASHER
-
410-8129354 BOLTBOLT
-
512-161405 WASHERWASHER
-
612-161407 WASHERWASHER
-
78M0074132 MOUNT, LowerMOUNT, Lower
-
812-168261 WASHERWASHER
-
910-8230426 BOLTBOLT
-
10853772005 RETAINERRETAINER
-
1110-812935008 BOLTBOLT
-
1212-161406 WASHERWASHER
-
138M0074133 MOUNT, UpperMOUNT, Upper
-
14853773 BUMPERBUMPER
-
1510-879194307 BOLTBOLT
-
1510-879194308 BOLT
(For 125mm Spacer Only)BOLT
(For 125mm Spacer Only) -
1612-8M0135942 WASHERWASHER
-
17853986 SEALSEAL
-
1819-879194296 PLUG, WaterPLUG, Water
-
198M0082880 GASKETGASKET
-
2017-16119 PIN, DowelPIN, Dowel
-
2127-853987001 GASKETGASKET
-
22853768 SHIFT ROD JOINT
(Included With Complete Gear Housing Replacement)SHIFT ROD JOINT
(Included With Complete Gear Housing Replacement) -
2317-952189 PIN, Dowel
(Included With Complete Gear Housing Replacement)PIN, Dowel
(Included With Complete Gear Housing Replacement) -
2425-8537094 GROMMETGROMMET
-
25161862 SHIFT RODSHIFT ROD
-
26813027008 LEVER, ShiftLEVER, Shift
-
2723-8537153 SPACERSPACER
-
2826-8537075 SEAL, OilSEAL, Oil
-
2923-8537434 BUSHINGBUSHING
-
30161842 LEVER, Shift RodLEVER, Shift Rod
-
3111-85372212 NUT, NylonNUT, Nylon
-
3215-853795 SHIMSHIM
-
33853767 BRACKETBRACKET
-
3410-16832 BOLT, (M6 x 16)BOLT, (M6 x 16)
-
3512-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
3624-8130281 SPRINGSPRING
-
3730-812937 STOPPERSTOPPER
-
38853766 PLATE, StopperPLATE, Stopper
-
3910-898101354 SCREWSCREW
-
4032-161691 TUBE, Water
(Short)TUBE, Water
(Short) -
4032-161701 TUBE, Water
(Long)TUBE, Water
(Long) -
4032-161702 TUBE, Water
(X-Long)TUBE, Water
(X-Long) -
4032-161703 TUBE, Water
(XX-Long)TUBE, Water
(XX-Long) -
418107531 LOCK PLATELOCK PLATE
-
4210-953961 BOLTBOLT
-
4326-161711 SEALSEAL
-
4426-8537074 SEALSEAL
-
-27-8M0089639 GASKET SET, Lower UnitGASKET SET, Lower Unit
-
-27-8M0119225 GASKET SET, PowerheadGASKET SET, Powerhead
-
-8M0119221 POWERHEAD ASSEMBLY
SN# 0N046081 & BelowPOWERHEAD ASSEMBLY
SN# 0N046081 & Below -
-8M0119221 POWERHEAD ASSEMBLY
SN# 0N046082 & UpPOWERHEAD ASSEMBLY
SN# 0N046082 & Up
