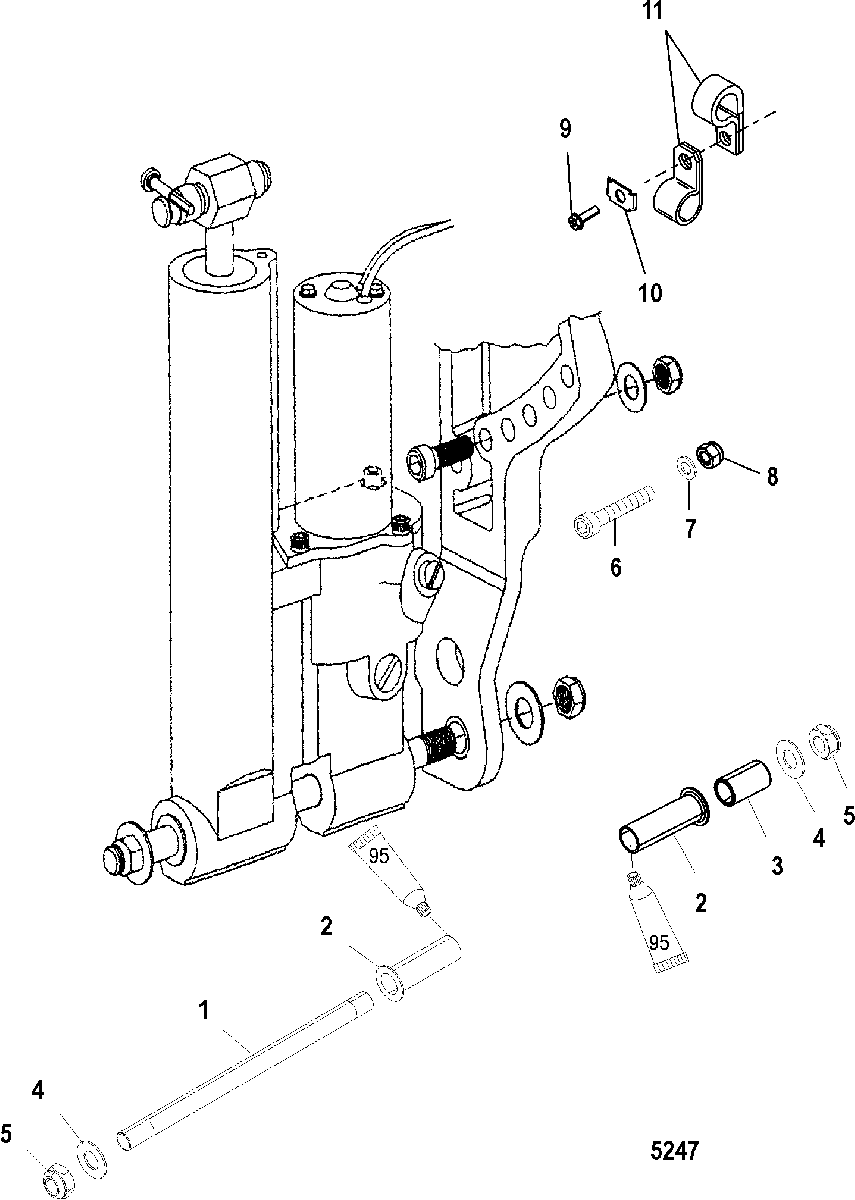

Power Trim Mounting для Mariner - 30 (2 CYL.) 0G760300 THRU 0T979999
-
№АртикулНазвание
-
117-822481001 PIN, Anchor (14 mm)PIN, Anchor (14 mm)
-
223-822482 BUSHINGBUSHING
-
323-822484 BUSHINGBUSHING
-
412-825190 WASHERWASHER
-
511-826712 NUTNUT
-
610-4009040 SCREW, (M10 x 40) Stainless SteelSCREW, (M10 x 40) Stainless Steel
-
712-4002319 WASHERWASHER
-
811-40140 NUT, (M10)NUT, (M10)
-
910-878609 SCREW, (#10-16 x .600)SCREW, (#10-16 x .600)
-
108M0084613 C WASHERC WASHER
-
1154-22740 CLIPCLIP
