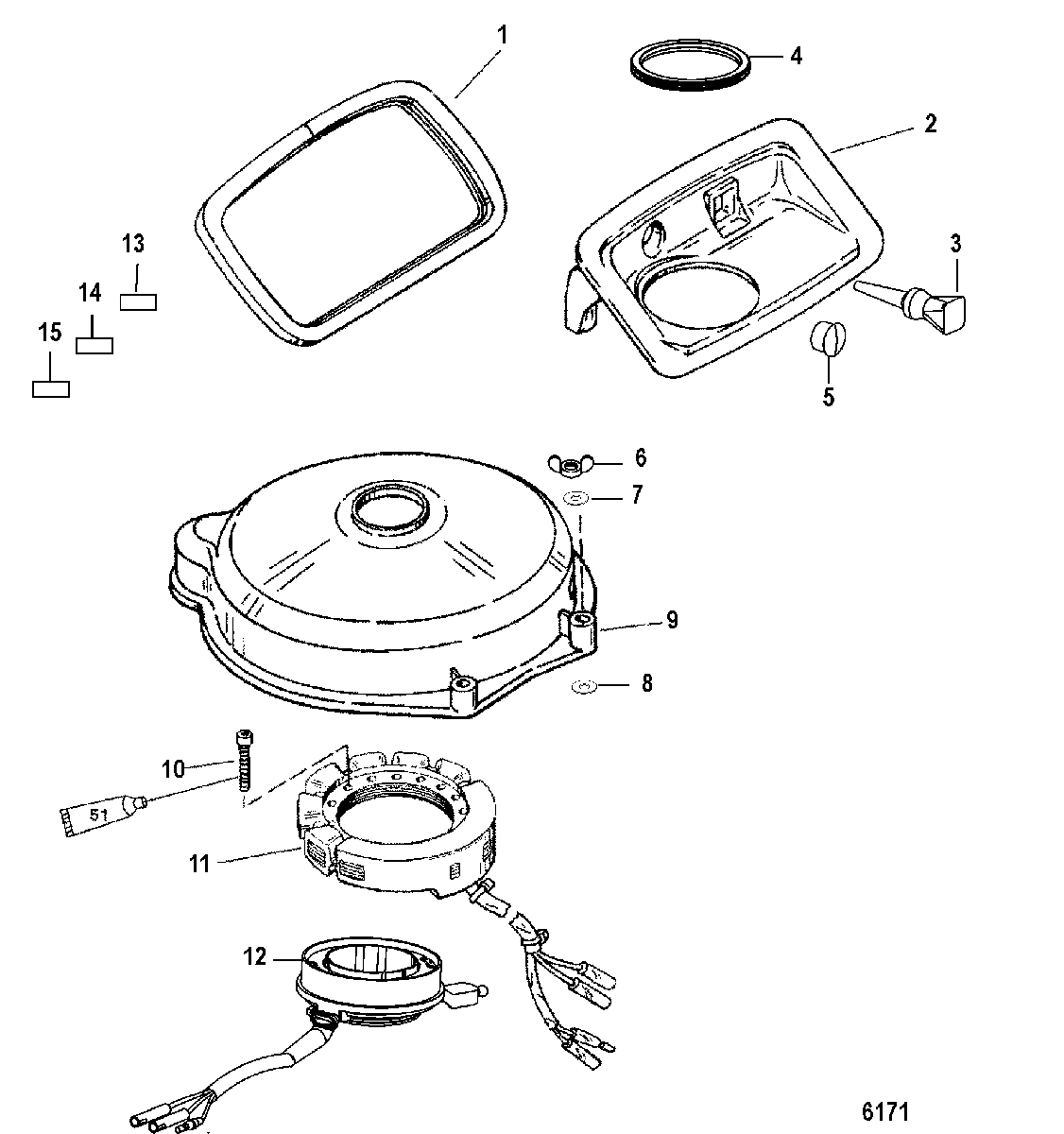

Stator/Trigger(Electric Models) для Mariner - 30 (2 CYL.) 0T980000 THRU 0T999999
-
№АртикулНазвание
-
18M0043416 SEALSEAL
-
2821788A1 REST KIT, Oil InjectionREST KIT, Oil Injection
-
319-822513002 PLUG, Starter HandlePLUG, Starter Handle
-
4823771001 GROMMET, Oil TankGROMMET, Oil Tank
-
519-822464 PLUGPLUG
-
611-816872 WING NUTWING NUT
-
712-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
812-49221 WASHER, (.187 x .500 x .062) Neoprene, NeopreneWASHER, (.187 x .500 x .062) Neoprene, Neoprene
-
9812777T1 COVER ASSEMBLYCOVER ASSEMBLY
-
1010-4013930 SCREW, (M5 x 30)SCREW, (M5 x 30)
-
11398-832075A21 STATOR ASSEMBLYSTATOR ASSEMBLY
-
-84-11149A27 CABLE ASSEMBLYCABLE ASSEMBLY
-
12853960T TRIGGERTRIGGER
-
1337-804664A05 DECAL, EPA Label Information (2005)DECAL, EPA Label Information (2005)
-
1337-804664A06 DECAL, EPA Label Information (2006)DECAL, EPA Label Information (2006)
-
14NSS NOT SOLD SEPARATE, Decal-Caution in Gear IdleNOT SOLD SEPARATE, Decal-Caution in Gear Idle
-
15NSS NOT SOLD SEPARATE, Decal-TimingNOT SOLD SEPARATE, Decal-Timing
