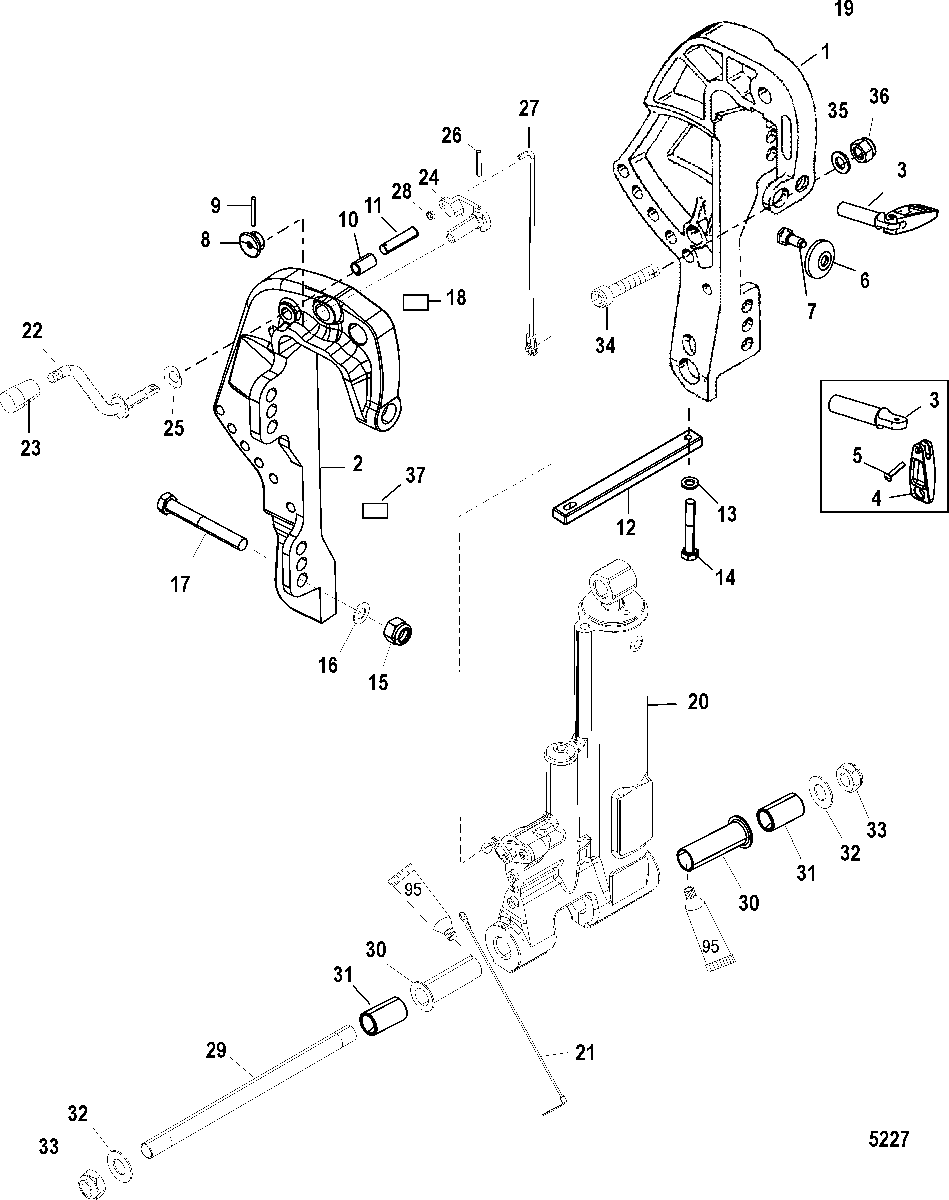

Clamp Bracket(Gas Assist Trim) для Mariner - 30 (2 CYL.) 1B000001 & Up
-
№АртикулНазвание
-
13411-821773T1 CLAMP BRACKET
(Port)CLAMP BRACKET
(Port) -
23412-821774T8 CLAMP BRACKET
(Storboard)CLAMP BRACKET
(Storboard) -
310-818883A1 THUMB SCREW ASSEMBLY
(Manual)THUMB SCREW ASSEMBLY
(Manual) -
4NSS NOT SOLD SEPARATE, Handle-ManualNOT SOLD SEPARATE, Handle-Manual
-
5NSS NOT SOLD SEPARATE, Rivet-ManualNOT SOLD SEPARATE, Rivet-Manual
-
612-818884 WASHER
(Manual)WASHER
(Manual) -
710-768042 SHOULDER SCREW, Hex
(Manual)SHOULDER SCREW, Hex
(Manual) -
88224011 CAPCAP
-
917-25810 PINPIN
-
1023-86637 BEARINGBEARING
-
1117-8224002 PIN, Tilt StopPIN, Tilt Stop
-
1297-8252711 ANODEANODE
-
1312-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1410-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
1511-82671117 NUT, (.500-20)NUT, (.500-20)
-
1612-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
1710-814259 SCREW, (.500-20 x 4.00)SCREW, (.500-20 x 4.00)
-
1837-830253 DECAL, Tilt LockDECAL, Tilt Lock
-
19NSS NOT SOLD SEPARATE, Decal-WarningNOT SOLD SEPARATE, Decal-Warning
-
20828533T1 TRIM, Hydraulic Assist
(Gas Assist Trim)TRIM, Hydraulic Assist
(Gas Assist Trim) -
2188238A11 CABLE ASSEMBLY
(Gas Assist Trim)CABLE ASSEMBLY
(Gas Assist Trim) -
22828924 LEVER, Tilt
(Gas Assist Trim)LEVER, Tilt
(Gas Assist Trim) -
238M0007469 TILT KNOB
(Gas Assist Trim)TILT KNOB
(Gas Assist Trim) -
24828930 ARM, Lever
(Gas Assist Trim)ARM, Lever
(Gas Assist Trim) -
2513-31030 WAVE WASHER
(Gas Assist Trim)WAVE WASHER
(Gas Assist Trim) -
2617-25319 PIN, (.125 x 0.75 Inches)
(Gas Assist Trim)PIN, (.125 x 0.75 Inches)
(Gas Assist Trim) -
278289961 LINK
(Gas Assist Trim)LINK
(Gas Assist Trim) -
2811-826709106 NUT, (#10-32) Stainless Steel
(Gas Assist Trim)NUT, (#10-32) Stainless Steel
(Gas Assist Trim) -
2917-822481001 PIN, (14 mm)
(Gas Assist/Power Trim)PIN, (14 mm)
(Gas Assist/Power Trim) -
3023-822482 BUSHING
(Gas Assist/Power Trim)BUSHING
(Gas Assist/Power Trim) -
3123-822484 BUSHING
(Gas Assist/Power Trim)BUSHING
(Gas Assist/Power Trim) -
3212-825190 WASHER
(Gas Assist/Power Trim)WASHER
(Gas Assist/Power Trim) -
3311-826712 NUT
(Gas Assist/Power Trim)NUT
(Gas Assist/Power Trim) -
3410-4009040 SCREW, (M10 x 40) Stainless Steel
(Gas Assist/Power Trim)SCREW, (M10 x 40) Stainless Steel
(Gas Assist/Power Trim) -
3512-4002319 WASHER
(Gas Assist/Power Trim)WASHER
(Gas Assist/Power Trim) -
3611-40140 NUT, (M10)
(Gas Assist/Power Trim)NUT, (M10)
(Gas Assist/Power Trim) -
37NSS NOT SOLD SEPARATE, Decal-Shallow Water DriveNOT SOLD SEPARATE, Decal-Shallow Water Drive
