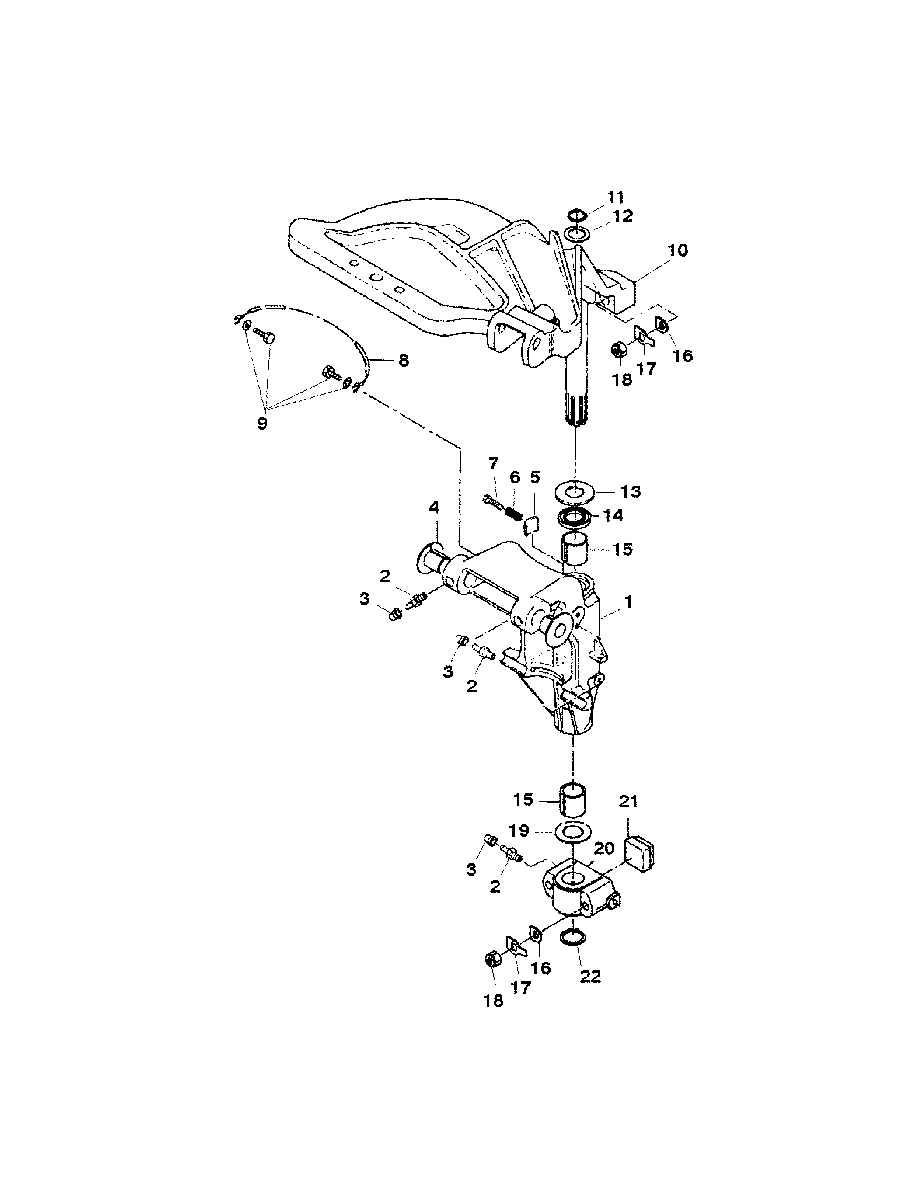

SWIVEL BRACKET для Mariner - 30 (2 CYL.)(International) 0G575500 AND UP
-
№АртикулНазвание
-
13407-813029T23 SWIVEL BRACKET
(BLACK) S/N-0N001324 & UPSWIVEL BRACKET
(BLACK) S/N-0N001324 & UP -
13407-813029T23 SWIVEL BRACKET
(GRAY) S/N-0N001324 & UPSWIVEL BRACKET
(GRAY) S/N-0N001324 & UP -
13407-813029T23 SWIVEL BRACKET
(BLACK) S/N-0N001323 & BELOWSWIVEL BRACKET
(BLACK) S/N-0N001323 & BELOW -
13407-813029T23 SWIVEL BRACKET
(GRAY) S/N-0N001323 & BELOWSWIVEL BRACKET
(GRAY) S/N-0N001323 & BELOW -
222-824969 GREASE FITTINGGREASE FITTING
-
3808599 CAPCAP
-
423-8537435 BUSHINGBUSHING
-
5162052 FRICTION PLATEFRICTION PLATE
-
624-953831 SPRINGSPRING
-
710-4000354 BOLTBOLT
-
884-898101089 GROUND WIREGROUND WIRE
-
910-8230427 BOLTBOLT
-
10853770T01 STEERING SHAFT
(BLACK)STEERING SHAFT
(BLACK) -
10853770A2 STEERING SHAFT
(GRAY)STEERING SHAFT
(GRAY) -
1153-8537141 C CLIPC CLIP
-
1212-879194002 WASHERWASHER
-
13162041 UPPER THRUST PLATEUPPER THRUST PLATE
-
1426-8537076 OIL SEALOIL SEAL
-
1523-8537436 BUSHINGBUSHING
-
1612-162382 WASHERWASHER
-
178537721 LOCK PLATELOCK PLATE
-
1811-85372215 NUTNUT
-
1916204004 LOWER THRUST PLATELOWER THRUST PLATE
-
20853786 BOTTOM YOKE
(BLACK)BOTTOM YOKE
(BLACK) -
208537861 BOTTOM YOKE
(GRAY)BOTTOM YOKE
(GRAY) -
218537731 BUMPERBUMPER
-
2253-8537142 E CLIPE CLIP
