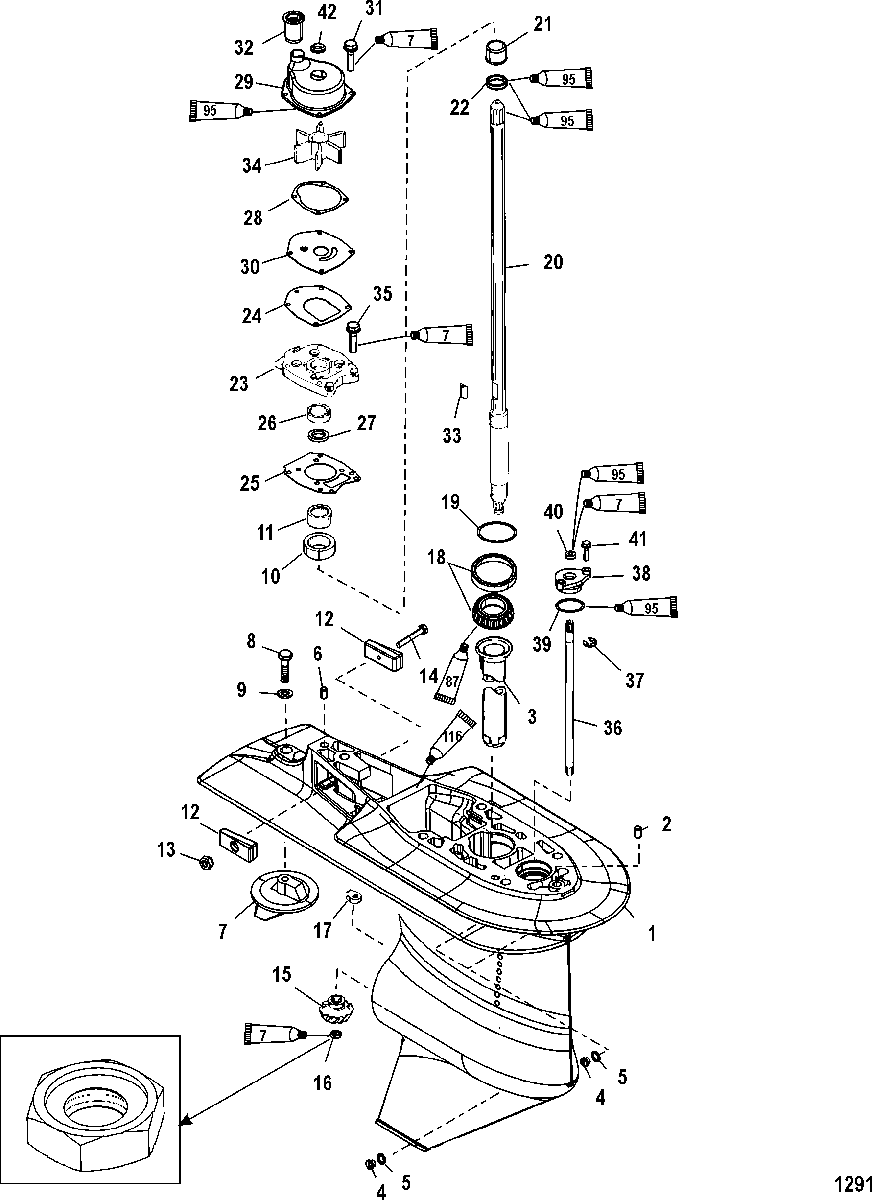

Gear Housing(Driveshaft - 2.31:1 - S/N-0T625303 and below для Mariner - 30 Carb (3 CYL.)(4-STROKE) 0P153500 THRU 0P400999
-
№АртикулНазвание
-
-1667-9011G86 GEAR HOUSING ASSEMBLY, CompleteGEAR HOUSING ASSEMBLY, Complete
-
11667-9011G59 GEAR HOUSING ASSEMBLY, BasicGEAR HOUSING ASSEMBLY, Basic
-
217-8M0084244 PIN, Dowel - With Hole (.375 x .625) (FRONT)PIN, Dowel - With Hole (.375 x .625) (FRONT)
-
343046 TUBE, OilerTUBE, Oiler
-
410-79953Q04 SCREW KIT, (.375-16 x .250) DrainSCREW KIT, (.375-16 x .250) Drain
-
512-191833 WASHERWASHER
-
617-43044 PIN, Dowel - Without Hole (.375 x .625) (REAR)PIN, Dowel - Without Hole (.375 x .625) (REAR)
-
731640T07 TRIM TABTRIM TAB
-
810-825427 SCREW, (.437-14 x 1.250) Stainless SteelSCREW, (.437-14 x 1.250) Stainless Steel
-
912-451761 WASHER, (.453 x .812 x .105) Black OxideWASHER, (.453 x .812 x .105) Black Oxide
-
1043040T1 CARRIER ASSEMBLYCARRIER ASSEMBLY
-
11NSS NOT SOLD SEPARATE, Needle BearingNOT SOLD SEPARATE, Needle Bearing
-
1297-826134Q ANODEANODE
-
1311-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1410-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
1543-44484T GEAR, Pinion (13 Teeth)GEAR, Pinion (13 Teeth)
-
1611-35921 NUT, (.625-18)NUT, (.625-18)
-
17850307 CAM, Shift ControlCAM, Shift Control
-
1831-42677A1 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
1915-8M0063265 SHIM SETSHIM SET
-
2045-854808A1 DRIVESHAFT ASSEMBLYDRIVESHAFT ASSEMBLY
-
2142461A1 SLEEVE/RING KITSLEEVE/RING KIT
-
22NSS NOT SOLD SEPARATE, Ring SealNOT SOLD SEPARATE, Ring Seal
-
2346-8M0113262 COVER ASSEMBLY, Water PumpCOVER ASSEMBLY, Water Pump
-
2427-430331 GASKETGASKET
-
2527-430472 GASKETGASKET
-
2626-43036 SEAL, Oil (LOWER)SEAL, Oil (LOWER)
-
2726-43035 SEAL, Oil (UPPER)SEAL, Oil (UPPER)
-
2827-8172771 GASKETGASKET
-
29817275A2 HOUSING KIT, Upper Water PumpHOUSING KIT, Upper Water Pump
-
308172761 FACEPLATEFACEPLATE
-
3110-8248327 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
3243023 SEAL
(W/O FLANGE)SEAL
(W/O FLANGE) -
328M0109700 SEAL, Water Tube
(W/FLANGE)SEAL, Water Tube
(W/FLANGE) -
3328-8M0032833 KEYKEY
-
3447-43026T2 IMPELLERIMPELLER
-
3510-8248326 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
36853906A1 SHIFT SHAFT ASSEMBLYSHIFT SHAFT ASSEMBLY
-
3753-29641 E RINGE RING
-
3823-43052A4 BUSHING ASSEMBLYBUSHING ASSEMBLY
-
3925-457101 O-RING, (1.424 x .103)O-RING, (1.424 x .103)
-
4026-8164641 SEAL, OilSEAL, Oil
-
4110-8248326 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
4226-816575A2 FACE SEALFACE SEAL
-
-26-43035A05 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
-
-46-8M0113801 REPAIR KIT, Water PumpREPAIR KIT, Water Pump
-
-47-8M0100526 REPAIR KIT, Water Pump ImpellerREPAIR KIT, Water Pump Impeller
