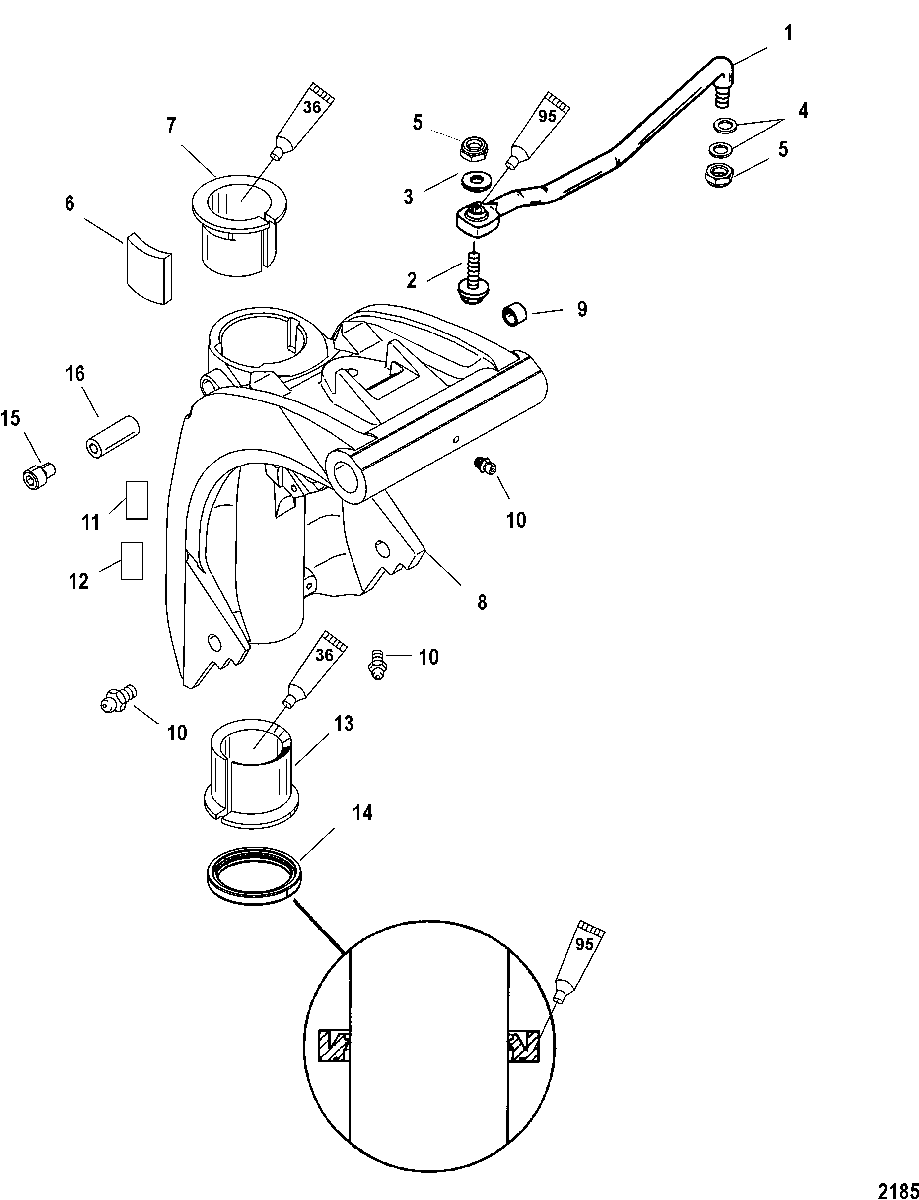

Swivel Bracket для Mariner - 30 Carb (3 CYL.)(4-STROKE) 0T409000 THRU 1B226999
-
№АртикулНазвание
-
119608A14 ATTACHING KIT, Engine Steering
(ELECTRIC NON HANDLE)ATTACHING KIT, Engine Steering
(ELECTRIC NON HANDLE) -
210-823919 SCREW, (.375-24 x 1.500)
(ELECTRIC NON HANDLE)SCREW, (.375-24 x 1.500)
(ELECTRIC NON HANDLE) -
312-8M0109680 WASHER, (.390 x .546 x .12)
(ELECTRIC NON HANDLE)WASHER, (.390 x .546 x .12)
(ELECTRIC NON HANDLE) -
412-37828 WASHER, (.390 x .625 x .062) Stainless Steel
(ELECTRIC NON HANDLE)WASHER, (.390 x .625 x .062) Stainless Steel
(ELECTRIC NON HANDLE) -
511-8M0042636 NUT, (.375-24) Stainless Steel
(ELECTRIC NON HANDLE)NUT, (.375-24) Stainless Steel
(ELECTRIC NON HANDLE) -
6822397 PUCK
(ELECTRIC NON HANDLE)PUCK
(ELECTRIC NON HANDLE) -
723-8217711 BUSHINGBUSHING
-
81401-850066T01 SWIVEL BRACKETSWIVEL BRACKET
-
923-19606 BEARINGBEARING
-
1022-74036 FITTING, Grease
(QTY. OF 3 REQUIRED ON HANDLE VERSIONS)FITTING, Grease
(QTY. OF 3 REQUIRED ON HANDLE VERSIONS) -
1137-8237011 DECAL, Co-PilotDECAL, Co-Pilot
-
12NSS NOT SOLD SEPARATE, Decal-Serial OverlaminateNOT SOLD SEPARATE, Decal-Serial Overlaminate
-
1323-821777 BUSHING (LOWER)BUSHING (LOWER)
-
1426-822404 SEALSEAL
-
1510-4008910 SCREW, (M8 x 10) Stainless Steel
(HANDLE)SCREW, (M8 x 10) Stainless Steel
(HANDLE) -
1510-40011149 SCREW, (M8 x 25) Stainless Steel
(ELECTRIC)SCREW, (M8 x 25) Stainless Steel
(ELECTRIC) -
168282451 SEAL
(ELECTRIC)SEAL
(ELECTRIC)
