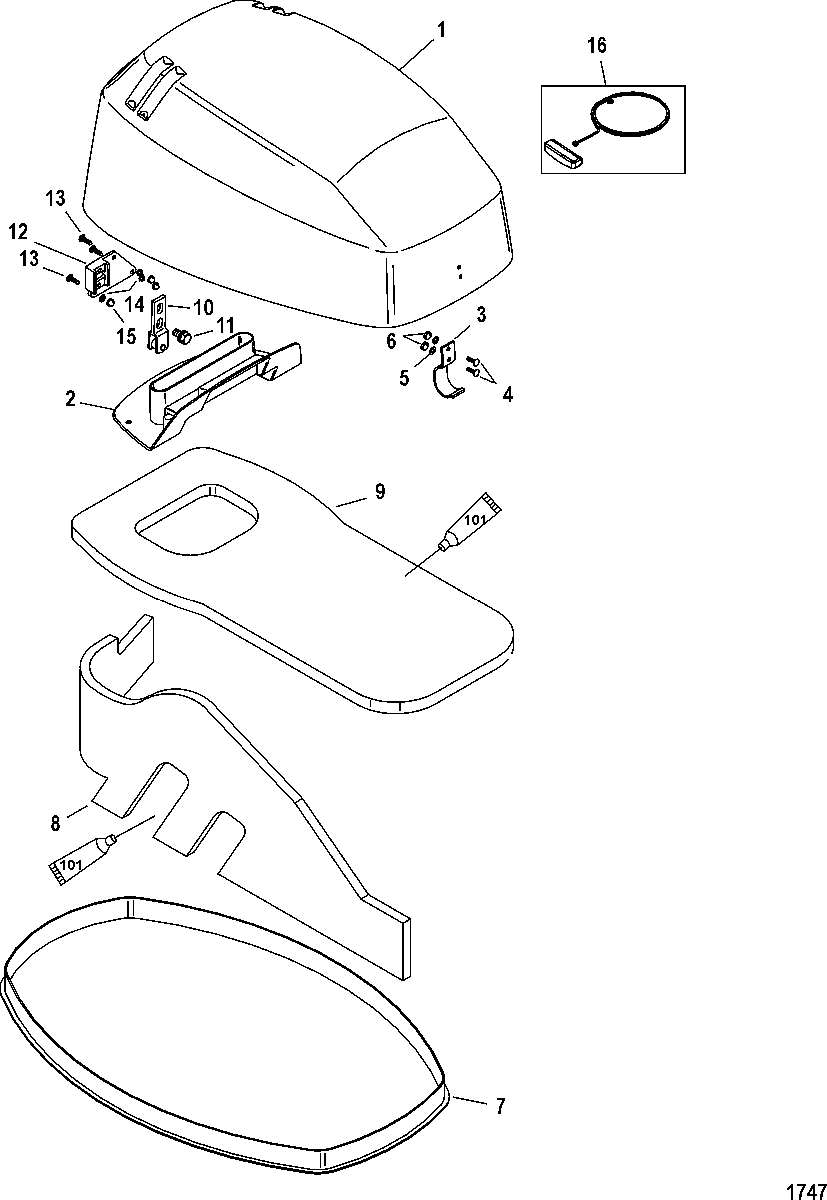

Top Cowl для Mariner - 30 EFI (3 CYL.)(4-STROKE) 0P153500 THRU 0P400999
-
№АртикулНазвание
-
1102-834785T22 TOP COWL ASSEMBLY
(BLACK)TOP COWL ASSEMBLY
(BLACK) -
1102-834785T8 TOP COWL ASSEMBLY
(SILVER)TOP COWL ASSEMBLY
(SILVER) -
2NSS NOT SOLD SEPARATE, Induction InsertNOT SOLD SEPARATE, Induction Insert
-
3826291F1 LATCH
(BLACK)LATCH
(BLACK) -
3826291F1 LATCH
(SILVER)LATCH
(SILVER) -
410-8231871 SCREW, (M4 x 14.5)SCREW, (M4 x 14.5)
-
513-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
611-8237515 NUT, (M4)NUT, (M4)
-
78M0043388 SEALSEAL
-
8834786A04 SOUND BLANKET KIT
(SIDE)SOUND BLANKET KIT
(SIDE) -
9NSS NOT SOLD SEPARATE, Sound Blanket-TopNOT SOLD SEPARATE, Sound Blanket-Top
-
10893763 BRACKET ASSEMBLY, Latch RollerBRACKET ASSEMBLY, Latch Roller
-
1110-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
128M0038412 BRACKETBRACKET
-
1310-8231871 SCREW, (M4 x 14.5)SCREW, (M4 x 14.5)
-
1413-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
1511-8237515 NUT, (M4)NUT, (M4)
-
1647341A11 ROPE AND HANDLE KIT, Manual StartingROPE AND HANDLE KIT, Manual Starting
