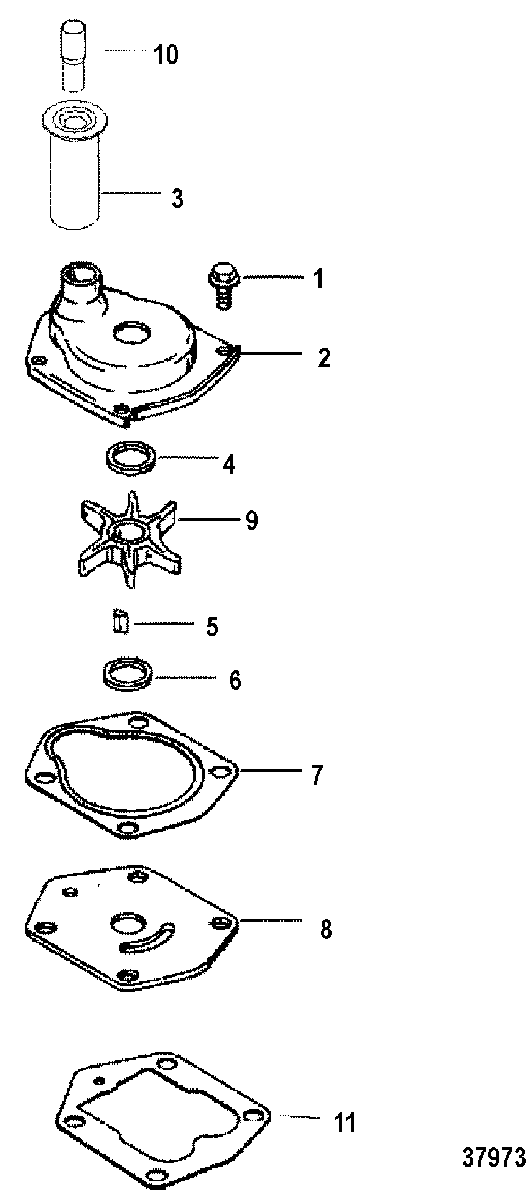

JET COMPONENTS для Mariner - 30 JET (3 CYL.) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
110-8248324 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
246-821351A3 HOUSING ASSEMBLY, Water Pump UpperHOUSING ASSEMBLY, Water Pump Upper
-
38235471 SEALSEAL
-
412-866451 WASHERWASHER
-
528-8M0032838 KEYKEY
-
612-866451 WASHERWASHER
-
727-822189 GASKET, Upper Water PumpGASKET, Upper Water Pump
-
88213542 FACE PLATEFACE PLATE
-
947-8508910 IMPELLERIMPELLER
-
10854491 EXTENSION, Water TubeEXTENSION, Water Tube
-
1127-822217 GASKET, Lower Water PumpGASKET, Lower Water Pump
-
-823547A2 SEAL KITSEAL KIT
-
-821354A2 REPAIR KIT, Water PumpREPAIR KIT, Water Pump
-
-27-828553A97 GASKET SETGASKET SET
