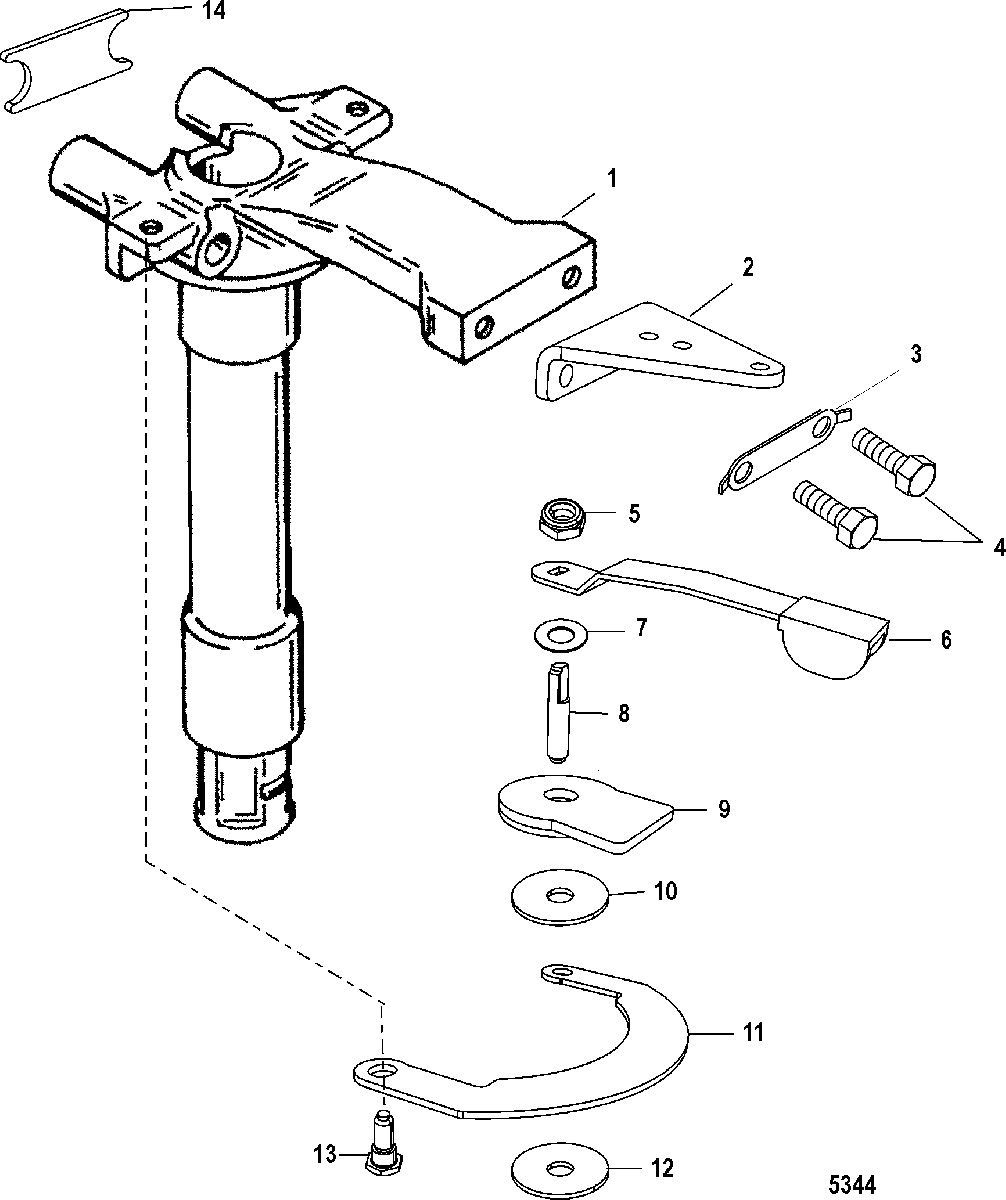

Swivel Tube для Mariner - 30 JET (3 CYL.) 0P017000 THRU 0P153499
-
№АртикулНазвание
-
1821769T1 SWIVEL TUBE HEAD, BlackSWIVEL TUBE HEAD, Black
-
1821769T1 SWIVEL TUBE HEAD, GraySWIVEL TUBE HEAD, Gray
-
2893696 BRACKET
(Non-Handle)BRACKET
(Non-Handle) -
314-8M0009820 TAB WASHER
(Non-Handle)TAB WASHER
(Non-Handle) -
410-4000377 SCREW, (M10 x 30)
(Non-Handle)SCREW, (M10 x 30)
(Non-Handle) -
511-8M0042636 NUT, (.375-24) Stainless SteelNUT, (.375-24) Stainless Steel
-
6823792 LEVERLEVER
-
712-29330 WASHERWASHER
-
8821961 ROD (Threaded)ROD (Threaded)
-
9821957 BRAKE PLATEBRAKE PLATE
-
108165621 DISCDISC
-
118M0007471 PLATEPLATE
-
128165621 DISCDISC
-
1310-768042 SHOULDER SCREW, HexSHOULDER SCREW, Hex
-
14826658 BUMPERBUMPER
