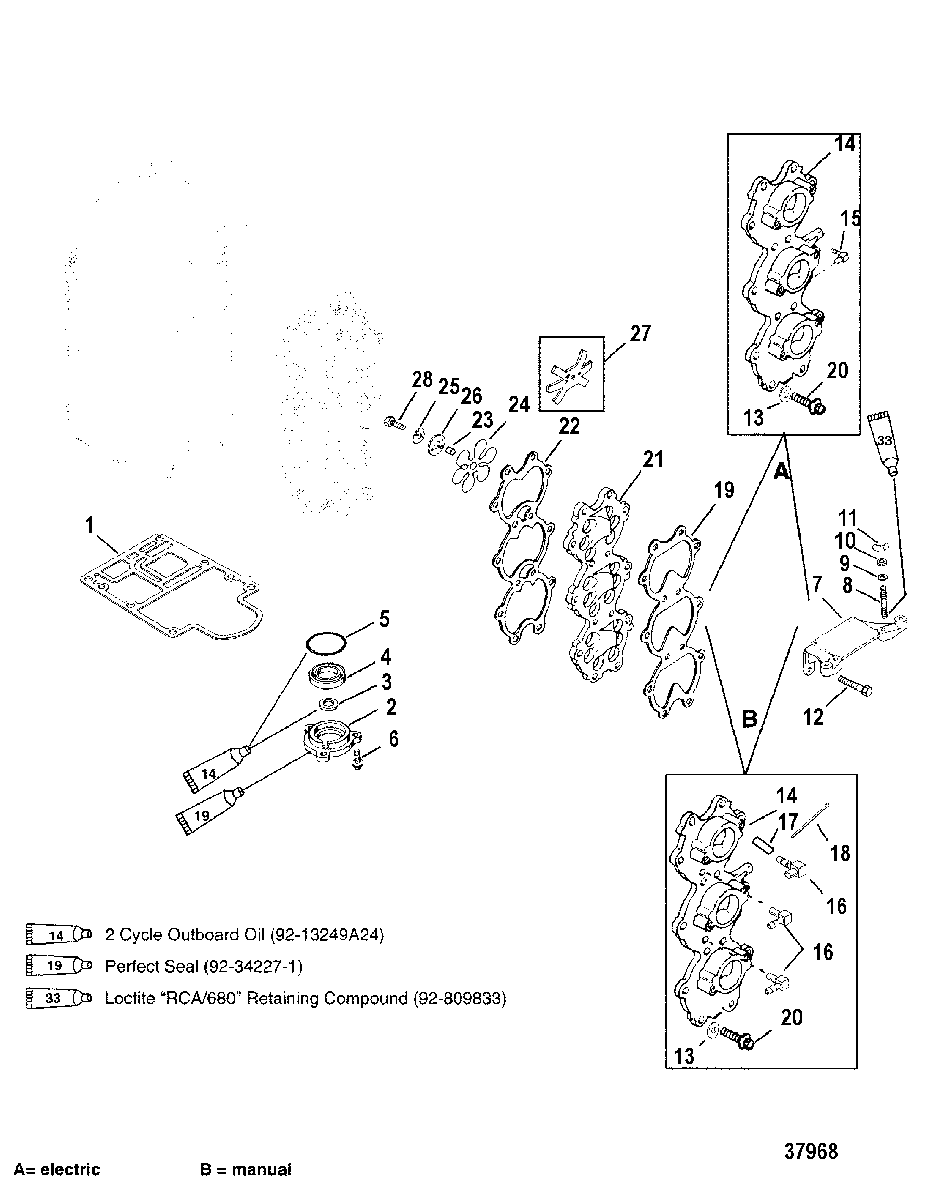

INDUCTION MANIFOLD AND REED BLOCK для Mariner - 30 JET (3 CYL.) 9973100 THRU 0P016999
-
№АртикулНазвание
-
127-8M0000822 GASKETGASKET
-
21171-9812A8 END CAP ASSEMBLYEND CAP ASSEMBLY
-
326-828932 SEAL, OilSEAL, Oil
-
426-41953 SEALSEAL
-
525-896523 O-RING, (2.175 x .175)O-RING, (2.175 x .175)
-
610-81742720 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
719077A07 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
816-8161949 STUDSTUD
-
912-49221 WASHER, (.187 x .500 x .062) Neoprene
ELECTRICWASHER, (.187 x .500 x .062) Neoprene
ELECTRIC -
1012-69056 WASHER, (.255 x .620 x .030) Stainless Steel
ELECTRICWASHER, (.255 x .620 x .030) Stainless Steel
ELECTRIC -
1111-816872 WING NUT
ELECTRICWING NUT
ELECTRIC -
1210-82127335 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1312-814806 WASHER, (.344 x .688 x .065) Stainless Steel (USE WHERE APPLICABLE)
(BOTTOM LEFT ONLY)WASHER, (.344 x .688 x .065) Stainless Steel (USE WHERE APPLICABLE)
(BOTTOM LEFT ONLY) -
14827998A1 MANIFOLD ASSEMBLY, InductionMANIFOLD ASSEMBLY, Induction
-
1522-19725 ELBOW
(ELECTRIC)ELBOW
(ELECTRIC) -
1622-19725 ELBOW
(MANUAL)ELBOW
(MANUAL) -
1722-15026 CAP
(MANUAL)CAP
(MANUAL) -
1854-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1927-812869 GASKETGASKET
-
2010-81742730 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
2119075A3 REED BLOCK ASSEMBLYREED BLOCK ASSEMBLY
-
2227-812868 GASKETGASKET
-
23NSS NOT SOLD SEPARATE, Dowel PinNOT SOLD SEPARATE, Dowel Pin
-
2434-812880A03 REED ASSEMBLYREED ASSEMBLY
-
2514-429821 TAB WASHERTAB WASHER
-
26812879002 RETAINER, Reed
(50)RETAINER, Reed
(50) -
27825267 RETAINER, Reed
(40)RETAINER, Reed
(40) -
2810-4000171 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
-852067T98 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
-
-27-828553A97 GASKET SETGASKET SET
