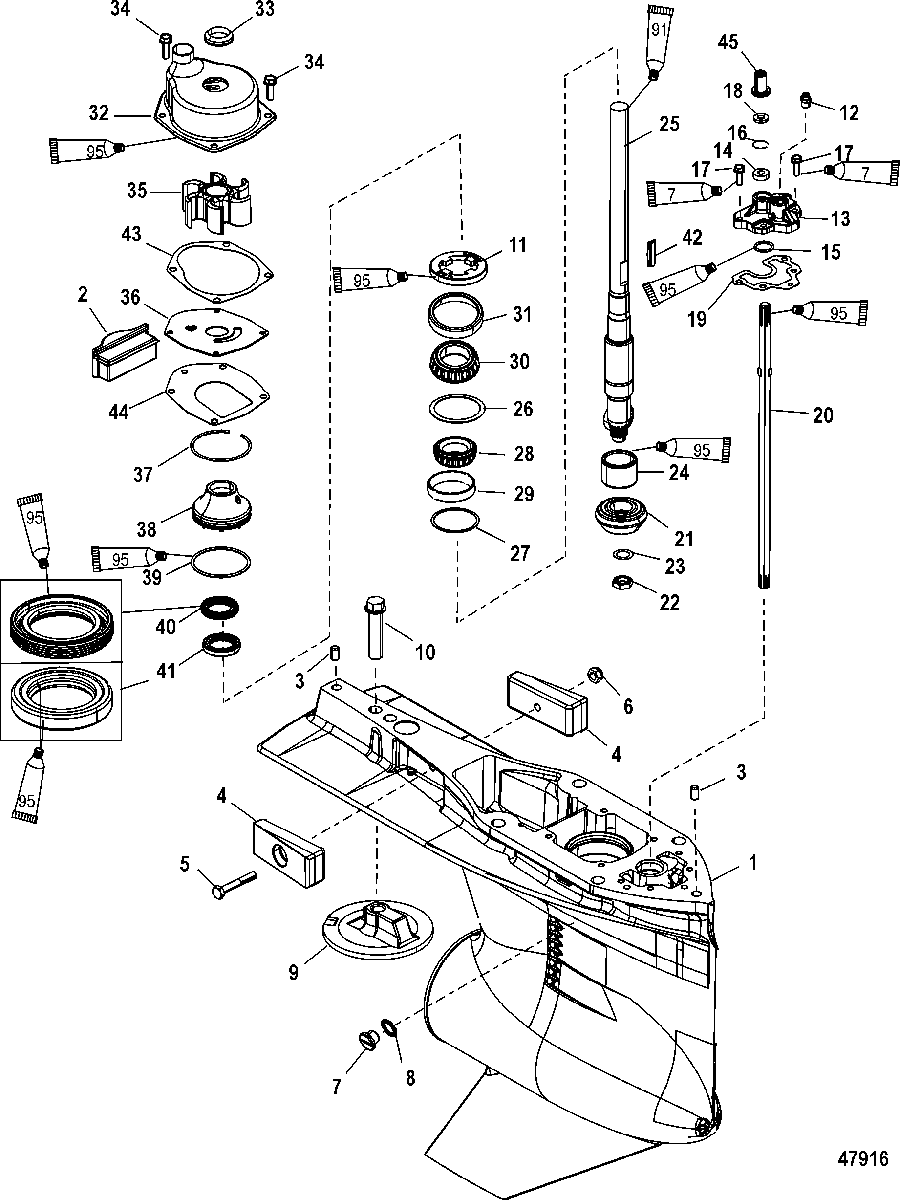

Gear Housing(Driveshaft) для Mariner - 300 PRO VERADO (4-STROKE)(6 CYL.) 1B830170 THRU 2B144122
-
№АртикулНазвание
-
-1600-880686T13 GEAR HOUSING ASSEMBLY, Complete
(Standard-Long)(1.85:1)(250 Pro)GEAR HOUSING ASSEMBLY, Complete
(Standard-Long)(1.85:1)(250 Pro) -
-1600-880686T14 GEAR HOUSING ASSEMBLY, Complete
(Standard-X-Long)(1.85:1)(250 Pro)GEAR HOUSING ASSEMBLY, Complete
(Standard-X-Long)(1.85:1)(250 Pro) -
-1600-880686T54 GEAR HOUSING ASSEMBLY, Complete
(Standard-Long)(1.75:1)(300 Pro)GEAR HOUSING ASSEMBLY, Complete
(Standard-Long)(1.75:1)(300 Pro) -
-1600-880686T55 GEAR HOUSING ASSEMBLY, Complete
(Standard-X-Long)(1.75:1)(300 Pro)GEAR HOUSING ASSEMBLY, Complete
(Standard-X-Long)(1.75:1)(300 Pro) -
11600-8M0056631 GEAR HOUSING ASSEMBLY, Basic
Use with 5/16 Inch Shift Crank SN# 1B853028 & BelowGEAR HOUSING ASSEMBLY, Basic
Use with 5/16 Inch Shift Crank SN# 1B853028 & Below -
11600-8M0056631 GEAR HOUSING ASSEMBLY, Basic
Use with 1/4 Inch Shift Crank SN# 1B853029 & UpGEAR HOUSING ASSEMBLY, Basic
Use with 1/4 Inch Shift Crank SN# 1B853029 & Up -
28M0010459 FILLER BLOCKFILLER BLOCK
-
317-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
497-826134Q ANODEANODE
-
510-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
611-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
710-79953A04 PLUG ASSEMBLY, (.375-16 x .250)PLUG ASSEMBLY, (.375-16 x .250)
-
826-830749 SEALSEAL
-
997-76214T5 ANODE KIT
(Mercury)ANODE KIT
(Mercury) -
997-76214Q5 ANODE KIT
(Quicksilver)ANODE KIT
(Quicksilver) -
1010-806327 SCREW, (.437-14 x 1.750)SCREW, (.437-14 x 1.750)
-
118245191 RETAINERRETAINER
-
1222-881866 FITTINGFITTING
-
138M0047129 COVER ASSEMBLYCOVER ASSEMBLY
-
1426-8164641 SEAL, OilSEAL, Oil
-
1525-896522 O-RING, (799 x .103)O-RING, (799 x .103)
-
1653-8M0046563 RETAINING RINGRETAINING RING
-
1710-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
1812-77674 WASHERWASHER
-
1927-880729 GASKETGASKET
-
20824145 SHIFT SHAFTSHIFT SHAFT
-
21NSS NOT SOLD SEPARATE, Pinion Gear 13 Teeth
(Part of Forward/Pinion Gear Set)NOT SOLD SEPARATE, Pinion Gear 13 Teeth
(Part of Forward/Pinion Gear Set) -
2211-35921 NUT, (.625-18)NUT, (.625-18)
-
2312-92721 WASHERWASHER
-
2431-42647A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
2545-888572 DRIVESHAFT
(Long)DRIVESHAFT
(Long) -
2545-888573 DRIVESHAFT
(X-Long)DRIVESHAFT
(X-Long) -
2615-8M0063267 SHIM SETSHIM SET
-
2715-8M0063268 SHIM ASSEMBLYSHIM ASSEMBLY
-
2831-48939A2 BEARING, Tapered RollerBEARING, Tapered Roller
-
29NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
3031-36387A1 BEARING ASSEMBLY, Roller/CupBEARING ASSEMBLY, Roller/Cup
-
31NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
32817275A09 HOUSING, Water Pump-CompleteHOUSING, Water Pump-Complete
-
3326-861415A1 SEAL KITSEAL KIT
-
3410-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
3547-43026T2 IMPELLERIMPELLER
-
368172761 FACEPLATEFACEPLATE
-
3753-880719 RING, RetainingRING, Retaining
-
388M0007131 CARRIER ASSEMBLY, Oil SealCARRIER ASSEMBLY, Oil Seal
-
3925-896523 O-RING, (2.175 x .103)O-RING, (2.175 x .103)
-
40NSS NOT SOLD SEPARATE, Oil SealNOT SOLD SEPARATE, Oil Seal
-
41NSS NOT SOLD SEPARATE, Oil SealNOT SOLD SEPARATE, Oil Seal
-
4228-8M0032833 KEYKEY
-
4327-8172771 GASKETGASKET
-
4427-430331 GASKETGASKET
-
4543585 COUPLINGCOUPLING
-
-26-830749A01 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
-
-47-8M0100526 REPAIR KIT, Water Pump ImpellerREPAIR KIT, Water Pump Impeller
-
-817275A08 REPAIR KIT, Water Pump-UpperREPAIR KIT, Water Pump-Upper
