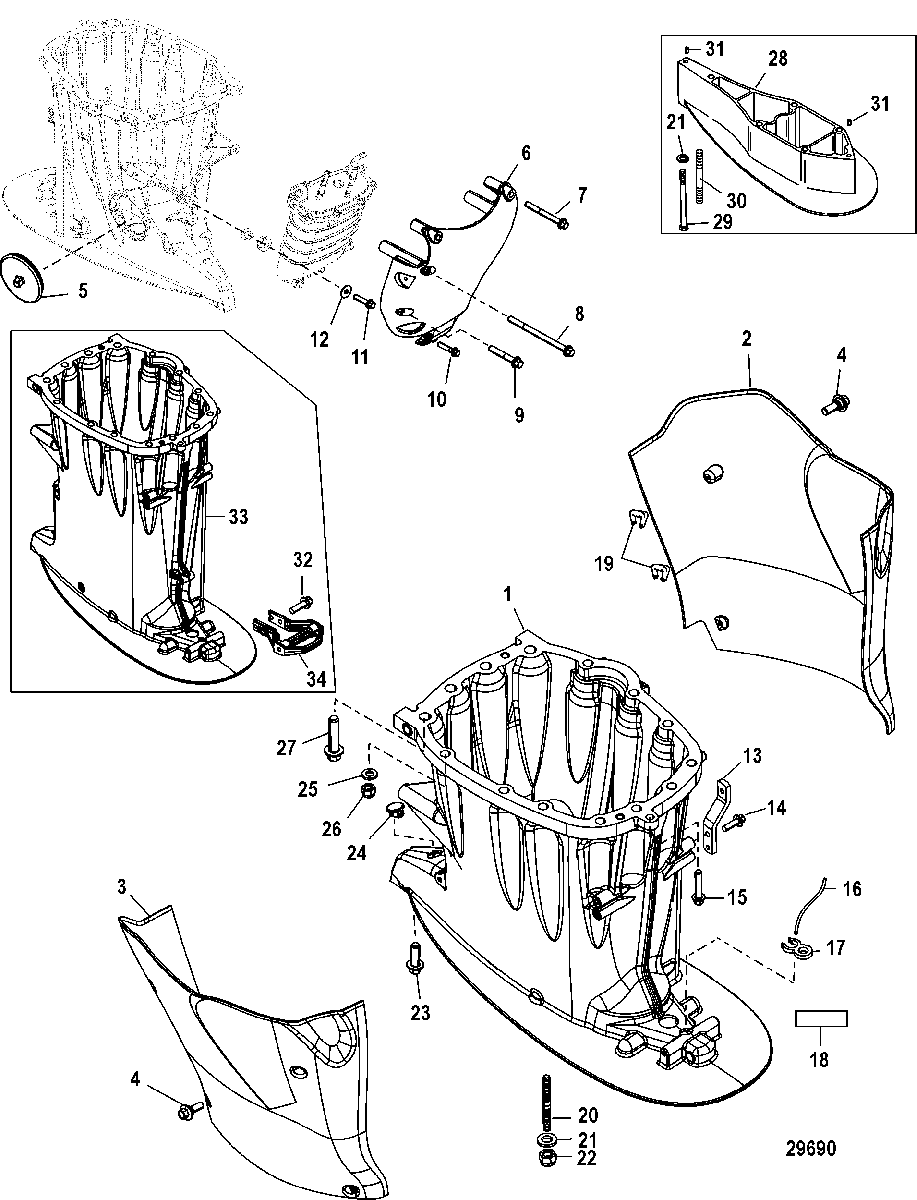

Driveshaft Housing для Mariner - 300 VERADO (4-STROKE)(6 CYL.) 1B517434 THRU 2B144122
-
№АртикулНазвание
-
11500-8M0113286 HOUSING, Driveshaft, Black
(Long)HOUSING, Driveshaft, Black
(Long) -
11500-8M0143473 HOUSING, Driveshaft, Silver Tipped
(Long)HOUSING, Driveshaft, Silver Tipped
(Long) -
-885365T03 CHAP ASSEMBLY, Long - Port and Starboard, BlackCHAP ASSEMBLY, Long - Port and Starboard, Black
-
-8M0090481 CHAP ASSEMBLY, Long - Port and Starboard, Cold WhiteCHAP ASSEMBLY, Long - Port and Starboard, Cold White
-
-8M0090482 CHAP ASSEMBLY, Long - Port and Starboard, Warm WhiteCHAP ASSEMBLY, Long - Port and Starboard, Warm White
-
-885363T04 CHAP ASSEMBLY, X-Long/XX-Long - Port and StarboardCHAP ASSEMBLY, X-Long/XX-Long - Port and Starboard
-
-8M0090483 CHAP ASSEMBLY, X-Long/XX-Long - Port and Starboard, Cold WhiteCHAP ASSEMBLY, X-Long/XX-Long - Port and Starboard, Cold White
-
-8M0090484 CHAP ASSEMBLY, X-Long/XX-Long - Port and Starboard, Warm WhiteCHAP ASSEMBLY, X-Long/XX-Long - Port and Starboard, Warm White
-
2NSS NOT SOLD SEPARATE, CHAP, Lower-Port
(Long)NOT SOLD SEPARATE, CHAP, Lower-Port
(Long) -
2NSS NOT SOLD SEPARATE, CHAP, Lower-Port
(X-Long/XX-Long)NOT SOLD SEPARATE, CHAP, Lower-Port
(X-Long/XX-Long) -
3NSS NOT SOLD SEPARATE, CHAP, Lower-Stbd
(Long)NOT SOLD SEPARATE, CHAP, Lower-Stbd
(Long) -
3NSS NOT SOLD SEPARATE, CHAP, Lower-Stbd
(X-Long/XX-Long)NOT SOLD SEPARATE, CHAP, Lower-Stbd
(X-Long/XX-Long) -
410-892073002 SHOULDER SCREW, (M6)SHOULDER SCREW, (M6)
-
525-889568001 GROMMETGROMMET
-
6889656T01 SHROUDSHROUD
-
710-8M0103818 SCREW, (M8 x 75)SCREW, (M8 x 75)
-
810-8M0103812 SCREW, (M8 x 120)SCREW, (M8 x 120)
-
910-8M0103816 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
1010-8M0103815 SCREW, (M8 x 40)SCREW, (M8 x 40)
-
1110-8M0103814 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
1212-817274 WASHER, (.344 x 1.00 x .063) Stainless SteelWASHER, (.344 x 1.00 x .063) Stainless Steel
-
13897784A01 BRACKET KIT, Upper ChapBRACKET KIT, Upper Chap
-
1410-8M0103806 SCREW, (M6 x 20 MM) Stainless SteelSCREW, (M6 x 20 MM) Stainless Steel
-
1510-8M0103813 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
1632-85944975 TUBING, (72.00 Inches Bulk), Cut to 44 Inches)TUBING, (72.00 Inches Bulk), Cut to 44 Inches)
-
17889831001 RETAINERRETAINER
-
18NSS NOT SOLD SEPARATE, Decal-Oil DrainNOT SOLD SEPARATE, Decal-Oil Drain
-
1954-898033 CLIP (Replaces O-Rings)CLIP (Replaces O-Rings)
-
2016-8M0070951 STUD, (M12 x 52)
(Long/X-Long)STUD, (M12 x 52)
(Long/X-Long) -
2112-856982 WASHER, (.500 x .810 x .090) Stainless SteelWASHER, (.500 x .810 x .090) Stainless Steel
-
2211-896895 NUT, (M12)NUT, (M12)
-
2310-8M0102995 SCREW, (M12 x 35 MM)
(Long/X-Long)SCREW, (M12 x 35 MM)
(Long/X-Long) -
2419-824928001 PLUG, RubberPLUG, Rubber
-
2512-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
-
2611-884412 NUTNUT
-
2710-8M0103825 SCREW, (M12 x 45)SCREW, (M12 x 45)
-
288M0105088 SPACER, Black
(XX-Long)SPACER, Black
(XX-Long) -
288M0146468 SPACER, Driveshaft Housing X-Long, Silver
(XX-Long)SPACER, Driveshaft Housing X-Long, Silver
(XX-Long) -
2910-857137 SCREW, (M12 x 160)
(XX-Long)SCREW, (M12 x 160)
(XX-Long) -
3016-8M0008047 STUD, (M12 x 179)
(XX-Long)STUD, (M12 x 179)
(XX-Long) -
3117-43044 PIN, Dowel - Without Hole (.375 x .625)
(XX-Long)PIN, Dowel - Without Hole (.375 x .625)
(XX-Long) -
3210-8M0103806 SCREW, (M6 x 20 MM) Stainless Steel
(X-Long/XX-Long)SCREW, (M6 x 20 MM) Stainless Steel
(X-Long/XX-Long) -
331500-8M0113287 HOUSING, Driveshaft, Black
(X-Long/XX-Long)HOUSING, Driveshaft, Black
(X-Long/XX-Long) -
331500-8M0103306 HOUSING, Driveshaft, Silver Tipped
(X-Long/XX-Long)HOUSING, Driveshaft, Silver Tipped
(X-Long/XX-Long) -
34891966006 BRACKET, Cowl
(X-Long/XX-Long)BRACKET, Cowl
(X-Long/XX-Long) -
-61-895247A07 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
