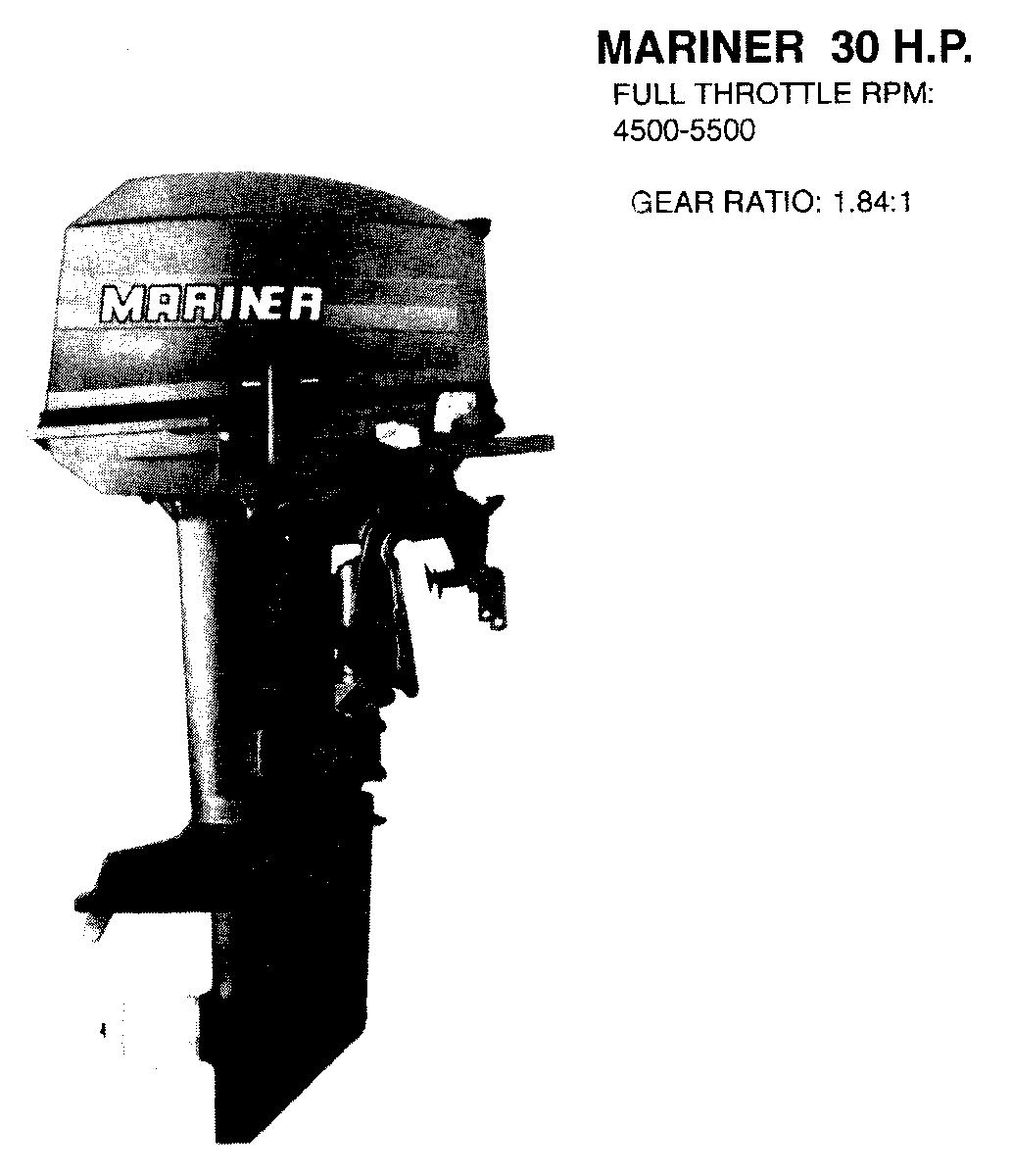

PROP CHART для Mariner - 30A 689-250101 AND UP
-
№АртикулНазвание
-
-48-84977M PROPELLER (PITCH 14")(ALUMINUM)
3 BLADESPROPELLER (PITCH 14")(ALUMINUM)
3 BLADES -
-QA3814R PROPELLER (PITCH 13")(ALUMINUM)
3 BLADESPROPELLER (PITCH 13")(ALUMINUM)
3 BLADES -
-48-88168A4 PROPELLER (PITCH 12")(STEEL)
3 BLADESPROPELLER (PITCH 12")(STEEL)
3 BLADES -
-QA3810R PROPELLER (PITCH 11-1/4")(ALUMINUM)
3 BLADES EQUIVALENT TO PROPELLER FURNISHED WITH ENGINE.PROPELLER (PITCH 11-1/4")(ALUMINUM)
3 BLADES EQUIVALENT TO PROPELLER FURNISHED WITH ENGINE. -
-QA3808R PROPELLER (PITCH 10-1/2")(ALUMINUM)
3 BLADESPROPELLER (PITCH 10-1/2")(ALUMINUM)
3 BLADES -
-48-88166A4 PROPELLER (PITCH 9")(STEEL)
3 BLADESPROPELLER (PITCH 9")(STEEL)
3 BLADES -
-48-8M0057165 PROPELLER (PITCH 9")(ALUMINUM)
3 BLADESPROPELLER (PITCH 9")(ALUMINUM)
3 BLADES -
-48-8M0050007 PROPELLER (PITCH 8")(ALUMINUM)
3 BLADESPROPELLER (PITCH 8")(ALUMINUM)
3 BLADES
Все узлы модели:
- AUTO-BLEND
- BOTTOM COWL
- C.D.I MAGNETO
- C.D.I. IGNITION COMPONENTS
- CARBURETOR
- CLAMP AND SWIVEL BRACKET/REVERSE LOCK
- CRANKCASE AND CYLINDER HEAD
- CRANKSHAFT AND PISTON
- DRIVESHAFT HOUSING
- ELECTRIC START COMPONENTS
- ELECTRIC START MOTOR
- FUEL PUMP, FUEL LINES AND FILTER
- FUEL TANK AND FUEL LINE ASSEMBLY
- FUEL TANK AND FUEL LINE ASSEMBLY (NOT ORIG EQUIPMENT TANK)
- GEAR HOUSING ASSEMBLY
- GEAR SHIFT LINKAGE
- INTAKE MANIFOLD
- MOUNTING SYSTEM
- OIL PUMP
- • PROP CHART
- RECOIL STARTER
- REMOTE CONTROL ATTACHING KIT
- STEERING HANDLE AND THROTTLE CONTROL
- TOP COWL
