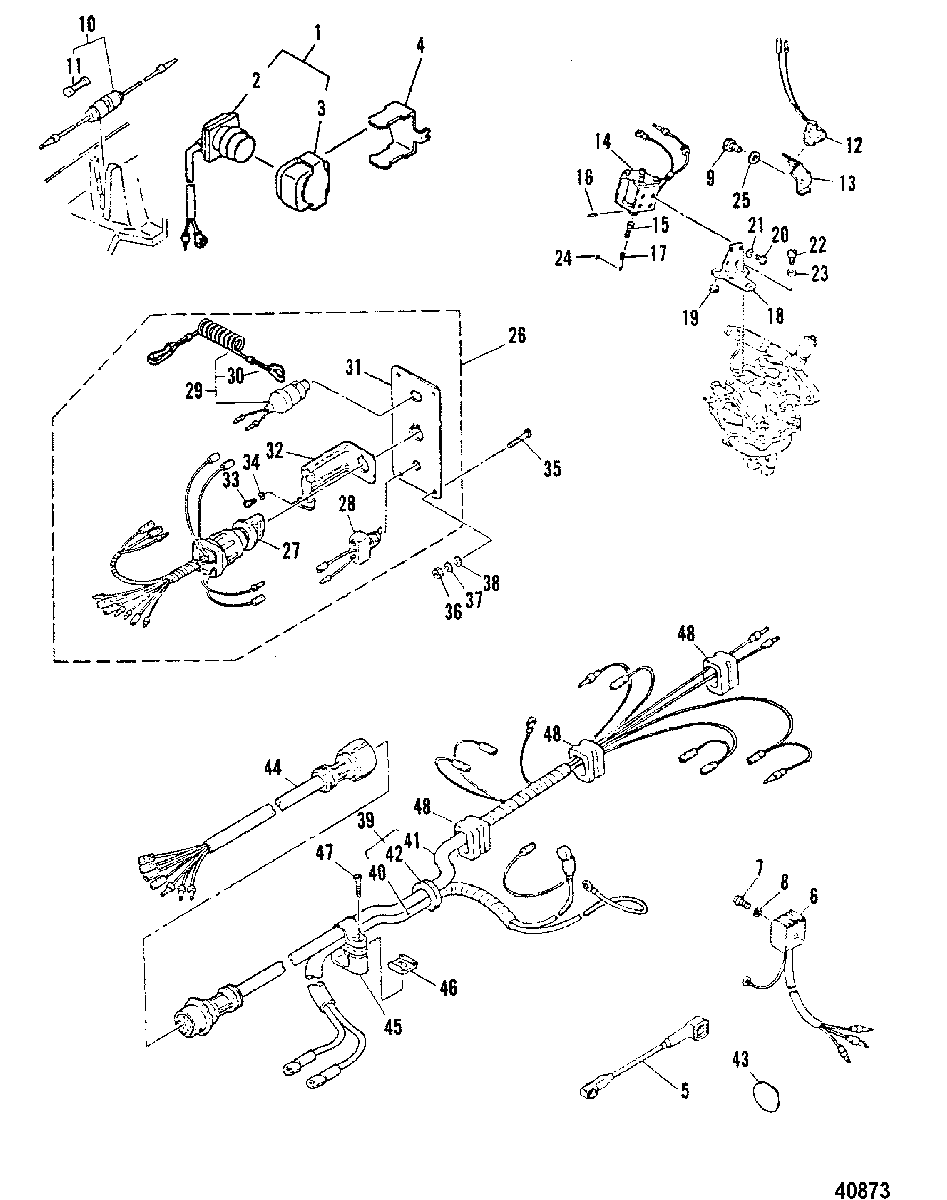

ELECTRIC START COMPONENTS для Mariner - 30A 689-301911 THRU 321376
-
№АртикулНазвание
-
189-8M0098898 SOLENOID ASSEMBLY, StarterSOLENOID ASSEMBLY, Starter
-
289-96357T SOLENOIDSOLENOID
-
384934M BRACKETBRACKET
-
484935M PLATE, SOLENOID MOUNTINGPLATE, SOLENOID MOUNTING
-
584-97133M WIRE, SOLENOID
SN# M-007186/ML-308701/E-101516/EL-404001 & UpWIRE, SOLENOID
SN# M-007186/ML-308701/E-101516/EL-404001 & Up -
584-84936M WIRE, SOLNOID
SN# M-007185/ML-308700/E-101515/EL-404000 & BelowWIRE, SOLNOID
SN# M-007185/ML-308700/E-101515/EL-404000 & Below -
68M0091976 RECTIFIERRECTIFIER
-
710-83108M SCREWSCREW
-
812-82211M WASHERWASHER
-
910-91772M BOLTBOLT
-
1084937M FUSE ASSEMBLYFUSE ASSEMBLY
-
1188-81522M FUSEFUSE
-
1287-97684M SWITCH ASSEMBLY, Neutral StartSWITCH ASSEMBLY, Neutral Start
-
1384-84936M WIRE, SWITCH AND LOCKOUT MOUNTINGWIRE, SWITCH AND LOCKOUT MOUNTING
-
1484940M SOLENOID, ChokeSOLENOID, Choke
-
1584411M HOOK, WIREHOOK, WIRE
-
1617-82145M PIN, ROLLPIN, ROLL
-
1724-81667M WIRE, PULLWIRE, PULL
-
1884941M PLATE, SOLNOID MOUNTINGPLATE, SOLNOID MOUNTING
-
1925-82060M GROMMETGROMMET
-
2010-82512M SCREWSCREW
-
2112-82847M WASHERWASHER
-
2210-14232M SCREWSCREW
-
2312-82211M WASHERWASHER
-
2425-82258M O-RINGO-RING
-
2513-82212M WASHER, LOCKWASHER, LOCK
-
2618975A1 PANEL ASSEMBLY, SwitchPANEL ASSEMBLY, Switch
-
2787-8M0078321 KEY SWITCHKEY SWITCH
-
2887-84944M SWITCH, ChokeSWITCH, Choke
-
2987-97682M SWITCH ASSEMBLY, StopSWITCH ASSEMBLY, Stop
-
3097756M STOPPER
SN# M-010646/ML-311476/E-102356/EL-405456 & UpSTOPPER
SN# M-010646/ML-311476/E-102356/EL-405456 & Up -
3097756M STOPPER
SN# M-010645/ML-311475/E-102355/EL-405455 & BelowSTOPPER
SN# M-010645/ML-311475/E-102355/EL-405455 & Below -
3142435M PANEL
SN# M-018821/ML-318387/E-104276/EL-409416 & UpPANEL
SN# M-018821/ML-318387/E-104276/EL-409416 & Up -
3181533M SWITCH PANEL
SN# M-018820/ML-318386/E-104275/EL-409415 & BelowSWITCH PANEL
SN# M-018820/ML-318386/E-104275/EL-409415 & Below -
3281537M BRACKETBRACKET
-
3310-82500M SCREWSCREW
-
3413-82206M LOCKWASHERLOCKWASHER
-
3510-80164M SCREWSCREW
-
3611-82377M NUTNUT
-
3713-82186M WASHER, LOCKWASHER, LOCK
-
3812-82847M WASHERWASHER
-
3984-95677M HARNESS ASSEMBLY, Engine Wiring
SN# M-010646/ML-311476/E-102356/EL-405456 & UpHARNESS ASSEMBLY, Engine Wiring
SN# M-010646/ML-311476/E-102356/EL-405456 & Up -
3984-97134M HARNESS ASSEMBLY, Engine Wiring
SN# M-010645/ML-311475/E-102355/EL-405455 & BelowHARNESS ASSEMBLY, Engine Wiring
SN# M-010645/ML-311475/E-102355/EL-405455 & Below -
4084-97771M WIRE ASSEMBLY , BATTERY
SN# M-010646/ML-311476/E-102356/EL-405456 & UpWIRE ASSEMBLY , BATTERY
SN# M-010646/ML-311476/E-102356/EL-405456 & Up -
4084-97135M WIRE ASSEMBLY, BATTERY
SN# M-010645/ML-311475/E-102355/EL-405455 & BelowWIRE ASSEMBLY, BATTERY
SN# M-010645/ML-311475/E-102355/EL-405455 & Below -
4184-95647M WIRE ASSEMBLYWIRE ASSEMBLY
-
4225-84950M GROMMETGROMMET
-
4382066M GROMMETGROMMET
-
4484-84711M EXTENSION, WIRE HARNESS (5M)EXTENSION, WIRE HARNESS (5M)
-
4554-97772M CLAMP
SN# M-010646/ML-311476/E-102356/EL-405456 & UpCLAMP
SN# M-010646/ML-311476/E-102356/EL-405456 & Up -
4554-97772M CLAMP
SN# M-010645/ML-311475/E-102355/EL-405455 & BelowCLAMP
SN# M-010645/ML-311475/E-102355/EL-405455 & Below -
4684708M PLATEPLATE
-
4710-84709M SCREWSCREW
-
4825-84876M GROMMETGROMMET
