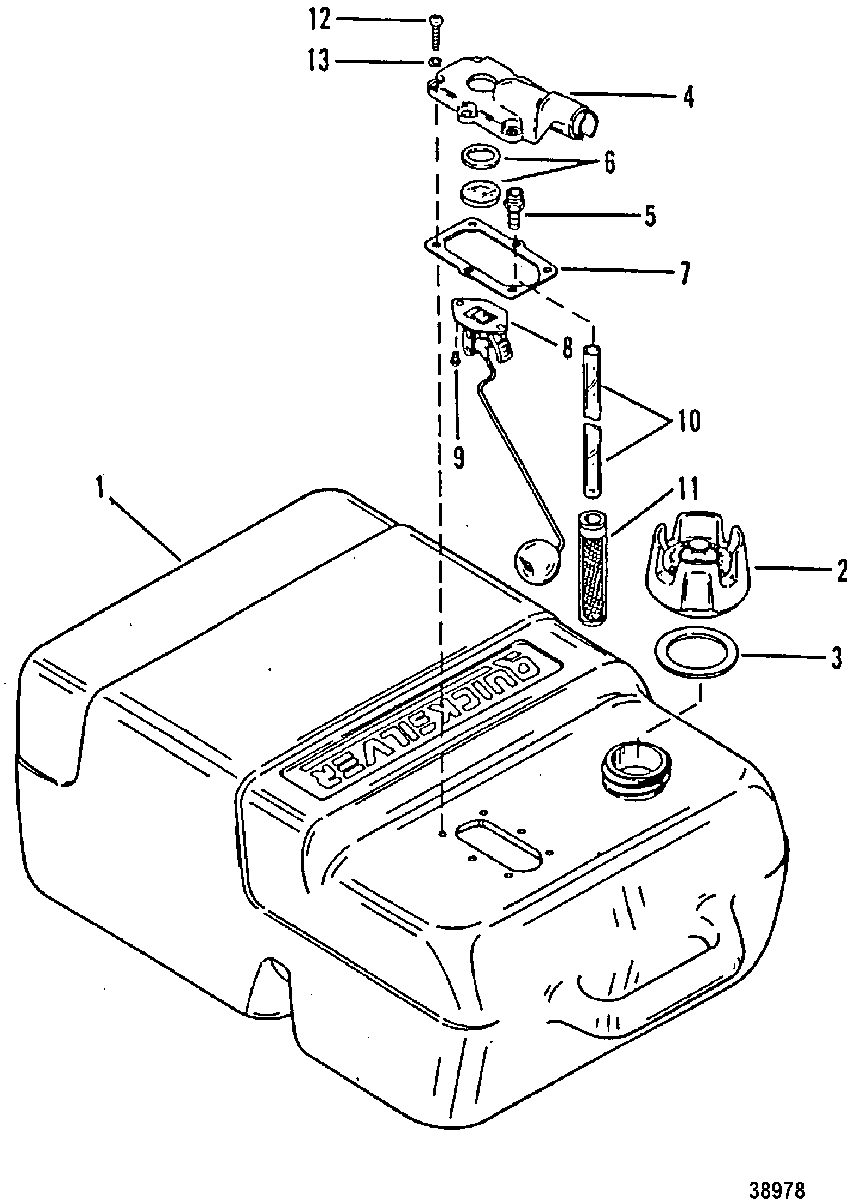

FUEL TANK(PLASTIC-6.6 GALLON-NOT ORIGINAL EQUIPMENT TANK) для Mariner - 30A 689-321377 THRU 689-250100 (E)
-
№АртикулНазвание
-
11259-812410A1 TANK ASSEMBLY, Fuel (PLASTIC-6.6 GAL.)TANK ASSEMBLY, Fuel (PLASTIC-6.6 GAL.)
-
236-816976Q1 CAP ASSEMBLY, FuelCAP ASSEMBLY, Fuel
-
327-8169771 GASKET, FILLER CAPGASKET, FILLER CAP
-
417792A1 BODY ASSEMBLY, PickUpBODY ASSEMBLY, PickUp
-
522-826178 ADAPTORADAPTOR
-
698542A1 WINDOW ASSEMBLYWINDOW ASSEMBLY
-
727-18026 GASKET, PICK-UP BODYGASKET, PICK-UP BODY
-
817971A2 GAUGE ASSEMBLY, FuelGAUGE ASSEMBLY, Fuel
-
910-62568 SCREW, (#10-16 x .375), FUEL GAUGESCREW, (#10-16 x .375), FUEL GAUGE
-
1032-827756A1 HOSEHOSE
-
1135-823534 FILTERFILTER
-
1210-18027 SCREW, (.190-24), PICK-UP BODYSCREW, (.190-24), PICK-UP BODY
-
1312-29070 WASHER, PICK-UP BODY SCREWWASHER, PICK-UP BODY SCREW
