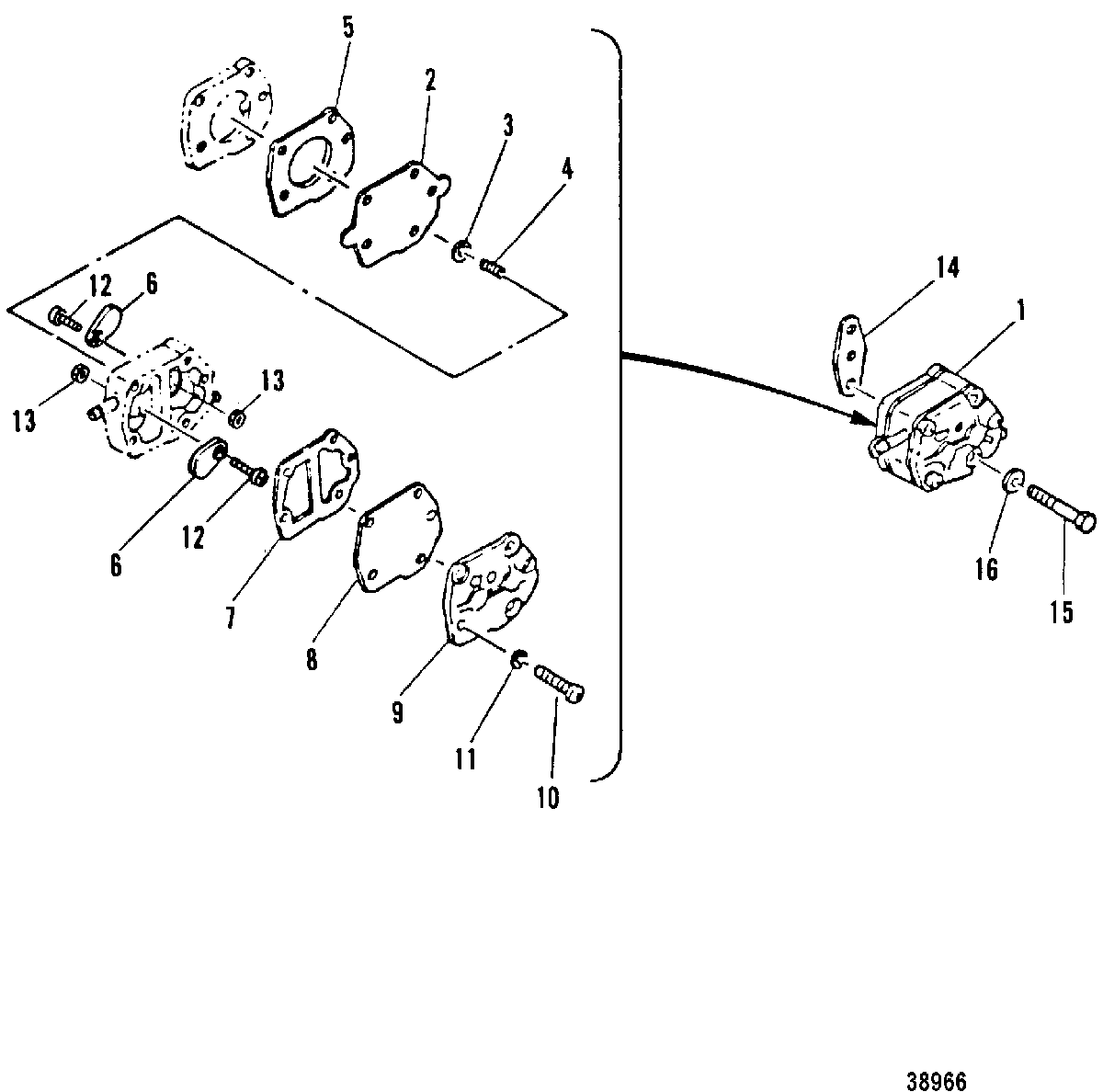

FUEL PUMP для Mariner - 30A 689-411947 THRU 689-550100 (EL)
-
№АртикулНазвание
-
143113T PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
280606M DIAPHRAGMDIAPHRAGM
-
380611M PLATE, SPRINGPLATE, SPRING
-
424-80610M SPRINGSPRING
-
527-80613 GASKET, BODY TO BASEGASKET, BODY TO BASE
-
621-41888M CHECK VALVECHECK VALVE
-
727-80614 GASKET, COVER TO BODY
SN# M-030662, ML-329959, E-108559, EL-418520 & UpGASKET, COVER TO BODY
SN# M-030662, ML-329959, E-108559, EL-418520 & Up -
727-43095M GASKET, COVER TO BODY
SN# M-030661, ML-329958, E-108558, EL-418519 & BelowGASKET, COVER TO BODY
SN# M-030661, ML-329958, E-108558, EL-418519 & Below -
884141M DIAPHRAGMDIAPHRAGM
-
980607M COVERCOVER
-
1010-82522M SCREWSCREW
-
1113-82186M WASHERWASHER
-
1210-41889M SCREW, (M3 x 5)SCREW, (M3 x 5)
-
1311-82537M NUTNUT
-
1427-80757 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
1510-827043M BOLTBOLT
-
1612-82214M WASHERWASHER
-
-27-96658M GASKET SETGASKET SET
