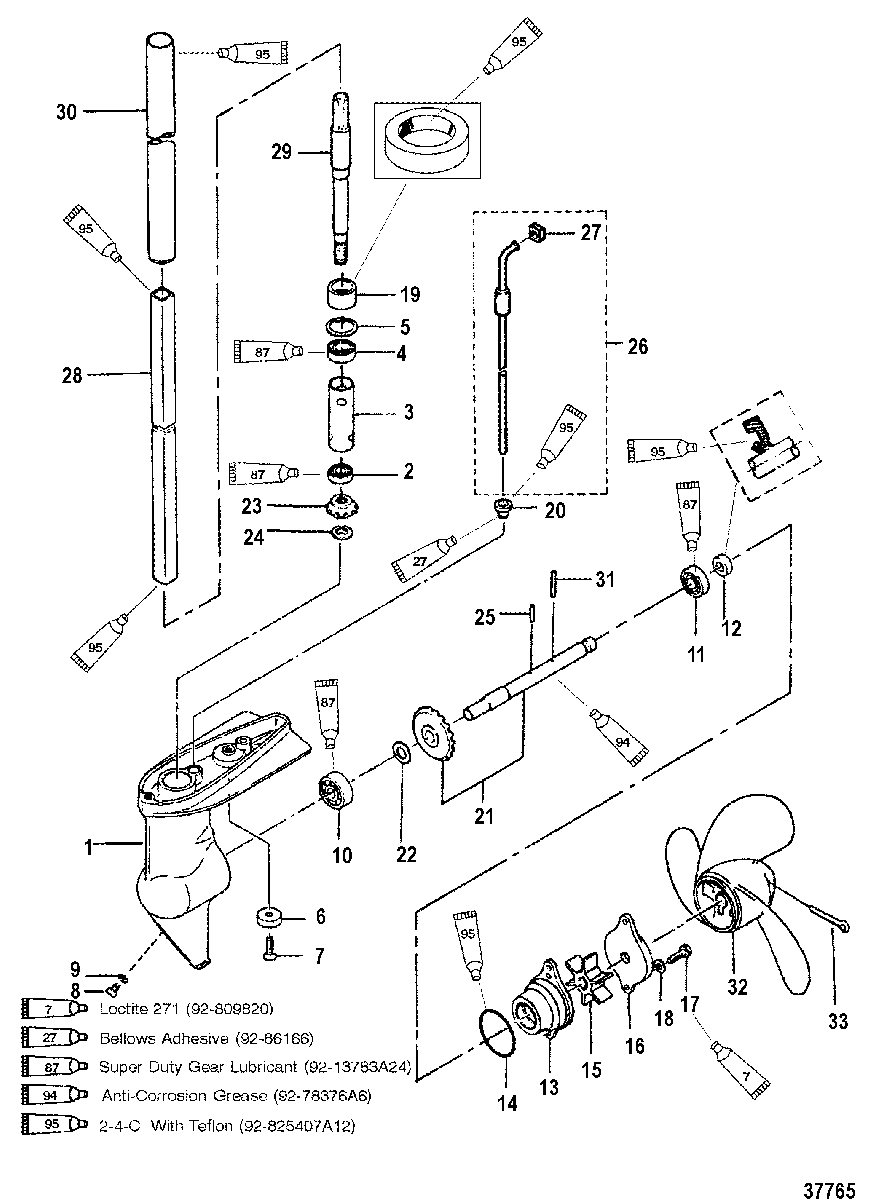

GEAR HOUSING ASSEMBLY(NON-SHIFT) для Mariner - 3.3 0D901217 THRU 0G710612
-
№АртикулНазвание
-
-1668-825122A2 GEAR HOUSING ASSEMBLY, Complete
(BLACK)GEAR HOUSING ASSEMBLY, Complete
(BLACK) -
-1668-825123A3 GEAR HOUSING ASSEMBLY
(GRAY)GEAR HOUSING ASSEMBLY
(GRAY) -
11668-825122T1 GEAR HOUSING ASSEMBLY
(BLACK)GEAR HOUSING ASSEMBLY
(BLACK) -
11668-825123A1 GEAR HOUSING ASSEMBLY
(GRAY)GEAR HOUSING ASSEMBLY
(GRAY) -
230-95342 BEARING, Ball (LOWER)BEARING, Ball (LOWER)
-
323-95343 SPACERSPACER
-
430-95344 BEARING, Ball (UPPER)BEARING, Ball (UPPER)
-
553-95345 RING, SnapRING, Snap
-
697-823913Q ANODEANODE
-
710-16832 BOLT, (M6 x 16)BOLT, (M6 x 16)
-
822-953683 SCREW, DrainSCREW, Drain
-
98M0082880 GASKETGASKET
-
1030-95347 BEARINGBEARING
-
1130-95344 BEARING, BallBEARING, Ball
-
1226-95348 SEAL, OilSEAL, Oil
-
1346-952871 PUMP, Water
(BLACK)PUMP, Water
(BLACK) -
1346-8150782 PUMP, Water
(GRAY)PUMP, Water
(GRAY) -
1425-95288 O-RINGO-RING
-
1547-952892 IMPELLERIMPELLER
-
16825114 COVER
(BLACK)COVER
(BLACK) -
16825115 COVER
(GRAY)COVER
(GRAY) -
1710-16705 BOLTBOLT
-
1710-167051 BOLT, (M6 x 20)BOLT, (M6 x 20)
-
1812-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
1926-95350 SEAL, OilSEAL, Oil
-
2023-95361 BUSHING (LOWER)BUSHING (LOWER)
-
2144-95291A1 PROPELLER SHAFT (WITH BEVEL GEAR)PROPELLER SHAFT (WITH BEVEL GEAR)
-
2215-811647A1 SHIMSHIM
-
2343-95293 GEAR, PinionGEAR, Pinion
-
2453-815066 RING, SnapRING, Snap
-
2528-95371 KEYKEY
-
2632-95359 TUBE ASSEMBLY, Water
(SHORT)TUBE ASSEMBLY, Water
(SHORT) -
2632-953593 TUBE ASSEMBLY, Water
(LONG)TUBE ASSEMBLY, Water
(LONG) -
2725-953601 GROMMET (UPPER)GROMMET (UPPER)
-
2845-95290 DRIVESHAFT
(UPPER) (SHORT)DRIVESHAFT
(UPPER) (SHORT) -
2845-952903 DRIVESHAFT
(UPPER) (LONG)DRIVESHAFT
(UPPER) (LONG) -
2945-95369 DRIVESHAFT
(LOWER)DRIVESHAFT
(LOWER) -
3095277 PIPE
(SHORT)PIPE
(SHORT) -
30952772 PIPE
(LONG)PIPE
(LONG) -
3117-815111Q02 SHEAR PIN, Stainless Steel
(ALUMINUM PROP)SHEAR PIN, Stainless Steel
(ALUMINUM PROP) -
3117-815111Q02 PIN, Brass
(PLASTIC PROP)PIN, Brass
(PLASTIC PROP) -
3248-815083A01 PROPELLER, (3 x 7.4 x 5.7)(Plastic)
(PLASTIC)PROPELLER, (3 x 7.4 x 5.7)(Plastic)
(PLASTIC) -
3248-815084A01 PROPELLER, Aluminum (3 x 7.4 x 6)
(STANDARD)PROPELLER, Aluminum (3 x 7.4 x 6)
(STANDARD) -
3248-815084A02 PROPELLER, Aluminum (3 x 7.4 x 7)
(WITH RUBBER HUB)PROPELLER, Aluminum (3 x 7.4 x 7)
(WITH RUBBER HUB) -
3318-95295 COTTER PINCOTTER PIN
-
-27-8M0082878 GASKET SET, Lower UnitGASKET SET, Lower Unit
