CD Ignition для Mariner - 3.3 0T894577 & Up
-

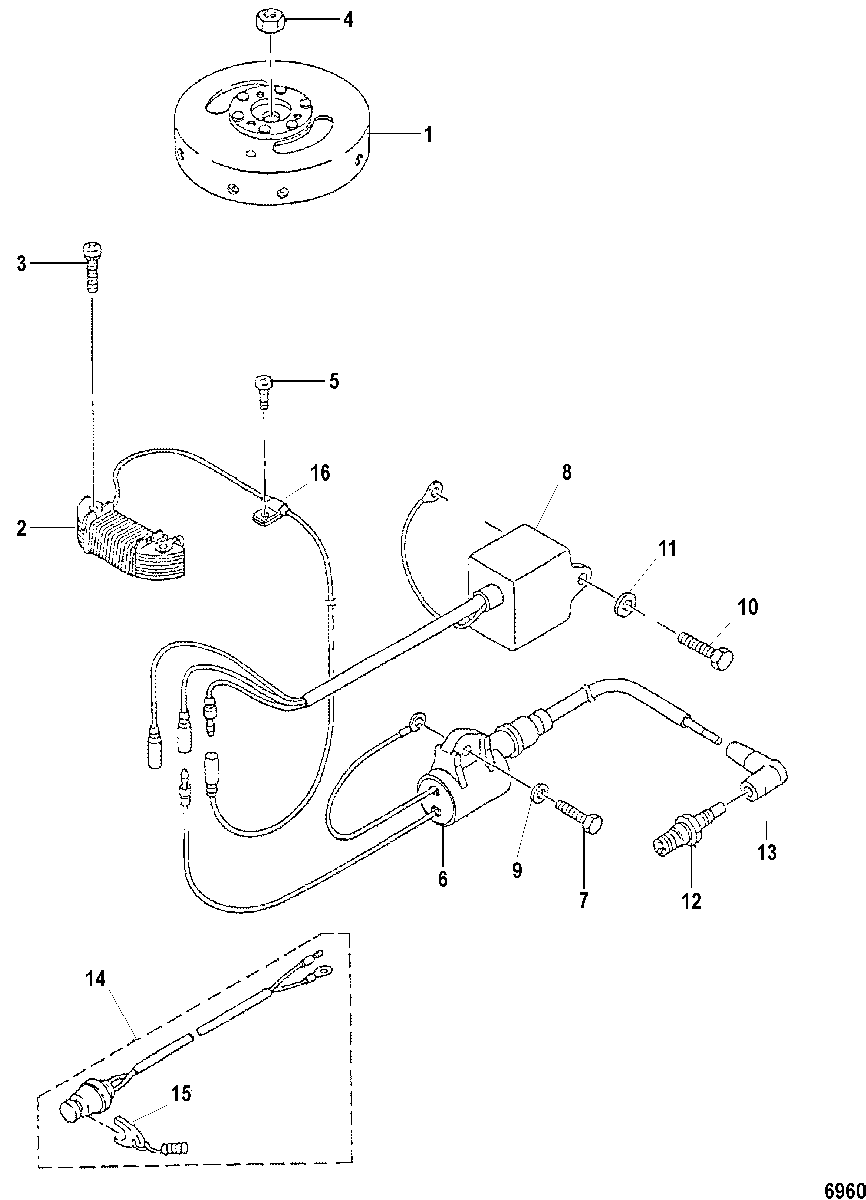

№АртикулНазвание
-
-262-822899A1 FLYWHEEL MAGNETO ASSEMBLYFLYWHEEL MAGNETO ASSEMBLY
-
1262-822899 FLYWHEELFLYWHEEL
-
2823030T1 COIL, ExciterCOIL, Exciter
-
310-16059 SCREWSCREW
-
411-95233 NUTNUT
-
510-823031 SCREWSCREW
-
6823033 COIL, IgnitionCOIL, Ignition
-
710-16705 BOLTBOLT
-
8823034T CD UNITCD UNIT
-
912-953921 WASHER, Stainless SteelWASHER, Stainless Steel
-
1010-16832 BOLT, (M6 x 16)BOLT, (M6 x 16)
-
1112-953921 WASHER, Stainless SteelWASHER, Stainless Steel
-
1233-8M0114743 SPARK PLUG
NGK#BP6HS-10SPARK PLUG
NGK#BP6HS-10 -
1233-19796 SPARK PLUG
NGK#BPR6HS-10-With ResistanceSPARK PLUG
NGK#BPR6HS-10-With Resistance -
1385-855543 BOOT, With ResistanceBOOT, With Resistance
-
1487-823037A04 SWITCH ASSEMBLY, Emergency StopSWITCH ASSEMBLY, Emergency Stop
-
15823054 LANYARDLANYARD
-
1654-160601 CLAMPCLAMP
