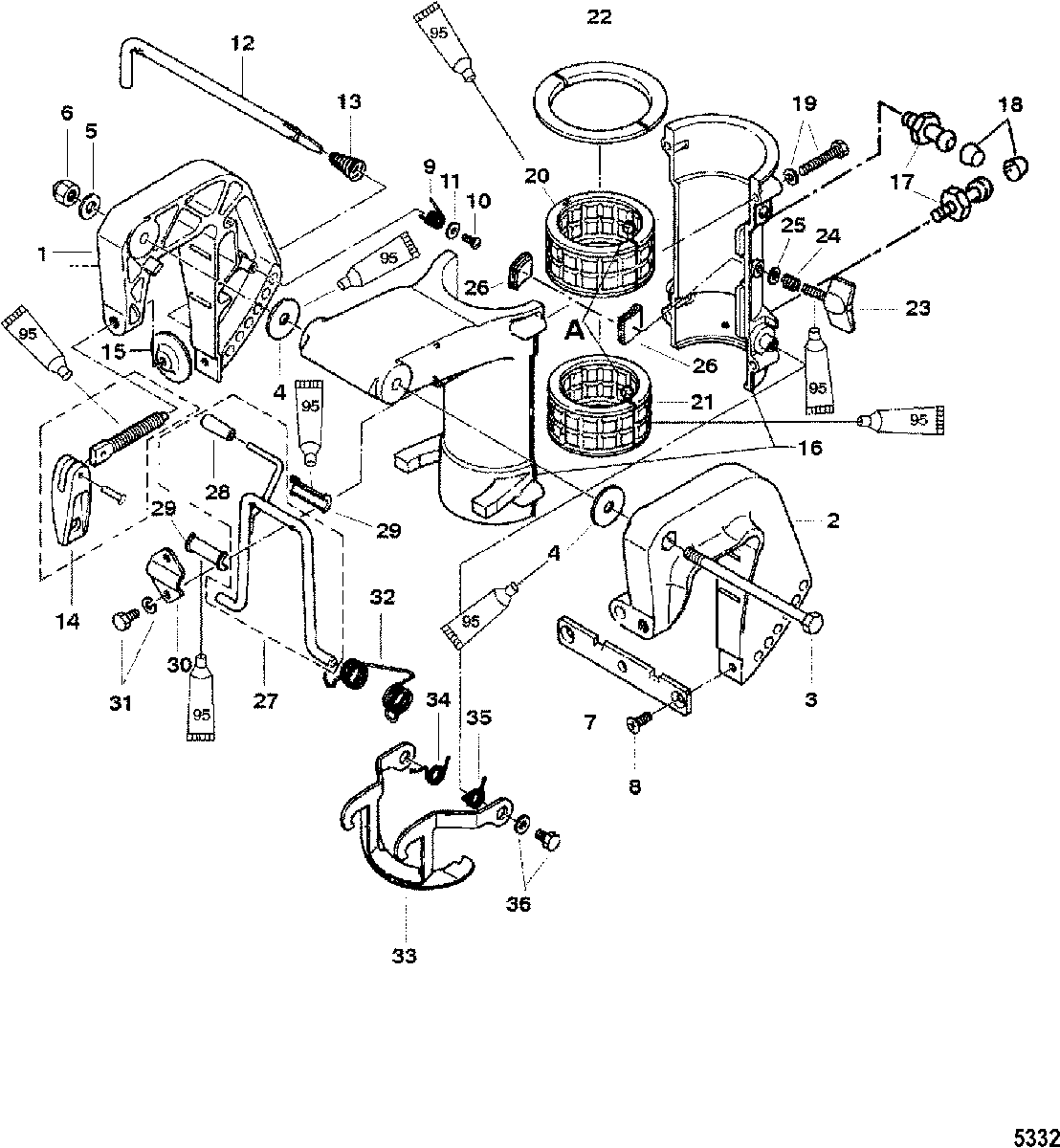

Clamp and Swivel Brackets для Mariner - 4 (2-STROKE) 0G710613 THRU 0T894438
-
№АртикулНазвание
-
13406-9622T6 CLAMP BRACKET, Starboard
(STARBOARD)CLAMP BRACKET, Starboard
(STARBOARD) -
23406-96231 CLAMP BRACKET, Port
(PORT)CLAMP BRACKET, Port
(PORT) -
310-898101337 BOLTBOLT
-
412-95375 WASHERWASHER
-
512-16192 WASHERWASHER
-
611-815088 NUT, (M8)NUT, (M8)
-
716193 DISTANCE PLATEDISTANCE PLATE
-
810-16194 SCREWSCREW
-
924-161951 SPRINGSPRING
-
1010-16196 SCREWSCREW
-
1112-16197 WASHERWASHER
-
1216198004 THRUST RODTHRUST ROD
-
1324-815093003 SPRINGSPRING
-
1410-8M0075060 CLAMP SCREW ASSEMBLYCLAMP SCREW ASSEMBLY
-
1512-95379 PADPAD
-
163407-813029T1 SWIVEL BRACKETSWIVEL BRACKET
-
1722-824969 FITTING, GreaseFITTING, Grease
-
18808599 CAP
(Use where Applicable)CAP
(Use where Applicable) -
1910-8M0098606 BOLTBOLT
-
2023-8M0057473 BUSHING (UPPER)BUSHING (UPPER)
-
2123-8M0057474 BUSHING (LOWER)BUSHING (LOWER)
-
2216204 THRUST PLATETHRUST PLATE
-
2310-162061 SCREW, AdjustingSCREW, Adjusting
-
2424-953838 SPRINGSPRING
-
2512-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
26162051 FRICTION PLATEFRICTION PLATE
-
278M0045584 STOP ASSEMBLY, TiltSTOP ASSEMBLY, Tilt
-
288M0090337 GRIPGRIP
-
29825113 BUSHINGBUSHING
-
3016210002 SET PLATESET PLATE
-
3110-162111 BOLTBOLT
-
3224-16212 SPRINGSPRING
-
3316213 ARM, Reverse LockARM, Reverse Lock
-
3424-16215 SPRING
(RIGHT)SPRING
(RIGHT) -
3524-16216 SPRING
(LEFT)SPRING
(LEFT) -
3610-82304223 BOLTBOLT
