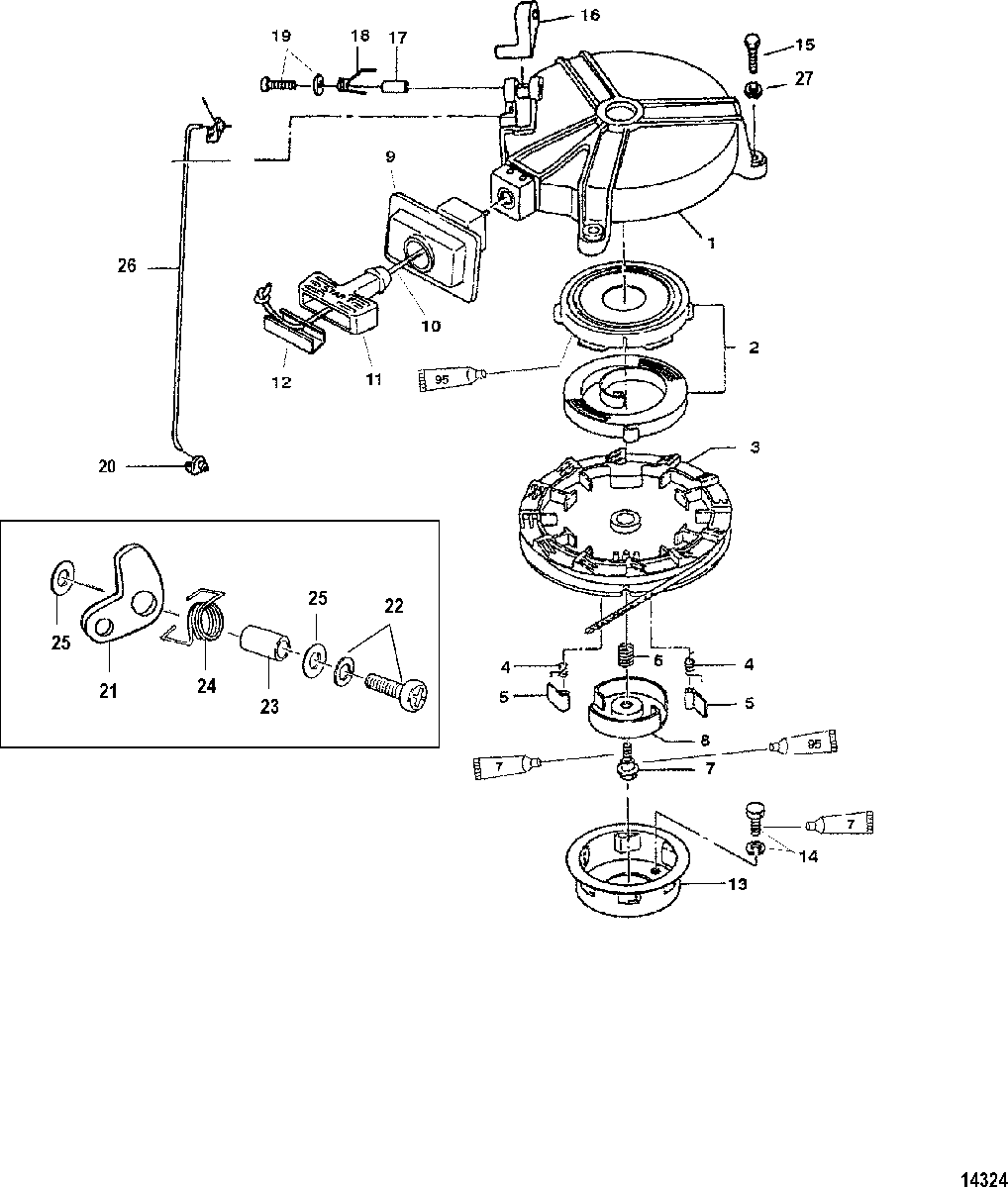

Recoil Starter для Mariner - 4 (2-STROKE) 0T894439 & Up
-
№АртикулНазвание
-
-803576T02 STARTER ASSEMBLY, RecoilSTARTER ASSEMBLY, Recoil
-
1812632002 HOUSING, StarterHOUSING, Starter
-
224-812645T SPRING SET, StarterSPRING SET, Starter
-
3812633 SHEEVE, StarterSHEEVE, Starter
-
424-812634 SPRING, ReturnSPRING, Return
-
58M0060217 RATCHETRATCHET
-
624-812636 SPRING, FrictionSPRING, Friction
-
710-8M0060218 BOLTBOLT
-
8812638 FRICTION PLATEFRICTION PLATE
-
9161101 PLATE, SealPLATE, Seal
-
108M0110704 ROPEROPE
-
11812640 HANDLE, Starter RopeHANDLE, Starter Rope
-
12812641 RETAINERRETAINER
-
13812642 PULLEY, StarterPULLEY, Starter
-
1410-168281 SCREW AND LOCKWASHERSCREW AND LOCKWASHER
-
1510-810755 SCREWSCREW
-
1617634 LOCK, StarterLOCK, Starter
-
1723-895130 COLLARCOLLAR
-
1824-812645007 SPRINGSPRING
-
1910-8555449 SCREWSCREW
-
20176431 SNAP, Link RodSNAP, Link Rod
-
218126431 LOCK CAM, StarterLOCK CAM, Starter
-
2210-804364 SCREWSCREW
-
2323-804365 COLLARCOLLAR
-
2424-804366 SPRINGSPRING
-
2512-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
2617642001 RODROD
-
2713-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
